The Omron C200H programmable logic controller was once a backbone of industrial automation across factories worldwide. Officially discontinued by Omron for years now, maintenance engineers supporting these legacy systems face a cold reality: spare parts are drying up, support documentation is scattered, and plant managers are pushing for upgrades. If you are still running a C200H on your production floor — and many are — this guide is for you. We cover battery replacement without losing your program, programming cable pinouts, software compatibility, current module availability, and a realistic migration path to the CJ-series.

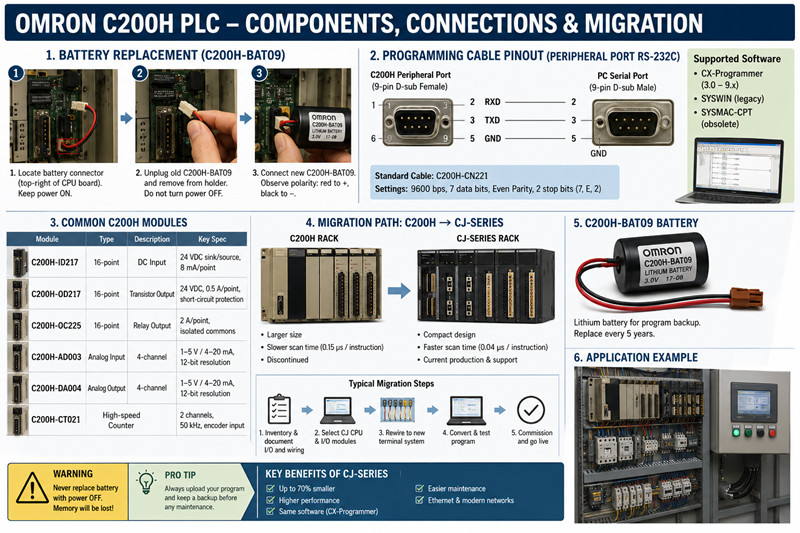

1. Battery Replacement: C200H-BAT09 and How to Swap Without Losing the Program

The C200H uses a lithium backup battery (Omron part number C200H-BAT09) to retain the user program and memory in the CPU when main power is off. Typical battery life is 5 years under normal ambient conditions. When the battery voltage drops, the CPU's ALARM LED flashes or the "BAT LOW" indicator appears on the programming console. Replace it promptly — a dead battery during a plant shutdown means a blank CPU on restart.

Where to buy: The C200H-BAT09 is discontinued by Omron but still available from specialty automation distributors and surplus suppliers. At tztechio.com, we stock genuine Omron C200H-BAT09 units. Avoid generic lithium cells that lack the connector and voltage regulator; an off-spec battery can leak or overheat inside the CPU housing.

Step-by-step replacement procedure:

1. Power on the PLC and connect a programming tool (handheld programmer or CX-Programmer via cable).

2. Upload the entire program to your programming software and save a backup to disk.

3. Keep main power ON throughout the swap — this powers the RAM from the power supply, not the battery.

4. Open the CPU front cover. Locate the battery connector on the top-right of the main board.

5. Gently unplug the old C200H-BAT09 connector. Remove the battery from its holder.

6. Insert the new C200H-BAT09 and plug the connector firmly. Observe polarity: red wire to +, black wire to —.

7. Close the cover. Verify on the programming tool that memory is intact. Clear the battery error flag if needed (CX-Programmer: in PLC status, click "Clear Battery Error").

8. Record the replacement date on the label inside the CPU door.

Critical warning: Never replace the battery with power off. Even the supercapacitor backup on some C200H CPU revisions drains within 20 minutes. If power removal is unavoidable, you must restore power within 60 seconds of battery disconnect.

2. Programming Cable & Software: Cable Pinout and CX-Programmer Compatibility

Programming the C200H requires a peripheral cable and compatible software. The standard connection is RS-232C via the peripheral port (a 9-pin D-sub female on the CPU or an optional peripheral port adapter).

Cable types and pinout:

· C200H-CN221 (Omron original): Connects the C200H peripheral port to a 9-pin RS-232 serial port on a PC. Pinout: 2→2 (RXD), 3→3 (TXD), 5→5 (GND). No handshaking lines needed for most operations.

· USB-to-RS232 adapters: These work if the adapter uses a genuine FTDI or Prolific PL2303 chipset. Avoid cheap knockoffs — they introduce transmission errors that can corrupt the program during upload/download.

· CQM1-CIF02 (peripheral-to-RS232 adapter): Required if your C200H CPU has the older 8-pin round peripheral connector. Use this adapter plus a standard straight-through RS-232 cable.

Software options:

· CX-Programmer (version 3.0 through 9.x): Fully supports the C200H. Newer CX-Programmer versions (9.5 and later) run on Windows 10/11 but require the legacy driver mode. Set the PLC model to "C200H" and the network type to "SYSMAC WAY" or "Toolbus."

· SYSWIN (older Omron software): Works but is limited to very old Windows versions. Not recommended.

· SYSMAC-CPT: Covers C200H programming but is obsolete. Only use if you already have a license.

· Software download: CX-Programmer is still sold by Omron under the FA Integrated Tool Package. No free version exists. Some third-party sites offer "trial" versions — these are often malware. Purchase licensed software or work with a distributor that provides a license bundle.

Communication settings: 9600 baud, 7 data bits, even parity, 2 stop bits (7, E, 2) — this is the default C200H SYSMAC WAY protocol. CX-Programmer auto-detects these settings in most cases.

3. Common Module Reference: ID217, OD217, and Other I/O Modules

Despite the C200H being discontinued, many I/O modules remain available through surplus channels. The most requested modules are:

Module | Type | Description

C200H-ID217 | 16-point DC input | 24 VDC sink/source, 8 mA per point, removable terminal block

C200H-OD217 | 16-point transistor output | 24 VDC, 0.5 A per point, short-circuit protection

C200H-OC225 | 16-point relay output | 2 A per point, isolated commons, replaceable relays

C200H-AD003 | Analog input module | 4-channel, 1–5 V / 4–20 mA, 12-bit resolution

C200H-DA004 | Analog output module | 4-channel, 1–5 V / 4–20 mA, 12-bit resolution

C200H-CT021 | High-speed counter | 2 channels, 50 kHz, encoder input

Availability: C200H-ID217 and C200H-OD217 are the highest-demand modules because DC I/O racks endure the most electrical stress in the field. We regularly replenish stock of both. Relay output modules (OC225) are also popular in older conveyor and packaging lines that do not need high-speed switching.

What to check before buying used modules:

· Inspect the backplane connector pins for bending or corrosion.

· Test the LED indicators with a 24 VDC source on inputs.

· For analog modules, request a calibration report or test values.

4. Migration Path: C200H → CJ-Series – What to Consider

Eventually, every C200H installation reaches a point where a module fails, spare parts cost more than a new PLC, or the plant loses a qualified programmer. The natural upgrade path is the Omron CJ-series (CJ1, CJ2, or the newer NJ/NX series for motion control).

Why CJ-series?

· Same programming environment (CX-Programmer) — your engineers do not need retraining.

· Significantly faster scan times (0.04 μs per basic instruction vs. 0.15 μs on C200H).

· Compact footprint — up to 70% smaller than a C200H rack.

· Current production, full warranty, and global support.

Wiring compatibility — the hard truth:

C200H and CJ-series I/O modules use different backplane architectures and connectors. You cannot simply pull a C200H-ID217 out of the old rack and plug it into a CJ-series base. The wiring must be re-terminated or adapted.

Practical migration steps:

9. Inventory your rack: Document every module, slot position, and terminal assignment. Create a wiring map.

10. Choose a CJ-series CPU based on I/O count and program size. A CJ2M-CPU31 handles most mid-sized C200H replacements. For larger installations, the CJ2H-CPU64 provides 160K steps and Ethernet/IP.

11. Select I/O modules: The CJ-series uses CJ1W-* modules (e.g., CJ1W-ID211 replaces C200H-ID217 function; CJ1W-OD211 replaces OD217). They offer the same electrical characteristics in a smaller form factor.

12. Rewrite the program — do not attempt a direct conversion. The CJ-series instruction set is a superset of the C200H, but addressing is different (I/O memory maps are completely restructured). CX-Programmer's "Convert PLC" tool is a starting point, but manual verification is mandatory.

13. Panel rework: The CJ-series uses a 32-point or 64-point terminal block system, not the C200H's individual module wiring. Plan for new terminal rail and wiring duct placement.

14. Commission offline: Test the new program on the CJ-series CPU with simulator mode before removing the old C200H from service.

Migration cost breakdown (typical 64-I/O system):

Item | Estimated Cost

CJ2M-CPU31 + power supply + 4-slot base | $650–$900

CJ1W I/O modules (equivalent to existing C200H I/O) | $100–$250 per module

Wiring labor (in-house, 16–24 hours) | $800–$1,800

Programming & commissioning | $500–$2,000

Total estimate | $2,050–$4,950

Compare this to the cost of a single failed C200H-OD217 during an unplanned outage, and the migration often justifies itself within one production cycle.

5. Pricing & Availability: Where to Find C200H Stock Now

C200H parts are no longer manufactured, so the market is purely aftermarket and surplus. Here is what you can expect:

· C200H-CPU01/03: $150–$300 (used, tested)

· C200H-BAT09 battery: $25–$45 (new old stock)

· C200H-ID217: $60–$120 (used, tested)

· C200H-OD217: $70–$150 (used, tested)

· C200H-OC225: $50–$100 (used, tested)

· C200H-AD003: $100–$200 (used, calibration required)

· C200H-RM001 (remote I/O master): $80–$180

At tztechio.com, we carry a curated stock of C200H modules, all bench-tested before listing. We also supply CJ-series systems at competitive prices for those ready to migrate. Check our PLC category and Omron section for current inventory.

Pro tip: If you are buying C200H spares to keep a line running for another 2–3 years, purchase at least one spare power supply (C200H-PS201 or PS221) per rack. Power supply capacitors age and fail more frequently than CPU boards.

6. FAQ – Real Questions from Buyers

Q: Can I use a standard CR17345 lithium battery instead of C200H-BAT09?

A: The cell is the same size (CR17345), but the C200H-BAT09 includes a pre-attached connector with polarity-specific housing and a voltage regulator circuit. A bare cell without the regulator can damage the CPU board. Use the genuine part.

Q: Does CX-Programmer work on Windows 10 with the C200H?

A: Yes, CX-Programmer version 9.5 and later runs on Windows 10/11 64-bit. You must install the legacy USB/serial drivers in compatibility mode. If using a USB-to-RS232 adapter, install the adapter driver before connecting the PLC.

Q: My C200H-OD217 outputs are stuck ON. Is the module bad or the CPU?

A: First check if the output load is within the 0.5 A per-point limit. Overload kills the output transistor in a shorted state. Swap the module to a different slot; if the problem follows the module, replace it. If it stays on the same slot address, troubleshoot the CPU output table.

Q: What cable do I need for a C200H CPU with an 8-pin round port?

A: You need a CQM1-CIF02 peripheral-to-RS232 adapter plus a standard DB9 straight-through serial cable. Alternatively, the CS1W-CIF31 USB adapter (with 8-pin round connector) works on newer PCs that lack serial ports.

Q: Is the C200H still supported by Omron for technical support?

A: Omron no longer provides phone or email support for the C200H series. Your best resources are distributor technical teams, automation forums (PLCTalk.net, MrPLC.com), and our support line at tztechio.com for module-specific questions.

Q: Can I mix C200H and CJ-series modules on the same backplane?

A: No. The backplane bus architecture is completely different. Migration requires replacing the entire rack. However, you can keep the C200H running alongside a new CJ-series rack using a serial or Ethernet link in the same control panel during phased migration.

------------------------------------------------------------------------------------------------------------------
