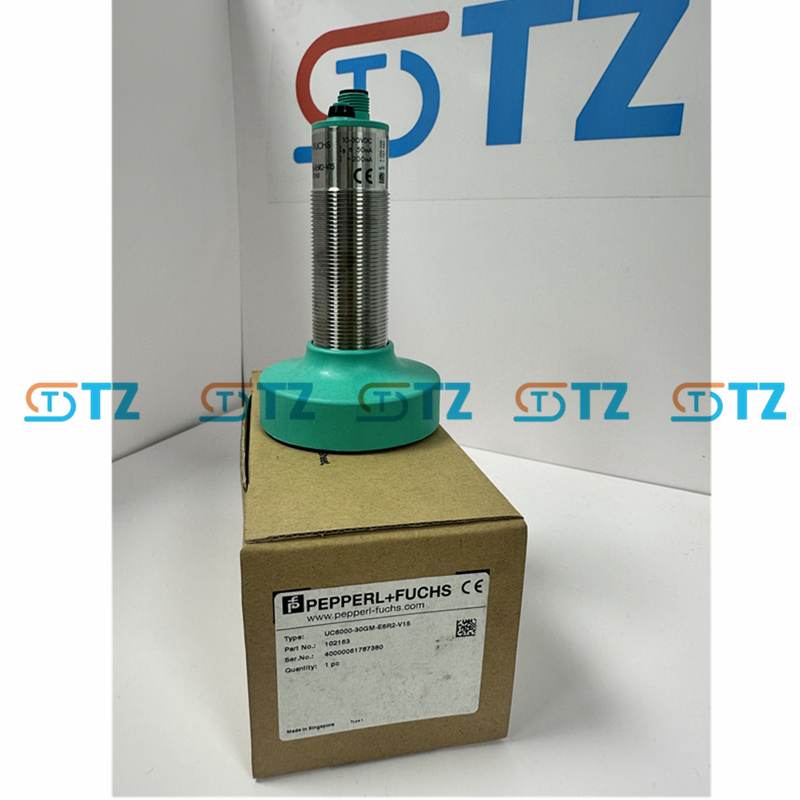

UC6000-30GM-E6R2-V15 ULTRASONIC SENSOR
The UC6000-30GM-E6R2-V15 is an ultrasonic sensor produced by Pepperl+Fuchs, featuring a single-head system design and suitable for non-contact distance detection in industrial automation.
HS CODE : 8428909090
Product No :
UC6000-30GM-E6R2-V15Manufacture :
Pepperl FuchsSize (cm) :
NONEWeight (kg) :
0.18Origin :
SingaporeWarranty :
12 MonthLead Time :
Ready StockDescription :
ULTRASONIC SENSORProduct parameter model: UC6000-30GM-E6R2-V15
Manufacturer: Pepperl+Fuchs
Sensor type: Ultrasonic sensor
Supply voltage: 10-30 VDC
Detection range: 350 mm to 6000 mm
Adjustment range: It can be adjusted through the learning plugin (30GM) or the DIL switch (U9)
Output type: 2 programmable PNP digital outputs (normally open/normally closed optional)
Connection method: M12 (5-pin) connector
Protection grade: IP65
Operating temperature: -25°C to +70°C
Ultrasonic frequency: approximately 65 kHz
Shell material: Stainless steel 1.4305 / AISI 303 (shell), epoxy resin/hollow glass sphere mixture/polyurethane foam.
Function
Parameterized interface: Application-specific adjustments are made through the ULTRA 3000 service program
Output mode: Supports selectable lag mode and window mode
Synchronization option: Allows multiple sensors to operate synchronously to avoid interference
Adjustable sound power and sensitivity: Adaptable to different environments and target objects
Temperature compensation: Ensures measurement stability under different temperature conditions
Programmable switch output: 2 PNP outputs, which can be freely programmed as switch point or window operation
Application scenarios
Industrial automation: It is used for detecting the presence of objects, distance measurement or location monitoring, such as object detection on conveyor belts
Material handling: Monitor the stacking height or container filling level
Packaging industry: Check the position or integrity of packaging materials
Automobile manufacturing: used for robot navigation or part positioning
Logistics and warehousing: For shelf management or path detection of automated guided vehicles (AGVs)
Others: It is suitable for scenarios that require long-distance (350-6000 mm) non-contact detection, especially in harsh environments
