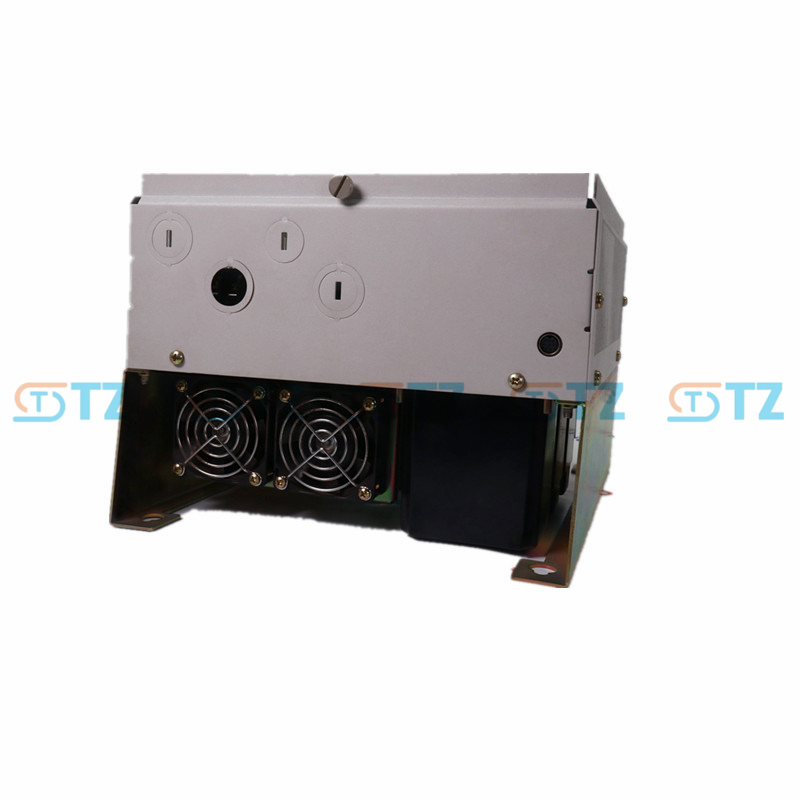

1336F-BRF100-AA-EN Allen-Bradley 1336 Plus II Adjustable Frequency AC Drive
1336F-BRF100-AA-EN is an adjustable frequency AC drive manufactured by Allen-Bradley.
HS CODE : 8538909200
Product No :
1336F-BRF100-AA-EN 1336FBR100AAENManufacture :
Allen BradleySize (cm) :
25 * 20 * 33Weight (kg) :
11Origin :
USAWarranty :
12 MonthLead Time :
Ready StockDescription :
Frequency DriveProduct parameters
Input voltage: 380-480V AC, three-phase (the typical voltage range supported by the 1336 PLUS II series).
Output power: Approximately 7.5 kW (10 HP).
Frequency range: 0-400 Hz (output frequency, typically used to control motor speed).
Input frequency: 50/60 Hz.
Current: The rated output current is approximately 15-20 A.
Efficiency: Usually >95% (typical VFD efficiency).
Protection grade: NEMA 1 (IP20), suitable for indoor environments. It is necessary to avoid damp or dusty places.
Interface and Control
Control mode: Supports vector control and V/Hz control (features of the 1336 PLUS II series).
Communication interface: Supports RS-232/RS-485 or other industrial protocols (such as DeviceNet).
Operation panel: Equipped with digital display and buttons, it is used for parameter setting and status monitoring.
Environmental conditions:
Operating temperature: 0-40°C (no condensation).
Storage temperature: -40°C to 70°C.
Humidity: 5-95% (non-condensing).
Function
Motor speed control
Precise speed control of three-phase asynchronous motors is achieved by adjusting the output frequency and voltage.
Supports V/Hz control (scalar control) and sensorless vector control, suitable for various load types.
High-performance driver
It provides rapid dynamic response and is suitable for applications that require quick start-stop or load changes.
Overload capacity: 150% rated current for 60 seconds, 200% rated current for 3 seconds (typical values, to be confirmed).
Protection function:
It is equipped with built-in protection mechanisms such as overvoltage, undervoltage, overcurrent, overload and overheating to ensure the safety of the motor and driver.
Short-circuit protection and ground fault detection.
Programmable control
Supports multi-speed control and PID control (for closed-loop applications, such as pressure or flow control).
Parameters can be set and remotely monitored through an external PLC or upper computer.
User-friendly interface
Equipped with an LCD display screen and buttons, it is convenient for parameter configuration and fault diagnosis.
Supports multiple languages (this model is the English version).
Communication and Integration
Optional communication module, supporting integration with industrial automation systems (such as Allen-Bradley PLC or other control systems).
Typical protocols include DeviceNet, ControlNet or Modbus (depending on the configuration).
Energy-saving function: By optimizing the operating efficiency of the motor and reducing energy consumption, it is suitable for industrial equipment that operates for a long time.
Application scenarios
Industrial Automation
Pump control: It is used for flow and pressure control of water pumps, oil pumps or chemical pumps, and is commonly found in water treatment and petrochemical industries.
Fan system: Adjust the rotational speed of the fan to optimize air flow, and it is applied in HVAC systems or industrial ventilation.
Conveyor belt: Controls the speed of the conveyor belt and is suitable for manufacturing, logistics and packaging industries.
Manufacturing industry
Motors used to control machine tools, mixers, compressors and other equipment to ensure efficient production and precise processing.
It is suitable for automated production lines that require frequent start-stop or speed change.
HVAC system: In commercial buildings or factories, it is used to control the motors of heating, ventilation and air conditioning systems, optimizing energy consumption and comfort.
Water treatment and environmental protection: Applied to pumping stations or aeration systems in sewage treatment plants, it reduces energy consumption and enhances system stability through variable frequency control.
Material handling: Used for cranes, elevators or material handling equipment, providing smooth start and stop as well as precise speed control.
