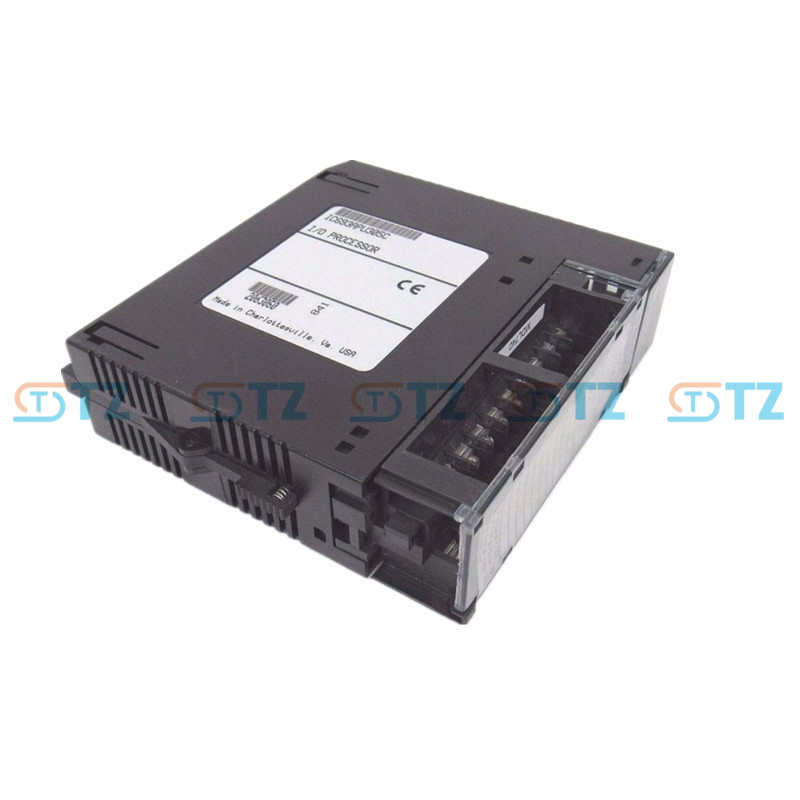

IC693APU305 GE Fanuc 90-30 I/O Processor Module

Product parameters

Processor performance

Instruction processing speed: Basic logic instructions are approximately 0.06µs per instruction. The floating-point operation speed has been increased by more than 30% compared to the previous generation APU302, enabling efficient handling of concurrent multi-task operations.

User memory: 1MB (program memory) + 1MB (data memory), supports expansion to 4MB via IC693MEM361 external memory card, meeting the storage requirements of ultra-large-scale programs and massive data.

Communication interface

1 RS-232C port (for programming/debugging, with a maximum rate of 230.4kbps, supporting ASCII and Modbus ASCII protocols).

1 RS-485 port (supporting Modbus RTU master/slave mode, with a rate of 9.6kbps to 230.4kbps, and up to 64 slave stations can be connected).

One dedicated expansion slot: Compatible with IC693CMM311 Gigabit Ethernet module and IC693PBM210 PROFIBUS-DP module, supporting high-speed industrial network communication.

I/O expansion capability

It supports up to 5 extended I/O racks (requiring an IC693BEM331 baseboard), with a maximum total I/O point count of 2048 (digital) or 512 (analog), and is compatible with all types of 90-30 series modules (high-speed counting, PID, servo control modules, etc.).

Power Supply and Environment

Power supply: Relies on the 90-30 system power module (such as IC693PWR331/340), with a backplane bus input of 5VDC and a power consumption of approximately 1.0A.

Operating temperature: 0℃ to 60℃ Storage temperature: -40℃ to 85℃ Protection grade IP20 (to be installed in the control cabinet).

Function

Ultra-high performance computing: The combination of 1MB of super-large memory and high-speed processor enables the simultaneous operation of multiple complex control programs (such as logic control, multi-loop PID, and motion synchronization control), making it suitable for scenarios that require high-frequency data processing (such as real-time process parameter calculation and equipment status monitoring).

High-speed communication capability: The RS-485 port rate has been increased to 230.4kbps. Combined with the expansion of the Gigabit Ethernet module, it can achieve high-speed data interaction with MES systems and cloud monitoring platforms, meeting the requirements of remote control and data traceability in the context of Industry 4.0.

Large-scale I/O management: Supports 5 expansion racks and over 2,000 I/O points, capable of centrally managing all sensor and actuator signals of large-scale production lines, reducing system complexity and lowering cabling costs.

High reliability and maintainability: Built-in dual hardware self-diagnosis (module failure, communication anomaly), supporting program breakpoint debugging and online modification; The data memory supports automatic backup, enabling quick system restoration and reducing downtime.

Application scenarios

Large-scale process industries: In petrochemicals and natural gas processing plants, multiple continuous production facilities (such as reactors, heat exchangers, and transfer pumps) are controlled to achieve precise closed-loop regulation of multiple variables (temperature, pressure, flow rate, and liquid level).

High-end manufacturing production lines: such as new energy vehicle battery assembly lines and semiconductor packaging and testing lines, coordinate the synchronous actions of dozens of precision equipment (robotic arms, detection instruments, servo conveying systems), handle high-speed pulse signals and precise positioning requirements.

Industrial Internet of Things (IIoT) integration: As the control core at the workshop level, it connects to the edge computing gateway via Ethernet to collect the operation data of all workshop equipment and upload it to the cloud platform for remote monitoring and predictive maintenance.

Upgrade of old large-scale systems: It is used to replace the early low-performance cpus of the 90-30 series (such as APU300/301), enhancing the system's computing power and network scalability on the basis of compatibility with the original I/O modules, and extending the equipment's life cycle.
