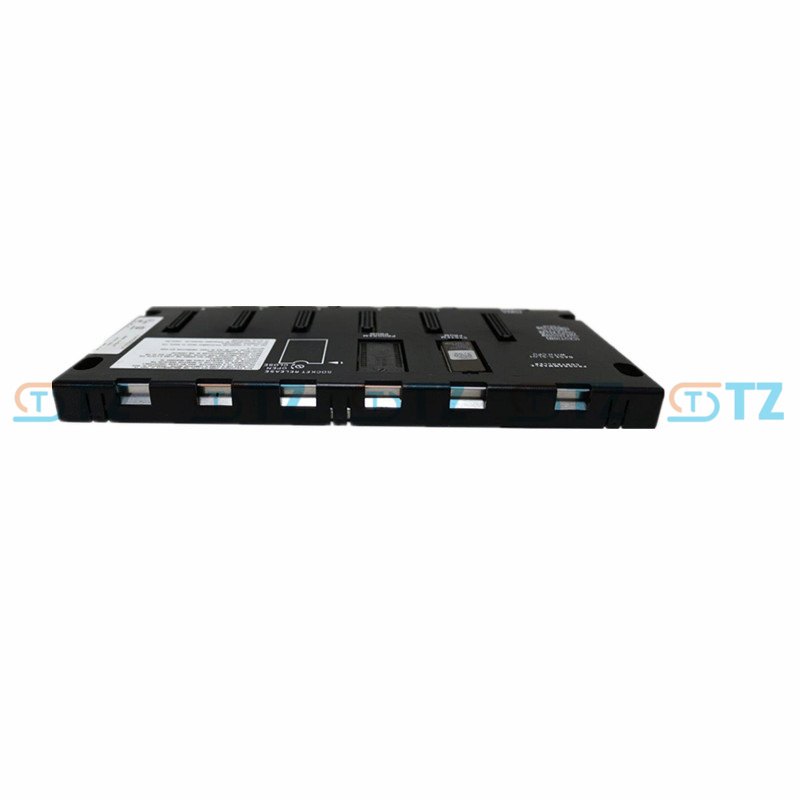

IC693CPU311 GE Fanuc 90-30 CPU Base

Product parameters

Module type: 5-slot embedded CPU baseboard module, compatible with Series 90-30

Processor: 80188, 16-bit, 10 MHz clock speed

User program memory: 6 KB

Register memory: 1 KB

I/O points: Discrete input/output: 160 points

Simulated input: 64 characters

Analog output: 32 characters

Scanning rate: 1K logic (Boolean contacts) Typical scanning time 18 ms

Floating-point operations: Not supported

Communication port: 1 built-in serial port (located on the power module), supporting SNP and SNP-X slave protocols

Power supply requirement: 5 VDC, 410 mA (from IC693PWR330 high-capacity power supply)

Power input: 120/240 VAC or 125 VDC

Memory backup: Supercapacitor, maintaining memory for approximately 1 hour after power failure (without clock)

Operating temperature: 0 to 60°C

Size: Standard Series 90-30 5-slot base plate size

Scalability: Does not support expansion or remote backplane

Function

Embedded CPU design: The CPU is soldered onto the base plate, fixed and non-replaceable, providing a compact 5-slot I/O configuration.

Discrete and analog I/O support: Supports up to 160 discrete I/O and 64/32 analog inputs/outputs, suitable for small control systems.

Serial communication: The built-in serial port of the power module supports SNP/SNP-X slave protocols, and the CMM or PCM module needs to support the master protocol or CCM/RTU.

LED indication: The leds (PWR, OK, RUN, BAT) on the power module display the CPU and system status, facilitating diagnosis.

Memory protection: Supercapacitors maintain memory for a short period when power is cut off or the battery is disconnected, and they have no built-in clock.

Modular compatibility: Supports I/O and option modules of Series 90-30, but not PCM and CCM devices.

Application scenarios

Small-scale industrial automation: Suitable for the control of small production lines with low I/O counts, such as packaging machines or small conveying systems.

Simple process control: Used for basic sensor and actuator control, such as temperature or pressure monitoring.

Equipment control: Controlling small machinery or equipment, such as pumps, fans or solenoid valves.

Entry-level PLC system: Providing cost-effective control solutions for applications with limited budgets.

Independent system: As it does not support the expansion base plate, it is suitable for independent control units that do not require expansion.
