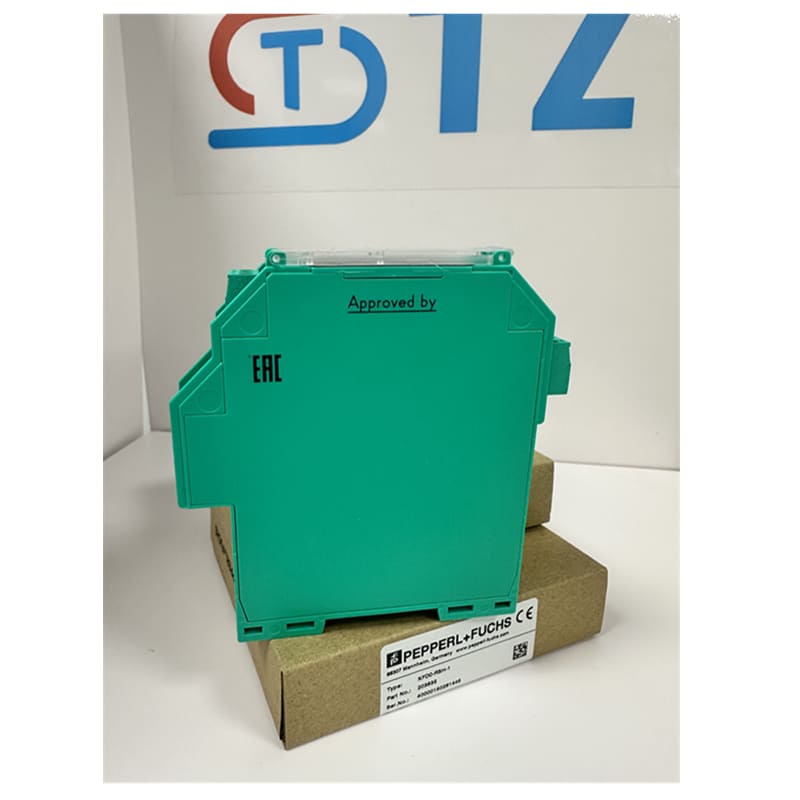

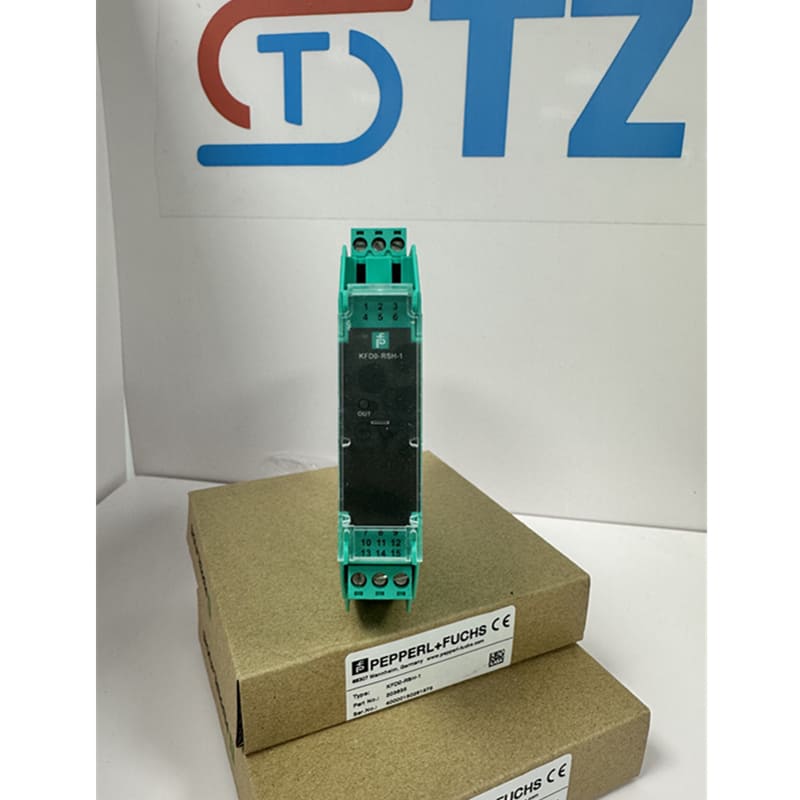

KFDO-RSH-1 Pepperl Fuchs SINGLE-CHANNEL RELAY MODULE
Pepperl+Fuchs KFDO-RSH-1 is a single-channel Relay Module, belonging to the K-System series of signal isolators and switching amplifiers.
HS CODE : 8428909090
Product No :
KFDO-RSH-1 Pepperl FuchsManufacture :
Pepperl FuchsSize (cm) :
11.2*11.5*2Weight (kg) :
0.135Origin :
SingaporeWarranty :
12 MonthLead Time :
Ready StockDescription :
RELAY MODULEProduct parameters
Number of channels: 1 channel
Supply voltage: 24 V DC (loop powered)
Input specification: Logic input, rated voltage 16 V DC to 20 V DC (typical value 19 V DC)
Output specification: Relay contact output, non-polar, rated voltage 20V DC to 30V DC (maximum 26.5V DC), Fail-safe design, supports de-energized and energized to safe functions
Certification and safety: Up to SIL 3 complies with IEC/EN 61508; System Capability SC 3 Test pulsed immunity; Intrinsic Safety design, suitable for Zone 1/2 hazardous area
Other parameters: Mounting DIN rail; The width of the shell is 20mm. Operating temperature range: -20°C to +60°C; Electromagnetic compatibility complies with EN 61326-1
Installation method: DIN rail (35mm)
Function
Signal isolation and conversion: Isolate the logic input signals in the hazardous area and convert them into relay outputs on the safety side, supporting single-channel independent processing.
Safety relay output: Fail-safe relay contact, providing energized to safe or de-energized function to ensure safe disconnection in case of fault.
Test pulse immunity: Resist the interference of PLC test pulses and enhance system reliability.
High safety level: Supports SIL 3 safety integrity, suitable for functional safety applications.
Easy installation and diagnosis: DIN rail installation, convenient for integration into the control cabinet; The LED indicates the status, facilitating fault diagnosis.
Application scenarios
Automation in hazardous areas: Used for logic signal transmission and switch control in explosive environments such as petrochemicals, pharmaceuticals, and oil refineries.
Safety Instrumented System (SIS) : In process industries, it realizes emergency shutdown (ESD) and safety interlock (SLS) to ensure compliance with SIL requirements.
Application of switch amplifiers: Amplify and isolate switch signals, used in valve control, pump start/stop or alarm systems.
Industrial process control: Integrated into DCS/PLC systems, it provides electrical isolation to protect safety-side equipment from faults on the hazardous side
