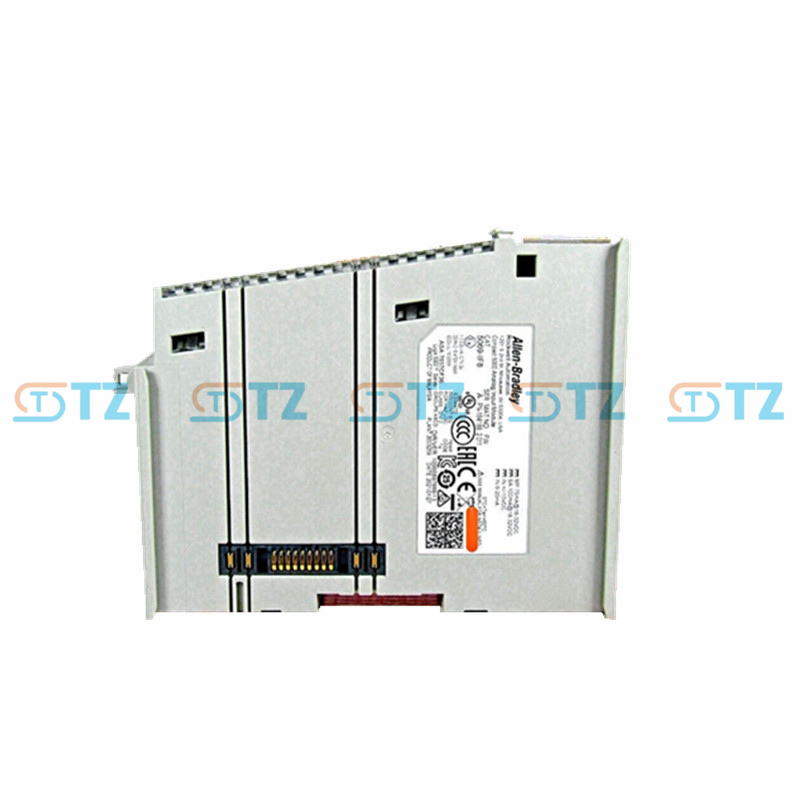

5069-IF8 Allen Bradley Rockwell Compact I/O 8 Channel Voltage/Current Analog Input Module

Product Parameters

Model: 5069-IF8

Type: Compact 5000 Analog Input Module

Input Channels: 8 differential, non-isolated inputs

Input Types:

Voltage: ±10V, 0–10V, 0–5V

Current: 0–20 mA, 4–20 mA

Resolution: 16-bit (0–65,535 counts)

Conversion Method: Sigma-Delta, two 24-bit multiplexed Analog-to-Digital Converters (ADCs)

Data Format: IEEE 32-bit floating point

Input Impedance:

Voltage: 1 MΩ

Current: 250 Ω (supports HART with external 250 Ω resistor in current loop)

Accuracy (at 25°C):

Voltage/Current: ±0.15% full scale

Scan Time: 625 µs per channel, 2.5 ms per group

Input Notch Filter: Selectable at 5, 10 (50/60 Hz default), 15, 20, 50, 60, 100, 200, 500, 1000, 2500, 5000, 10000, 15625, 25000, 31250, 62500 Hz

Power Specifications:

MOD Power: 75 mA @ 18–32V DC

SA Power: 75 mA @ 18–32V DC (current mode);  0 mA for voltage mode

Power Dissipation:

Voltage Mode: 2.1 W

Current Mode: 2.4 W

Thermal Dissipation:

Voltage Mode: 7.2 BTU/hr

Current Mode: 8.2 BTU/hr

Isolation Voltage: 300V (continuous), basic insulation type, channels-to-backplane, tested at 2100V DC for 60 s;  no channel-to-channel isolation

Wire Size:

Signal: 22–16 AWG solid/stranded copper, rated at 221°F (105°C), 1.2 mm (3/64 in.) insulation

Grounding: 14 AWG solid/stranded copper, rated at 221°F (105°C), 3.5 mm (0.14 in.) max diameter

Terminal Blocks: Requires 5069-RTB18-SPRING or 5069-RTB18-SCREW (18-point removable terminal blocks)

Mounting: DIN rail, adjacent to a Compact 5000 adapter or another I/O module

Operating Temperature: 0°C to +60°C (32°F to +140°F)

Storage Temperature: -40°C to +85°C (-40°F to +185°F)

Relative Humidity: 5–95% non-condensing

Certifications: CE, CSA, CUL, KC, RCM, UL, ATEX, IECEx (IEC hazardous location approved)

Status Indicators: 8 LEDs for channel status, 1 for module status

Functions

Flexible Analog Input: Supports 8 differential, non-isolated channels configurable for voltage (±10V, 0–10V, 0–5V) or current (0–20 mA, 4–20 mA), compatible with 2-wire and 4-wire analog devices.

High-Precision Conversion: Uses Sigma-Delta conversion with 16-bit resolution and two 24-bit multiplexed ADCs for accurate, high-speed data acquisition.

Advanced Processing: Offers onboard data alarming, scaling to engineering units, and real-time channel sampling for enhanced control.

HART Support: Compatible with HART devices by adding an external 250 Ω resistor in the current loop for transmitter compliance.

Notch Filter: Selectable input notch filter reduces noise, with multiple frequency options for compatibility with 50/60 Hz systems and high-speed applications.

Diagnostics: Provides real-time diagnostics for open circuit, short circuit, over/under range, and module health, with status LEDs for troubleshooting.

Compact Design: Slim 22 mm form factor optimizes space in distributed I/O systems, supporting up to 31 modules per adapter.

Integration: Seamlessly integrates with CompactLogix 5380, Compact GuardLogix 5380, or ControlLogix 5580 controllers via EtherNet/IP adapters.

Application Scenarios

Process Control: Measures pressure, flow, or level signals (4–20 mA, 0–10V) from transmitters in industries like oil and gas, chemical, or food and beverage for accurate process monitoring.

Manufacturing Automation: Monitors analog signals from sensors in automotive or electronics assembly lines, ensuring quality control and operational efficiency.

Material Handling: Processes inputs from load cells or position sensors in conveyor systems or packaging equipment for precise control.

Energy Management: Monitors voltage and current in energy systems to optimize efficiency and reliability in power generation or distribution.

Water/Wastewater Treatment: Acquires analog signals from field devices for level or flow control in treatment processes.

General Automation: Suitable for applications needing high-channel-count analog inputs in compact, high-performance systems.
