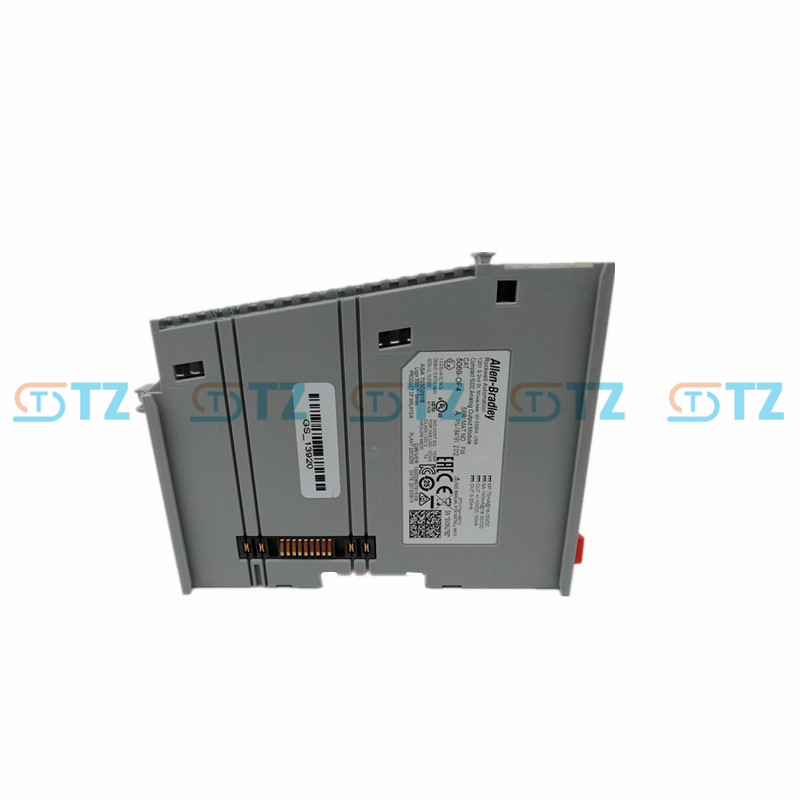

5069-OF4 Allen Bradley Rockwell Compact I/O 4 Channel Voltage/Current Analog Output Module

Product Parameters

Model: 5069-OF4

Type: Compact 5000 Analog Output Module

Output Channels: 4 single-ended, non-isolated outputs

Output Types:

Voltage: ±10V, 0–10V, 0–5V

Current: 0–20 mA, 4–20 mA

Resolution: 16-bit (0–65,535 counts)

Conversion Method: R-Ladder Digital-to-Analog Converter (DAC), monotonicity with no missing codes

Conversion Time: 25 µs per channel

Scan Time: 1.0 ms

Accuracy (at 25°C):

Voltage: ±0.2% full scale

Current: ±0.2% full scale

Output Impedance:

Voltage: < 1 Ω

Current: > 1 MΩ

Load Requirements:

Voltage: ≥ 2 kΩ

Current: ≤ 500 Ω

Power Specifications:

MOD Power: 75 mA @ 18–32V DC

SA Power: 100 mA @ 18–32V DC (current mode);  0 mA for voltage mode

MOD Power Passthrough: 9.55 A @ 18–32V DC

Power Dissipation:

Voltage Mode: 2.3 W

Current Mode: 3.0 W

Thermal Dissipation:

Voltage Mode: 7.8 BTU/hr

Current Mode: 10.2 BTU/hr

Isolation Voltage: 300V (continuous), basic insulation type, channels-to-backplane, tested at 2100V DC for 60 s;  no channel-to-channel isolation

Wire Size:

Signal: 22–16 AWG solid/stranded copper, rated at 221°F (105°C), 1.2 mm (3/64 in.) insulation

Grounding: 14 AWG solid/stranded copper, rated at 221°F (105°C), 3.5 mm (0.14 in.) max diameter

Terminal Blocks: Requires 5069-RTB18-SPRING or 5069-RTB18-SCREW (18-point removable terminal blocks, sold separately)

Mounting: DIN rail, adjacent to a Compact 5000 adapter or another I/O module;  compatible with EN50022 - 35 x 7.5 mm (1.38 x 0.30 in.) zinc-plated chromate-passivated steel DIN rail

Operating Temperature: 0°C to +60°C (32°F to +140°F)

Storage Temperature: -40°C to +85°C (-40°F to +185°F)

Relative Humidity: 5–95% non-condensing

Certifications: CE, CSA, CUL, KC, RCM, UL, ATEX, IECEx (IEC hazardous location approved)

Status Indicators: 4 LEDs for channel status, 1 for module status

Functions

Flexible Analog Output: Provides 4 single-ended channels, individually configurable for voltage (±10V, 0–10V, 0–5V) or current (0–20 mA, 4–20 mA), suitable for controlling actuators, drives, or other analog devices.

High-Precision Control: 16-bit resolution with R-Ladder DAC ensures accurate, monotonic output signals for precise process control.

Fast Response: Conversion time of 25 µs per channel and scan time of 1.0 ms enable rapid updates for dynamic applications.

Diagnostics: Features open-circuit detection (current mode) and short-circuit detection (voltage mode), with status LEDs and diagnostic data for troubleshooting.

Scaling and Alarming: Supports onboard scaling to engineering units and configurable alarms for over/under range conditions via Studio 5000 Logix Designer.

Compact Design: Slim 22 mm form factor optimizes space in distributed I/O systems, supporting up to 31 modules per adapter.

Power Efficiency: Minimal MOD and SA power draw, with no SA power required in voltage mode, reducing system power demands.

Integration: Functions as local I/O for CompactLogix 5380/5480 or distributed I/O via 5069-AENTR/AEN2TR for CompactLogix 5380, Compact GuardLogix 5380, ControlLogix 5580, or GuardLogix 5580 controllers.

Application Scenarios

Process Control: Drives valves, pumps, or variable frequency drives (VFDs) with 4–20 mA or 0–10V signals in industries like oil and gas, chemical, or food and beverage for precise process regulation.

Manufacturing Automation: Controls actuators or servos in automotive or electronics assembly lines, ensuring accurate positioning or speed control.

Material Handling: Adjusts conveyor speeds or positioning systems using analog outputs in packaging or logistics applications.

Energy Management: Regulates power output in renewable energy systems or grid control with precise voltage/current signals.

Water/Wastewater Treatment: Controls dosing pumps or flow valves for consistent treatment processes.

General Automation: Suitable for compact, high-performance systems needing reliable analog outputs for diverse control tasks.
