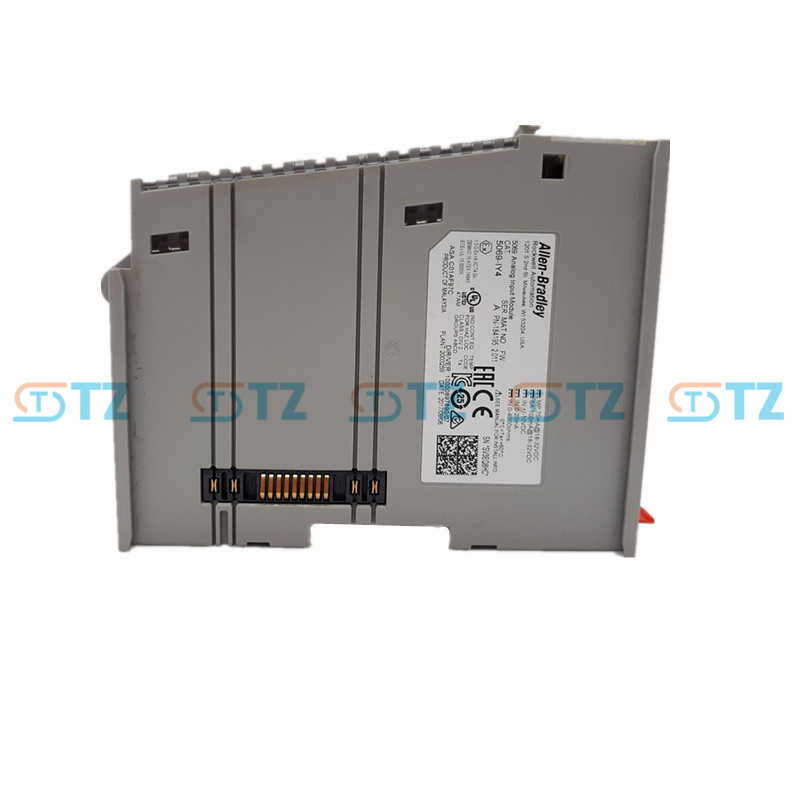

5069-IY4 Allen Bradley Rockwell Compact I/O Analog Input Module

Product Parameters

Model: 5069-IY4

Type: Compact 5000 Analog Input Module

Input Channels: 4 differential inputs, individually configurable

Input Types:

Voltage: ±10V, 0–10V, 0–5V

Current: 0–20 mA, 4–20 mA

Thermocouple: B, C, D, E, J, K, L (TXK/TXK), N, R, S, T

RTD: 100 Ω Pt 385, 200 Ω Pt 385, 100 Ω Pt 3916, 200 Ω Pt 3916, 10 Ω Cu 427, 120 Ω Ni 618, 120 Ω Ni 672, 100 Ω NiFe 518

Resolution: 16-bit (0–65,535 counts)

Conversion Method: Sigma-Delta

Data Format: IEEE 32-bit floating point

Input Impedance:

Voltage: 1 MΩ

Current: 250 Ω

Accuracy (at 25°C):

Voltage/Current: ±0.15% full scale

Thermocouple: ±0.5°C to ±2.0°C

RTD: ±0.2°C to ±0.6°C

Scan Time: 625 µs per channel

Power Specifications:

MOD Power: 75 mA @ 18–32V DC

SA Power: 75 mA @ 18–32V DC (current mode);  0 mA for voltage/thermocouple/RTD

Isolation Voltage: 300V (continuous), basic insulation type, channel-to-channel and channels-to-backplane, tested at 2100V DC for 60 s

Wire Size:

Signal: 22–16 AWG solid/stranded copper, rated at 221°F (105°C), 1.2 mm (3/64 in.) insulation

Grounding: 14 AWG solid/stranded copper, rated at 221°F (105°C), 3.5 mm (0.14 in.) max diameter

Terminal Blocks: Requires 5069-RTB10-SPRING or 5069-RTB10-SCREW (10-point removable terminal blocks)

Mounting: DIN rail, adjacent to a Compact 5000 adapter or another I/O module

Operating Temperature: 0°C to +60°C (32°F to +140°F)

Storage Temperature: -40°C to +85°C (-40°F to +185°F)

Relative Humidity: 5–95% non-condensing

Certifications: CE, CSA, CUL, KC, RCM, UL, ATEX, IECEx (IEC hazardous location approved)

Functions

Versatile Analog Input: Supports 4 differential channels, individually configurable for voltage, current, thermocouple, or RTD inputs, accommodating diverse field devices.

High-Precision Measurement: 16-bit resolution with Sigma-Delta conversion ensures accurate data acquisition for precise control and monitoring.

Flexible Configuration: Each channel can be independently set via Studio 5000 Logix Designer, with options for scaling, filtering, and alarming.

Cold Junction Compensation (CJC): Integrated CJC for thermocouple inputs, with accuracy of ±1.0°C, using a 5069-RTB10 terminal block.

Diagnostics: Provides real-time diagnostics for open circuit, short circuit, over/under range, and calibration status, with status LEDs for module and channel health.

Timestamping: Supports high-resolution timestamping for Sequence of Events (SOE) applications, ideal for time-critical processes.

Power Efficiency: Draws minimal MOD and SA power, with no SA power required for voltage, thermocouple, or RTD modes, optimizing system power usage.

Compact Design: Slim 22 mm form factor for space-constrained applications, supporting distributed I/O systems.

Application Scenarios

Process Control: Measures temperature (thermocouples/RTDs), pressure, or flow (4–20 mA) in industries like oil and gas, chemical, or food and beverage for accurate process monitoring.

Manufacturing Automation: Monitors analog signals from sensors in automotive or electronics assembly lines, ensuring quality control and operational efficiency.

Temperature Monitoring: Used in HVAC systems, furnaces, or cold storage to acquire temperature data from thermocouples or RTDs.

Material Handling: Processes analog inputs from load cells or position sensors in conveyor systems or packaging equipment for precise control.

Water/Wastewater Treatment: Measures level, pressure, or flow signals from field devices to maintain reliable treatment processes.

High-Precision Applications: Supports SOE timestamping for critical applications in power generation or safety systems requiring event sequencing.
