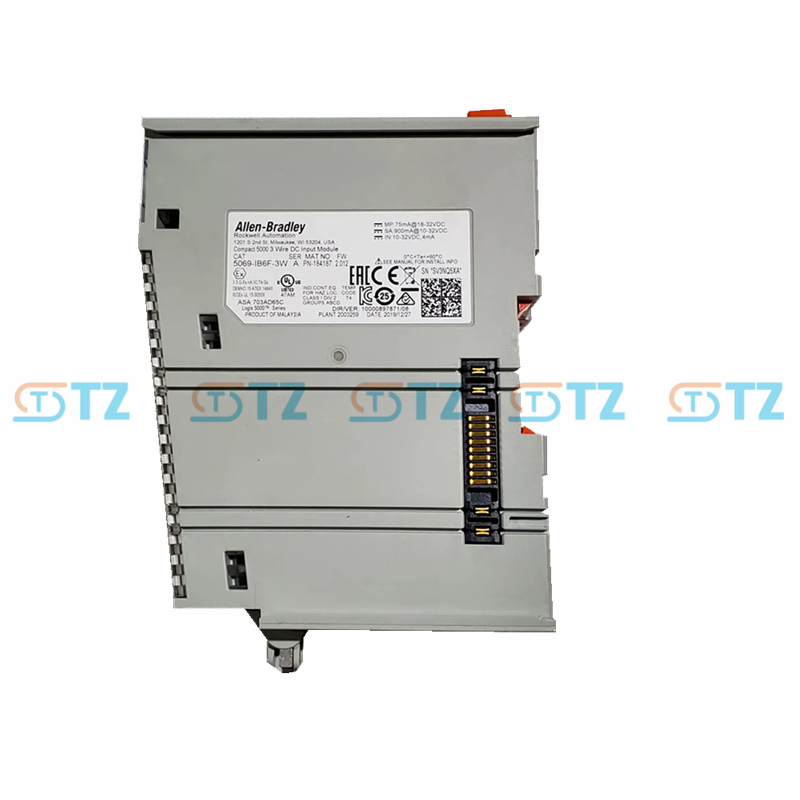

5069-IB6F-3W Allen Bradley Rockwell Compact I/O 6 Channel 3 Wire Fast 24V DC Sink Input Module

Product Parameters

Module Type: Compact 5000 Fast Digital Input Module (DC, sinking, 3-wire sensor support)

Input Channels:

6 channels (single group, sinking)

Voltage Range: 10–32 V DC

Nominal Voltage: 24 V DC

Input Current: 4–7.4 mA per channel @ 10–32 V DC (5 mA @ 10 V DC, 7.4 mA @ 32 V DC,)

Off-State Current: 1.5 mA max

Switching Times:

OFF to ON: ≤10 µs ±1 µs @ 25°C (77°F)

ON to OFF: ≤10 µs ±1 µs @ 25°C (77°F)

Configurable Input Filter Times: 0–50 ms (for OFF to ON and ON to OFF transitions,)

Special Features:

Pulse Latching: Supported

Pattern Matching: Supported

Pulse/Period Measurements: ±2 µs accuracy

Timestamp Accuracy: ±10 µs

Resolution: 1 ns

Event Triggers: Up to 4 input-triggered events or simple counters

Power:

Module Power (MOD Power): 18–32 V DC (SELV/PELV), 100 mA max current

Sensor/Actuator (SA) Power: 0–32 V DC, 100 mA max current (requires separate SA power bus for DC configurations)

Power Dissipation: 2.4 W

Thermal Dissipation: Not specified (similar modules ~13.3 BTU/hr,)

Indicators:

6 channel status LEDs (yellow for active inputs,)

1 module status LED (green/red for operational status)

Terminal Block:

Compatible RTBs: 5069-RTB18-SPRING, 5069-RTB18-SCREW (not included,)

Wiring: 0.5–1.5 mm² (22–16 AWG) solid or stranded shielded copper wire, insulation rating 105°C (221°F), max diameter 2.9 mm (spring RTB) or 3.5 mm (screw RTB)

One wire per terminal (spring RTB), one or two wires per terminal (screw RTB)

Installation:

DIN Rail: Zinc-plated chromate-passivated steel (EN50022, 35 x 7.5 mm)

Latching Mechanism: Integrated for secure mounting

Environmental Conditions:

Operating Temperature: 0°C to 60°C (32°F to 140°F)

Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Relative Humidity: 5% to 95% (non-condensing)

Vibration: 5 g @ 10–500 Hz

Shock: 30 g (operating), 50 g (non-operating)

Altitude: Up to 2000 m without derating

Enclosure: Open-style (requires protective cabinet, Pollution Degree 2 per EN/IEC0664-1,)

Certifications:

UL, cULus, CE, RCM, ATEX, IECEx, KC, China CCC, American Bureau of Shipping

Maximum Modules: Controller-dependent (e.g., 24 for 5069-L330ERM, 16 for 5069-L320ERS2), up to 31 per Ethernet/IP adapter

Programming Software: Studio 5000 Logix Designer (version 31 or higher)

UPC/GTIN: 885630530055

Functions

Fast Input Processing:

Captures signals with transition times ≤10 µs (±1 µs @ 25°C), ideal for high-speed 3-wire sensors .

Configurable input filter times (0–50 ms) enhance noise immunity for specific applications.

Advanced Sensor Support:

Supports 3-wire DC sensors and 2-wire sensors, providing power to field devices via SA power bus.

Detects input transitions (OFF to ON, ON to OFF) with high precision for logic-level integration.

Counting and Totalizing:

Supports pulse latching, pattern matching, and pulse/period measurements (±2 µs accuracy, 1 ns resolution).

Handles up to 4 input-triggered events or simple counters, suitable for high-speed counting .

Flexible I/O Integration:

Functions as local I/O for CompactLogix 5380, Compact GuardLogix 5380, or CompactLogix 5480 controllers .

Supports distributed I/O via 5069-AEN2TR or 5069-AENTR adapters for CompactLogix 5380, ControlLogix 5580, or GuardLogix 5580.

Uses Producer-Consumer communication model for intelligent data exchange and polling.

Network Compatibility:

Integrates with Ethernet/IP networks (1 Gbps, Linear/Star/DLR topologies) via controller or adapter.

Requires separate SA power bus for DC configurations to ensure isolation.

Diagnostics and Monitoring:

6 yellow channel LEDs indicate active inputs;    1 green/red module LED shows operational status.

Supports diagnostic reporting via Studio 5000 for troubleshooting.

Environmental Reliability:

DIN-rail mounting with latching mechanism ensures secure installation.

Open-style enclosure requires a protective cabinet for dust/corrosive environments.

Withstands vibration (5 g), shock (30 g operating), and operation at 2000 m altitude.

Application Scenarios

High-Speed Counting:

Used in flow metering, encoder feedback, or tachometer applications with 3-wire sensors requiring precise pulse capture (±2 µs accuracy).

Ideal for counting/totalizing tasks (e.g., production line item counts).

Manufacturing Automation:

Captures fast-switching signals from 3-wire proximity sensors in production lines (e.g., part detection).

Compatible with mid-sized systems using 5069-L330ERM (24 I/O) or 5069-L320ERS2 (16 I/O).

Material Handling:

Monitors high-speed 3-wire sensors in conveyor systems or automated sorting (e.g., position detection).

DLR topology ensures reliable network communication.

Packaging Systems:

Detects rapid signals from 3-wire sensors in packaging machines (e.g., bottle counters, label sensors).

Fast response times support high-throughput operations.

Distributed Control Systems:

Functions as distributed I/O via 5069-AEN2TR/AENTR for factory-wide control.

Integrates with 5069-series controllers for scalable automation.

OEM Equipment Integration:

Provides high-speed input for OEM machinery using 3-wire sensors.

Compact design (0.87 in. width) fits space-constrained applications.
