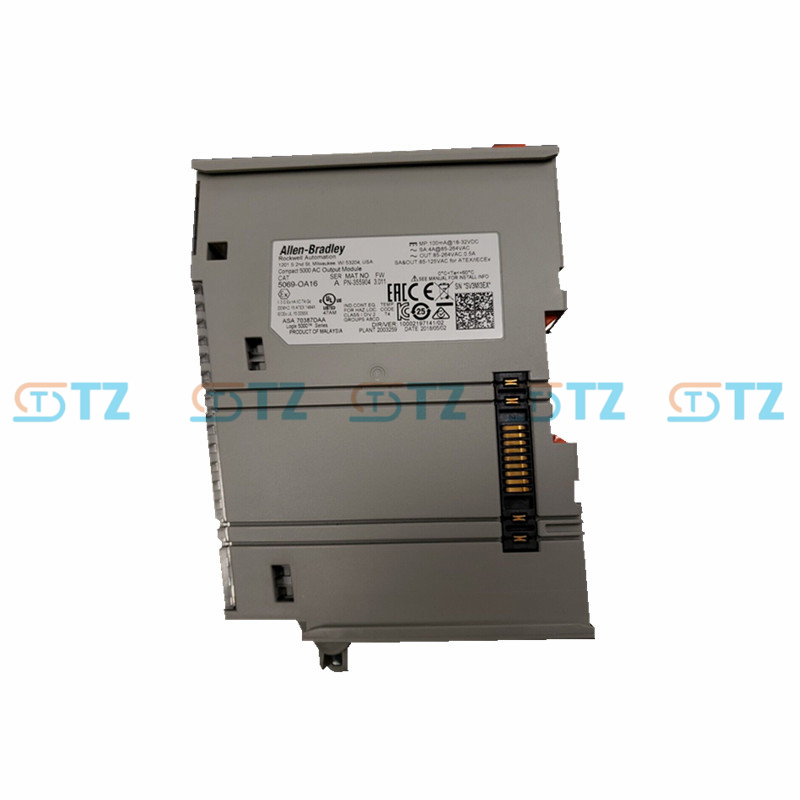

5069-OA16 Allen Bradley Rockwell Compact I/O 16 Channels AC Output Module

Product Parameters

Module Type: Compact 5000 Digital AC Output Module (triac-based)

Output Channels:

16 channels (single group, triac outputs)

Voltage Range: 85–264 V AC (47–63 Hz)

Nominal Voltage: 120/240 V AC

Output Current: 0.5 A per channel (resistive, max), 2 A per module (resistive, max)

Surge Current: 10 A per channel for 25 ms (repeatable every 2 s)

Switching Times:

OFF to ON: ≤11 ms @ 60 Hz, ≤13 ms @ 50 Hz

ON to OFF: ≤11 ms @ 60 Hz, ≤13 ms @ 50 Hz

Power:

Module Power (MOD Power): 18–32 V DC (SELV/PELV), 100 mA max current

Sensor/Actuator (SA) Power: 85–264 V AC (47–63 Hz), 300 mA max current

Power Dissipation: 2.9 W (16 channels @ 0.5 A)

Thermal Dissipation: 9.9 BTU/hr

Indicators:

16 channel status LEDs (yellow for active outputs)

1 module status LED (green/red for operational status)

Terminal Block:

Compatible RTBs: 5069-RTB18-SPRING, 5069-RTB18-SCREW (not included)

Wiring: 0.5–1.5 mm² (22–16 AWG) solid or stranded shielded copper wire, insulation rating 105°C (221°F), max diameter 2.9 mm (spring RTB) or 3.5 mm (screw RTB)

One wire per terminal (spring RTB), one or two wires per terminal (screw RTB)

Installation:

DIN Rail: Zinc-plated chromate-passivated steel (EN50022, 35 x 7.5 mm)

Latching Mechanism: Integrated for secure mounting

Environmental Conditions:

Operating Temperature: 0°C to 60°C (32°F to 140°F)

Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Relative Humidity: 5% to 95% (non-condensing)

Vibration: 5 g @ 10–500 Hz

Shock: 30 g (operating), 50 g (non-operating)

Altitude: Up to 2000 m without derating

Enclosure: Open-style (requires protective cabinet, Pollution Degree 2 per EN/IEC0664-1)

Certifications:UL, cULus, CE, RCM, ATEX, IECEx, KC, China CCC, American Bureau of Shipping

Maximum Modules: Controller-dependent, up to 31 per Ethernet/IP adapter

Functions

AC Output Control:

Drives AC-powered devices with 16 triac-based outputs (85–264 V AC).

Supports 0.5 A per channel (2 A max per module) with 10 A surge capability for 25 ms.

Configurable Output States:

Configurable fault states (Hold Last State, On, Off [default]) for Fault, Program, or Communication Failure modes.

Output delay times: ≤11 ms (60 Hz) or ≤13 ms (50 Hz) for ON/OFF transitions.

Flexible I/O Integration:

Functions as local I/O for CompactLogix 5380, Compact GuardLogix 5380, or CompactLogix 5480 controllers .

Supports distributed I/O via 5069-AEN2TR or 5069-AENTR adapters for CompactLogix 5380, ControlLogix 5580, or GuardLogix 5580.

Uses producer/consumer communication model for efficient data exchange without polling.

Network Compatibility:

Integrates with Ethernet/IP networks (1 Gbps, Linear/Star/DLR topologies) via controller or adapter.

Requires separate SA power bus (AC) for field device power, isolated from MOD power (DC).

Diagnostics and Monitoring:

16 yellow channel LEDs indicate active outputs;  1 green/red module LED shows operational status.

Supports diagnostic reporting via Studio 5000 for troubleshooting .

Environmental Reliability:

DIN-rail mounting with latching mechanism ensures secure installation.

Open-style enclosure requires a protective cabinet for dust/corrosive environments.

Withstands vibration (5 g), shock (30 g operating), and operation at 2000 m altitude.

Application Scenarios

Manufacturing Automation:

Drives AC-powered actuators (e.g., solenoids, contactors) in production lines.

Compatible with mid-sized systems using 5069-L330ERM (24 I/O) or 5069-L320ERS2 (16 I/O).

Material Handling:

Controls AC relays or motor starters in conveyor systems or automated sorting.

DLR topology ensures reliable network communication.

Process Control:

Actuates AC-powered valves or pumps in chemical, pharmaceutical, or food industries.

16 channels support multi-device control in mid-sized processes.

Building Automation:

Controls AC-powered HVAC equipment, lighting, or other facility systems.

Wide voltage range (85–264 V AC) accommodates 120/240 V AC devices.

Distributed Control Systems:

Functions as distributed I/O via 5069-AEN2TR/AENTR for factory-wide control.

Integrates with 5069-series controllers for scalable automation.

OEM Equipment Integration:

Provides AC output control for OEM machinery requiring 120/240 V AC actuation.

Compact design (0.87 in. width) fits space-constrained applications.

Advantage Products:
