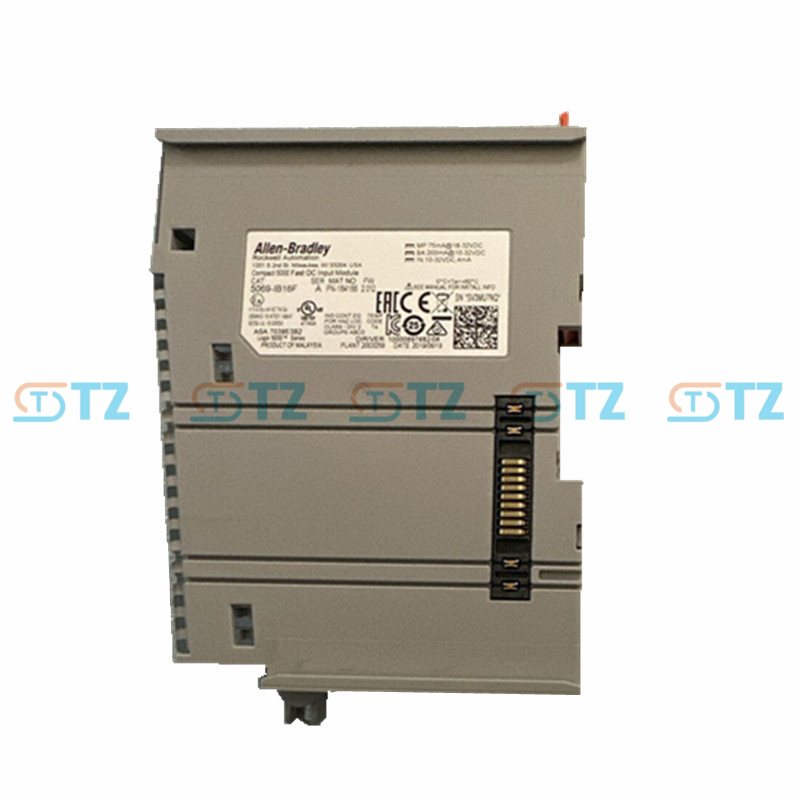

5069-IB16F Allen Bradley Rockwell Compact I/O 16 Channel Fast 24V DC Sink Input Module

Product Parameters

Module Type: Compact 5000 Fast Digital Input Module (DC, sinking)

Input Channels:

16 channels (single group, sinking)

Voltage Range: 10–32 V DC

Nominal Voltage: 24 V DC

Input Current: 4–7.4 mA per channel @ 10–32 V DC (6 mA nominal @ 24 V DC)

Switching Times:

OFF to ON: ≤10 µs ±1 µs @ 25°C (77°F)

ON to OFF: ≤10 µs ±1 µs @ 25°C (77°F)

Special Features:

Pulse Latching: Supported

Pattern Matching: Supported

Pulse/Period Measurements: ±2 µs accuracy

Timestamp Accuracy: ±10 µs

Resolution: 1 ns

Power:

Module Power (MOD Power): 18–32 V DC (SELV/PELV), 100 mA max current

Sensor/Actuator (SA) Power: 0–32 V DC, 100 mA max current

Power Dissipation: 3.9 W

Indicators:

16 channel status LEDs (green when active)

1 module status LED (green for normal operation)

Terminal Block:

Compatible RTBs: 5069-RTB18-SPRING, 5069-RTB18-SCREW

Wiring: Requires separate SA power bus for DC SA power configurations

Installation:

DIN Rail: Zinc-plated chromate-passivated steel (EN50022, 35 x 7.5 mm)

Latching Mechanism: Integrated for secure mounting

Environmental Conditions:

Operating Temperature: 0°C to 60°C (32°F to 140°F)

Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Relative Humidity: 5% to 95% (non-condensing)

Vibration: 5 g @ 10–500 Hz

Shock: 30 g (operating), 50 g (non-operating)

Enclosure: Open-style (requires protective cabinet)

Certifications:

EMC: EN 50081-2, EN 50082-2

UL, cULus, CE, RCM, ATEX, IECEx, KC

Maximum Modules: Up to 8 (controller-dependent) for local I/O;  up to 31 per Ethernet/IP adapter

Programming Software: Studio 5000 Logix Designer (version 31 or higher)

Functions

Fast Input Processing:

Captures signals with transition times ≤10 µs (±1 µs @ 25°C), ideal for high-speed devices .

Supports pulse latching, pattern matching, and pulse/period measurements (±2 µs accuracy, 1 ns resolution).

Counting and Totalizing:

Enables high-speed counting applications .

Timestamp accuracy (±10 µs) supports precise event logging.

Flexible I/O Integration:

Functions as local I/O for CompactLogix 5380, Compact GuardLogix 5380, or CompactLogix 5480 controllers.

Supports distributed I/O via Ethernet/IP adapters (5069-AEN2TR/AENTR) for CompactLogix 5380, ControlLogix 5580, or GuardLogix 5580.

Up to 31 modules per adapter, scalable based on controller capacity.

Network Compatibility:

Integrates with Ethernet/IP networks (1 Gbps, Linear/Star/DLR topologies) via controller or adapter.

Requires separate SA power bus for DC configurations to ensure isolation.

Diagnostics and Monitoring:

16 channel LEDs indicate active inputs;  1 module LED shows operational status.

Supports diagnostic reporting via Studio 5000 for troubleshooting.

Environmental Reliability:

DIN-rail mounting with latching mechanism ensures secure installation.

Open-style enclosure requires a protective cabinet for dust/corrosive environments.

Withstands vibration (5 g) and shock (30 g operating).

Application Scenarios

High-Speed Counting:

Used in flow metering, encoder feedback, or tachometer applications requiring precise pulse capture.

Supports counting/totalizing with ±2 µs accuracy.

Manufacturing Automation:

Captures fast-switching signals from sensors in production lines.

Suitable for mid-sized systems with up to 24 local I/O modules .

Material Handling:

Monitors high-speed sensors in conveyor systems or automated sorting.

DLR topology ensures reliable network communication.

Packaging Systems:

Detects rapid signals in packaging machines .

Fast response times support high-throughput operations.

Distributed Control Systems:

Functions as distributed I/O via 5069-AEN2TR/AENTR for factory-wide control.

Compatible with 5069-series controllers.

OEM Equipment Integration:

Provides high-speed input for OEM machinery requiring precise signal detection.

Compact design fits space-constrained applications.
