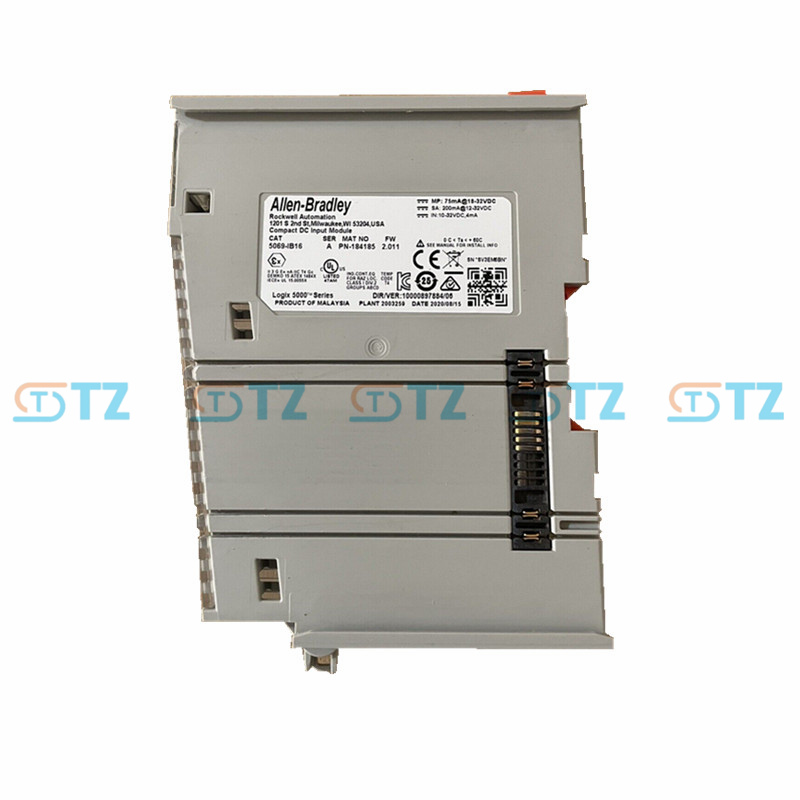

5069-IB16 Allen Bradley Rockwell Compact I/O 16 Channel 24V DC Sink Input Module

Product parameters

Controller type: CompactLogix 5380

Memory capacity: 1MB (user program storage space)

Digital input (DI) : 16

Digital output (DO) : 16

Motion control function: Not supported

Communication interface

EtherNet/IP: Supports high-speed Ethernet communication, facilitating integration with factory networks.

USB: Supports USB interface, facilitating debugging and programming.

Power supply requirements

Input voltage: 0 to 32 VDC

Output current: 10 mA

Environmental requirements

Operating temperature: Usually 0°C to 70°C

Protection grade: Usually IP20, suitable for general industrial environments

Expansion capability: Supports local I/O modules and remote I/O modules, suitable for distributed control systems

Certification: Passed China CCC certification and Australia RCM certification

Main functions

Efficient digital I/O control

The 5069-IB16 offers 16 digital inputs and 16 digital outputs, making it suitable for controlling switches, sensors, relays and other devices.

It is suitable for simple logic control and status monitoring.

Integrated communication capability

Through the EtherNet/IP communication interface, this controller can be easily integrated into the Ethernet system of the factory to achieve real-time data exchange and remote monitoring.

Supports seamless connection with other Allen-Bradley devices (such as I/O modules, power modules, etc.).

Flexible programming environment

Using the Studio 5000 Logix Designer development tool, users can easily write and debug control programs.

Provide a unified development environment to facilitate integration and maintenance with other Allen-Bradley controllers.

Compact design: This controller is small in size, suitable for industrial environments with limited space, while still providing powerful control capabilities.

Application scenarios

Manufacturing Automation

5069-IB16 is widely used in manufacturing workshops to control equipment on the production line, such as conveyor belts, assembly equipment, pneumatic valves, etc.

Due to its digital I/O function, it is also suitable for simple logic control and status monitoring.

Energy and Power industry

In power plants and substations, this controller can be used to control circuit breakers, relays and protective equipment.

Due to its high reliability and security, it is also applicable to power monitoring systems.

Construction and Architecture industry

On construction sites, this controller can be used to control equipment such as elevators, concrete pump trucks and tower cranes.

Due to its integrated communication function, it is also applicable to building automation systems.

Food and Beverage industry

In the food processing industry, this controller can be used to control food processing machinery, filling machines and cooling systems.

Due to its high precision and scalability, it is also applicable to food packaging and sorting systems.

Logistics and warehousing industry

In the logistics industry, this controller can be used to control automatic sorting systems, stacker cranes and handling robots.

Due to its digital I/O function, it is also applicable to the control of warehouse equipment.
