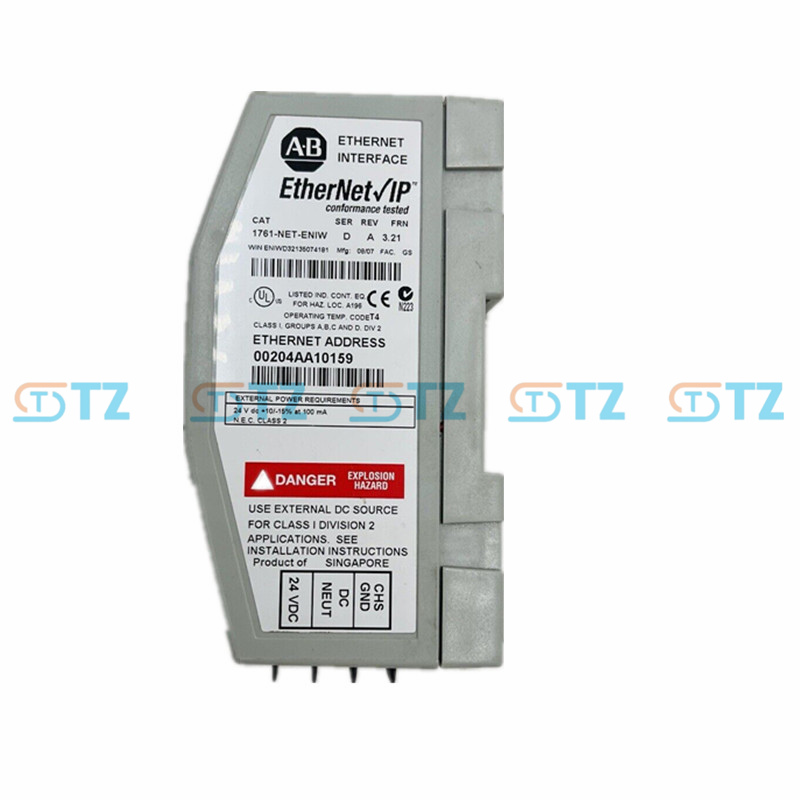

1761-NET-ENIW Allen Bradley Rockwell CompactLogix EtherNet/IP Network Interface Module

Product parameters

Type: EtherNet Interface Module (EtherNet/IP Communication Adapter), with Web server functionality, suitable for MicroLogix, SLC and CompactLogix series

Communication port:

Port 1: Ethernet port, RJ45 connector, supporting 10/100 Mbps (half-duplex/full-duplex, automatic negotiation)

Port 2:8-pin mini DIN circular RS-232 port, supporting DF1 full-duplex protocol

Supported protocols: EtherNet/IP, DF1 full-duplex, SMTP (Simple Mail Transfer Protocol)

Communication rate:

Ethernet: 10/100 Mbps (Series A, B, and C support 100 Mbps, Series D supports up to 1 Gbps, with automatic negotiation)

RS-232:2400, 4800, 9600, 19.2K, 38.4K baud rates

TCP/IP connection: Supports up to 6 concurrent TCP/IP connections (2 outbound, 2 inbound, and 2 configurable as either outbound or inbound)

Each connection supports 5 unconnected transmissions and 4 CIP connections

Power supply requirements:

Voltage range: 20.4-26.4 VDC (nominal 24 VDC)

Current consumption: Typically 50 mA @ 24 VDC, maximum 100 mA @ 24 VDC

Surge current: Maximum 200 mA @ 24 VDC

Isolation voltage: 710 VDC, for 1 minute (internal isolation)

Operating temperature: 0°C to 60°C (32°F to 140°F)

Storage temperature: -45°C to 85°C (-49°F to 185°F)

Relative humidity: 5% to 95% (no condensation)

Vibration: 10-500 Hz, 5.0 g, 0.030 inches peak-to-peak value, 2 hours per axis (in compliance with IEC 60068-2-6)

Protection grade: IP20 (Open Type)

Installation method: DIN rail or panel installation (vertical installation supported)

Wiring method: The RS-232 port is connected through an 8-pin mini DIN cable, and the Ethernet port is connected through a standard RJ45 cable

Certifications: C-TICK, CCC, CE, CUL, GOST, KC, MARINE, UL, Class I Division 2

ESD immunity: 6 kV contact discharge, 8 kV air discharge (in compliance with IEC 61000-4-2)

Conducted radio frequency immunity: 10 V/m, 200 Hz 50% pulse, 100% AM@900/1890 MHz (in compliance with IEC 61000-4-3)

Status indicator light:

Ethernet status: green/red, indicating network connection and activity

Module status: Green/red, indicating power supply and operating status

RS-232 status: Green, flashing indicates data transmission

Life cycle status: Discontinued (As of December 31, 2015, the direct substitute is 1761-NET-ENI)

Function

EtherNet bridge: Connect devices that support the DF1 full-duplex protocol to the EtherNet/IP network, supporting point-to-point and multi-node communication.

Web Server: Built-in Web server. Configuration, parameterization and data viewing can be performed by accessing the IP address of the module through a browser. It supports real-time data display on 4 DataView web pages.

Operating functions:

Communication between controllers

Program upload/download

Generate and send emails via the SMTP protocol (for alarm or data transmission)

Support point-to-point and multi-node message passing

Compatibility: Supports all MicroLogix, CompactLogix controllers, SLC 500 (5/03 and above), PLC-5, PanelView terminals, RSLinx software, and other DF1 full-duplex devices with RS-232 ports.

Configuration and programming: Configure through RSLogix 500, RSLogix 5000 or Studio 5000 Logix Designer software, allocate IP addresses using BOOTP/DHCP tools or the Web interface, and perform network Settings in conjunction with RSLinx.

Diagnostic function: Real-time communication and power status feedback are provided through LED indicator lights, and the Web interface supports viewing events and device data.

Installation flexibility: Supports DIN rail or panel installation, vertical installation design, suitable for space-constrained environments.

Application scenarios

Manufacturing industry: Connect MicroLogix or SLC controllers to Ethernet for distributed control in automotive manufacturing and food and beverage production lines.

Material handling: Achieve Ethernet communication between the controller and HMI or other devices in the conveyor belt and stacker crane system.

Packaging machinery: Provides Ethernet bridging and remote data access for sealing, labeling, and sorting equipment.

Process control: In the chemical and pharmaceutical industries, it connects PLCS, Hmis and other devices, supporting distributed I/O management and remote monitoring.

Remote monitoring: Device status monitoring and alarm email sending are achieved through the Web server and SMTP functions.

Traditional system upgrade: Provide Ethernet connection for old MicroLogix or SLC systems to extend the service life of the equipment.
