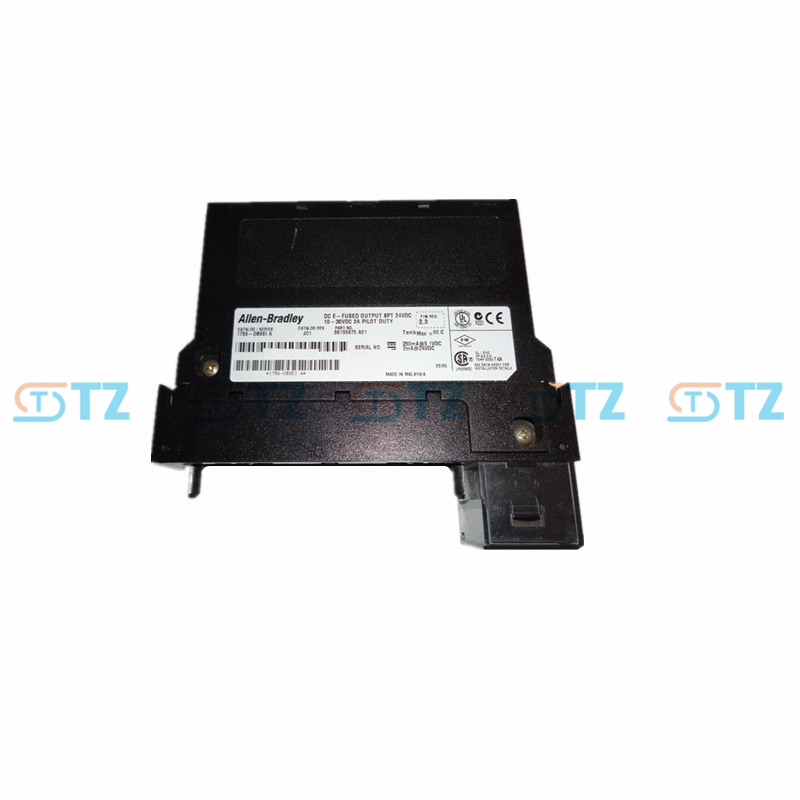

1756-OB8EI Allen Bradley Rockwell Digital DC Output Module

Product parameters

Output points: 8 independent and isolated output channels.

Voltage level: Supports 12/24V DC power supply.

Operating voltage range: 10 to 30 VDC.

Maximum output current per channel: 2A (at 60°C).

Maximum output current of the module: 10A (at 60°C).

Isolation voltage: 250V AC continuous isolation.

Electronic fuse: Each channel is equipped with an electronic fuse to provide overcurrent protection.

Backplane power: 1.30W (at 24V voltage).

Maximum power consumption: 4.7W (at 60°C).

Heat dissipation: 16.03 BTU/hr.

Maximum transient current: 4A per channel, once every 10 milliseconds, repeatable, with an interval of 2 seconds.

Isolation method: There is electrical isolation between each channel and the back plate.

Wiring method: Supports both isolated and non-isolated wiring.

Temperature range: The operating temperature is -40°C to +70°C.

Certification: Complies with standards such as CSA, UL, and CE.

Ii. Main Functions

High-precision output control: Suitable for industrial applications that require precise control.

Independent isolated output: Each channel is independently isolated to reduce interference.

Electronic fuse protection: Each channel is equipped with an electronic fuse to prevent overcurrent damage.

Flexible wiring methods: Supports both isolated and non-isolated wiring, facilitating system integration.

Compatibility: Seamless integration with the ControlLogix system, supporting multiple communication protocols.

Scalability: Through the backplane expansion slots, it can be used in combination with other I/O modules.

High reliability: Suitable for harsh industrial environments, it has excellent anti-interference ability.

Iii. Application Scenarios

Motion control: It is used to control actuators such as motors and servo drivers.

Process control: In industries such as chemical engineering, pharmaceuticals, and food processing, it is used to control equipment like valves and pumps.

Automated production line: It is used for the control of automated equipment such as robotic arms and conveyor belts.

Detection and monitoring: It is used to monitor sensor signals such as temperature, pressure, position, etc.

Energy management: It is used to monitor and control power loads and optimize energy usage efficiency.

Industrial equipment interface: As a key I/O module in industrial automation systems, it connects sensors and actuators.
