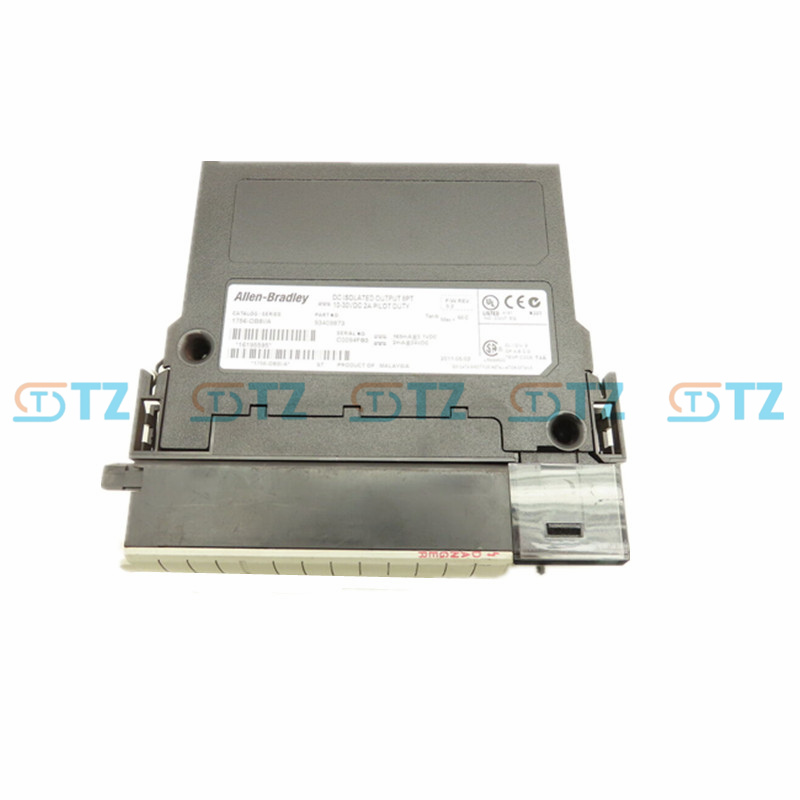

1756-OB8I Allen Bradley Rockwell Digital DC Output Module

Product parameters

The number of output channels: 1756-OB8I module provides 8 independent isolated output channels, each of which can be configured as digital output (ON/OFF).

Voltage range: This module supports power supply of 12V DC or 24V DC, and the working voltage range is 10V to 30V DC

Current output: The maximum output current of each channel is 2A (at 60°C), and the total output current of the module is 10A (at 60°C).

Output delay time

From off to on: maximum 1ms

From on to off: Maximum 2ms

Total backplane power: 0.89W (at 5.1V voltage) or 4.6W (at 60°C temperature)

Maximum power consumption: 4.6W (at 60°C

Isolation feature: The module provides an isolation voltage of 250V AC RMS to ensure electrical isolation between the input and output, preventing interference and noise

Temperature range

Operating temperature: 0°C to 60°C

Storage temperature: -40°C to 85°C

Certification and Standards

IEC 61000-6-4: Complies with electromagnetic compatibility standards

ESD immunity: 6kV contact discharge, 8kV air discharge

EFT/B immunity: ±2kV @ 5kHz.

Functional characteristics

Flexible configuration

The 1756-OB8I module supports 8 independent output channels, and each channel can be independently configured to the ON/OFF state, suitable for various control requirements

High reliability: This module adopts optocoupler isolation technology to ensure the stability and anti-interference ability of the output signal, making it suitable for harsh industrial environments

Strong compatibility: The 1756-OB8I module is part of the ControlLogix series and can be seamlessly integrated into Allen Bradley's PLC systems, supporting multiple I/O types and extended functions

Thermal management: The module has an excellent heat dissipation capacity, with a maximum heat dissipation of 16.03 BTU/hr, ensuring stable operation even under high loads

Remote terminal support: This module supports RTB (Remote Terminal Module) connection, facilitating expansion and remote monitoring

Application scenarios

Motion control: The 1756-OB8I module is widely used in motion control, such as in the control of robots, conveyor belts, mechanical arms and other equipment, controlling the start and stop of actuators through precise digital output

Process control: In industries such as chemical engineering, petroleum, and natural gas, this module is used to control the start and stop of equipment such as valves, pumps, and fans, achieving precise control of the production process

Industrial automation system: 1756-OB8I is one of the core components of the ControlLogix series, suitable for various industrial automation systems, such as assembly lines, inspection systems, safety control systems, etc

Safety Control: This module supports safe output and is suitable for industrial scenarios that require a high level of safety, such as emergency stop buttons and safety door control

Distributed I/O system: 1756-OB8I can be used as a part of a distributed I/O system, working in coordination with the main controller to achieve the expansion of large-scale industrial automation systems
