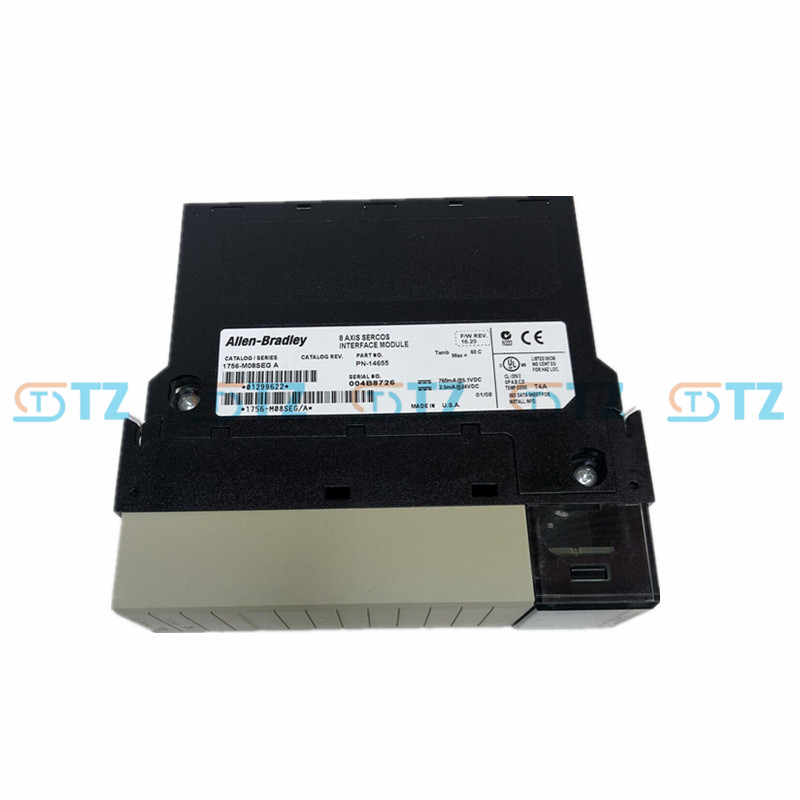

1756-M08SEG Allen Bradley Rockwell Kinetix SERCOS Interface Motion Module

Product parameters

Product type: Allen-Bradley 1756-M08SE, ControlLogix SERCOS Interface Module

Number of supported axes: up to 8 axes

SERCOS data rate: 4 Mbps or 8 Mbps

SERCOS cycle time:

4 Mbps: 0.5 ms (2 axes), 1 ms (4 axes), 2 ms (8 axes)

8 Mbps: 0.5 ms (4 axes), 1 ms (8 axes)

Compatible drives: Kinetix 2000, 6000, 7000, Ultra3000 SERCOS servo drives

Control modes: position, speed, torque

Backplane current: 760 mA @ 5.1V DC, 15 mA @ 24V DC

Power consumption: 5 W

Heat dissipation: 17.0 BTU/ hour

Communication medium: Single optical fiber (2090-SCEPxx-0, 2090-SCVPxx-0, 2090-SCNPxx-0, 2090-SCVGxx-0)

Compatible racks: ControlLogix racks (1756-A4, A7, A10, A13, A17)

Power compatibility: 1756-PA72/C, PA75/B, PB72/C, PB75/B, PC75/B, PH75/B; Redundant power supplies: 1756-PA75R, PB75R, PSCA2

Shell type: Open type

Operating temperature: 0 to 60°C (32 to 140°F)

Storage temperature: -40 to 85°C (-40 to 185°F)

Relative humidity: 5% to 95% (non-condensing)

Vibration resistance: 2g (10 to 500 Hz)

Operating impact: 30g

Non-operational impact: 50g

Certification: CE, Australian RCM

Life cycle status: Active Mature

Function

High-speed motion control: Real-time control of up to 8-axis servo drivers is achieved through the SERCOS protocol (4/8 Mbps), supporting position, speed, and torque modes.

Drive compatibility: Seamless integration with Kinetix 2000, 6000, 7000 and Ultra3000 SERCOS servo drives.

Modular integration: Installed on the ControlLogix rack, it works in conjunction with processor modules (such as 1756-L55) and supports standard/redundant power supply configurations.

Communication simplification: Using a single optical fiber for communication reduces wiring complexity and enhances anti-interference capability.

Programming and Diagnosis: Configured through Studio 5000 Logix Designer, it supports motion instructions and LED status diagnosis (OK, SERCOS status).

Redundancy support: It can be used in controller redundancy systems (requiring distributed I/O racks) to enhance system reliability.

Application scenarios

Manufacturing industry

Robots and automated Assembly: Control multi-axis robots or assembly lines to achieve high-precision positioning.

Packaging machinery: Used for high-speed sealing, labeling, and stacking equipment, maintaining synchronous movement.

CNC machine tools: Support multi-axis processing and provide precise motion control.

Process industry

Food and Beverage: Control conveyor belts, sorting and filling systems to ensure efficient operation.

Pharmaceuticals: Used in drug packaging and production equipment, meeting strict precision requirements.

Logistics and Warehousing

Automated warehouse: Control stacker cranes, conveyor belts, and sorting systems to optimize material handling.

AGV (Automated Guided Vehicle) : Achieves multi-axis motion control and enhances logistics efficiency.

Printing and Textile

Printing press: Control the synchronous movement of the rollers to ensure high-quality printing.

Textile machinery: Used for multi-axis control of spinning and weaving equipment to enhance production efficiency.

Energy and Infrastructure

Wind power generation: Control the adjustment mechanism of wind turbine blades to optimize motion performance.

Water treatment: It is used in pumping stations and valve motion control to enhance process stability.
