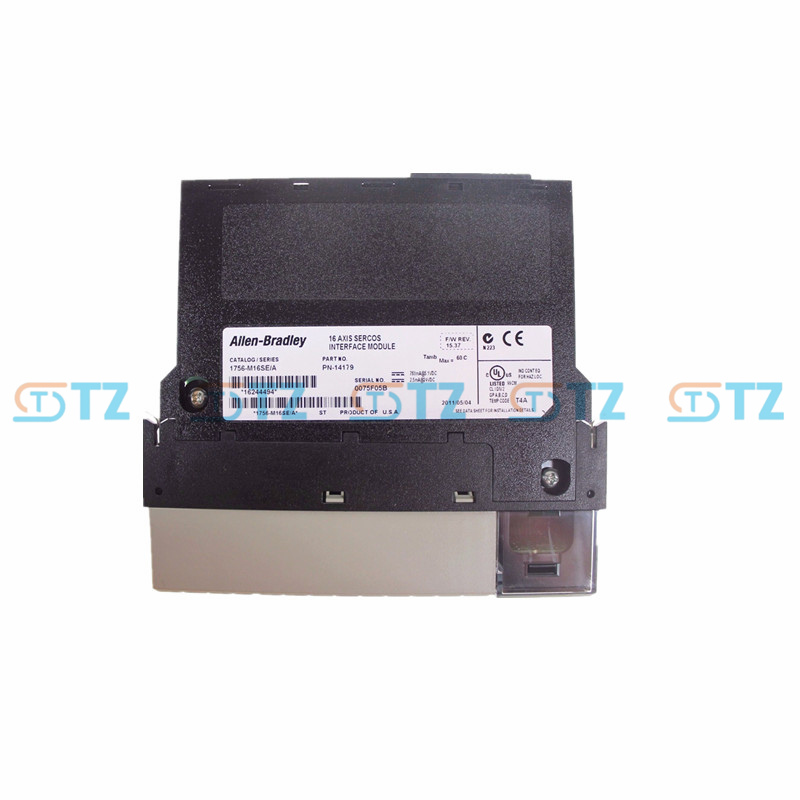

1756-M16SE Allen Bradley Rockwell Kinetix SERCOS Interface Motion Module

Product parameters

Product type: Allen-Bradley 1756-M16SE, ControlLogix SERCOS interface Module

Supported axes: 16 axes (maximum 16 axes per module, maximum 32 axes per controller)

SERCOS data rate: 4 Mbps or 8 Mbps

Control modes: position, speed, torque

Backplane current

5.1. It is 760 mA at DC

It is 2.4mA at 24V DC

Power consumption: 5 W

Heat dissipation: 17.2 BTU/ hour

Communication medium: Single optical fiber (2090-SCEPxx-0, 2090-SCVPxx-0, 2090-SCNPxx-0, 2090-SCVGxx-0)

Compatible racks: ControlLogix racks (1756-A4, A7, A10, A13, A17)

Power supply compatibility

Standard power supply: 1756-PA72/C, PA75/B, PB72/C, PB75/B, PC75/B, PH75/B

Redundant power supplies: 1756-PA75R, PB75R, PSCA2

Shell type: Open type (no protection grade)

Operating temperature: 0 to 60°C (32 to 140°F)

Storage temperature: -40 to 85°C (-40 to 185°F)

Relative humidity: 5% to 95% (non-condensing)

Vibration resistance: 2g (10 to 500 Hz)

Operating impact: 30g

Non-operational impact: 50g

Certification: CE, Australian RCM, etc. (As of February 14, 2025-subject to the product label)

Life cycle status: Active Mature (as of February 14, 2025)

Firmware version: The latest one is v36.001 (which can be downloaded from the Rockwell Automation official website)

Function

High-performance motion control: Real-time, high-speed control of up to 16-axis servo drives is achieved through the SERCOS protocol (4/8 Mbps), supporting position, speed and torque modes.

Driver integration: Compatible with Kinetix 2000, 6000, 7000 and Ultra3000 SERCOS servo drivers, providing flexible motion control solutions.

Modular design: It can be installed in any slot of the ControlLogix rack and work in coordination with the processor module, supporting both standard and redundant power supply configurations.

Optical fiber communication: A single digital optical fiber link is used to replace up to 18 digital cables per axis, enhancing noise resistance and wiring simplicity.

Dynamic configuration: Supports dynamic configuration through additional instructions of Studio 5000 Logix Designer without interrupting the system operation.

Diagnosis and status monitoring: Provide LED indicator lights (OK, SERCOS status) and detailed driver status information transmission to enhance system reliability.

Application scenarios

Manufacturing industry

Robots and automated Assembly: Control multi-axis robots or complex assembly lines to achieve high-precision synchronous motion.

Packaging equipment: Used for high-speed packaging machines (such as cutting, sealing, and stacking) to ensure multi-axis coordination.

CNC machine tools: Support multi-axis processing, providing high precision and dynamic response.

Process industry

Food and Beverage: Control conveying, sorting and filling systems to enhance production efficiency and consistency.

Pharmaceuticals: Used in drug production and packaging equipment, meeting high-precision and compliance requirements.

Logistics and Warehousing

Automated warehouse: Control stacker cranes, conveyor belts, and sorting systems to optimize material handling.

AGV (Automated Guided Vehicle) : Achieve multi-axis motion control and enhance the level of logistics automation.

Printing and Textile

Printing press: Control the synchronous movement of multi-axis printing cylinders to ensure high-quality output.

Textile machinery: Used for weaving and spinning equipment, optimizing multi-axis coordination and production efficiency.

Energy and Infrastructure

Wind power generation: Control the adjustment mechanism of wind turbine blades to enhance motion accuracy and reliability.

Water treatment: Multi-axis motion control for pumping stations and valves, optimizing process management.
