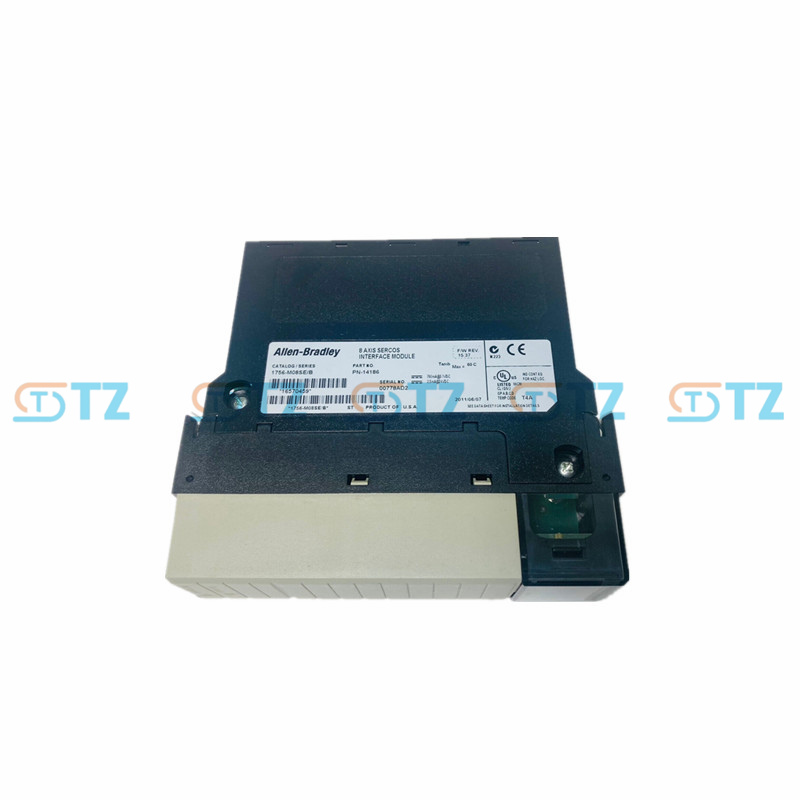

1756-M08SE Allen Bradley Rockwell Kinetix SERCOS Interface Motion Module

Product parameters

Product type: ControlLogix SERCOS interface Module

Number of supported axes: up to 8 axes

SERCOS data rate: 4 Mbps or 8 Mbps

SERCOS cycle time:

4 Mbps:

0.5 ms (up to 2 drives)

1 ms (up to 4 drives)

2 ms (up to 8 drives)

8 Mbps:

0.5 ms (up to 4 drives)

1 ms (up to 8 drives)

2 ms (up to 16 drivers. Please note that the 1756-M08SE supports up to 8 axes at most)

Control modes: position, speed, torque

Backplane current

It is 760 mA at 5.1V DC

It is 15 mA at 24V DC

Power consumption: 5 W

Heat dissipation: 17.0 BTU/ hour

Communication medium: Single optical fiber (plastic or glass optical fiber cable, specific models include 2090-SCEPxx-0, 2090-SCVPxx-0, 2090-SCNPxx-0, 2090-SCVGxx-0)

Compatible racks: ControlLogix racks (1756-A4, A7, A10, A13, A17)

Power supply compatibility

Redundant power supplies: 1756-PA75R, 1756-PB75R, 1756-PSCA2

Shell type: Open type (no protection grade)

Operating temperature: 0 to 60°C (32 to 140°F)

Storage temperature: -40 to 85°C (-40 to 185°F)

Relative humidity: 5% to 95% (non-condensing)

Vibration resistance: 2g (10 to 500 Hz)

Operating impact: 30g

Non-operational impact: 50g

Certification: CE, Australian RCM (As of February 14, 2025. For specific certifications, please refer to the product label)

Life cycle status: Active Mature (as of February 14, 2025)

Firmware version: The latest firmware is v36.001 (which can be downloaded from the Rockwell Automation official website)

Function

High-speed motion control

High-speed and real-time communication with the servo driver is achieved through the SERCOS protocol, supporting precise multi-axis motion control.

It offers position, speed and torque control modes, suitable for a variety of motion control requirements.

Supports fast cycle time (as low as 0.5ms) to ensure high dynamic response.

Compatibility and Integration

Seamlessly integrated with a variety of Kinetix servo drives (2000, 6000, 7000, Ultra3000), it expands the motion control capabilities of the ControlLogix system.

It can be directly installed in the ControlLogix rack and supports both standard and redundant power supply configurations.

Using a single optical fiber for communication simplifies wiring and enhances anti-interference capability.

Redundant support

Supports redundant configuration of the controller, but it needs to be installed in a distributed I/O rack to ensure high system availability.

Programming and Configuration

Programming and configuration are carried out through the Studio 5000 Logix Designer software, which supports programming languages such as ladder diagrams and structured text.

It provides diagnostic functions and monitors the module and communication status through LED indicator lights (OK, SERCOS status).

Modular design

As part of the ControlLogix platform, the 1756-M08SE supports modular expansion and can work in conjunction with other I/O modules, communication modules, and processors.

It offers an economical solution. Compared with the 1756-M16SE that supports 16 axes, it is suitable for applications with fewer axes.

Application scenarios

Manufacturing industry

Robots and automated Assembly: Used to control multi-axis robots or automated assembly lines to achieve precise position and speed control.

Packaging machinery: Applied to high-speed packaging equipment, such as sealing, labeling and stacking, to ensure synchronous movement and high efficiency.

CNC machine tools: Control the movement of multi-axis machine tools and provide high-precision processing capabilities.

Process industry

Food and Beverage: It is used to control conveyor belts, sorting systems and filling equipment to ensure fast and precise operation.

Pharmaceuticals: Achieve precise motion control in drug packaging and production equipment to meet strict quality requirements.

Logistics and Warehousing

Automated warehouse: Control stacker cranes, conveyor belts and sorting systems to achieve efficient material handling.

AGV (Automated Guided Vehicle) : It is used for the motion control of multi-axis AGVs to optimize the logistics process.

Printing and Textile

Printing press: Control the synchronous movement of multi-axis printing cylinders to ensure high-quality printing.

Textile machinery: It is used to control the multi-axis movement of spinning and weaving equipment and improve production efficiency.

Energy and Infrastructure

Wind power generation: Control the blade adjustment mechanism of the wind turbine to ensure precise motion control.

Water treatment: It is used for motion control of pumping stations and valves to optimize the water treatment process.
