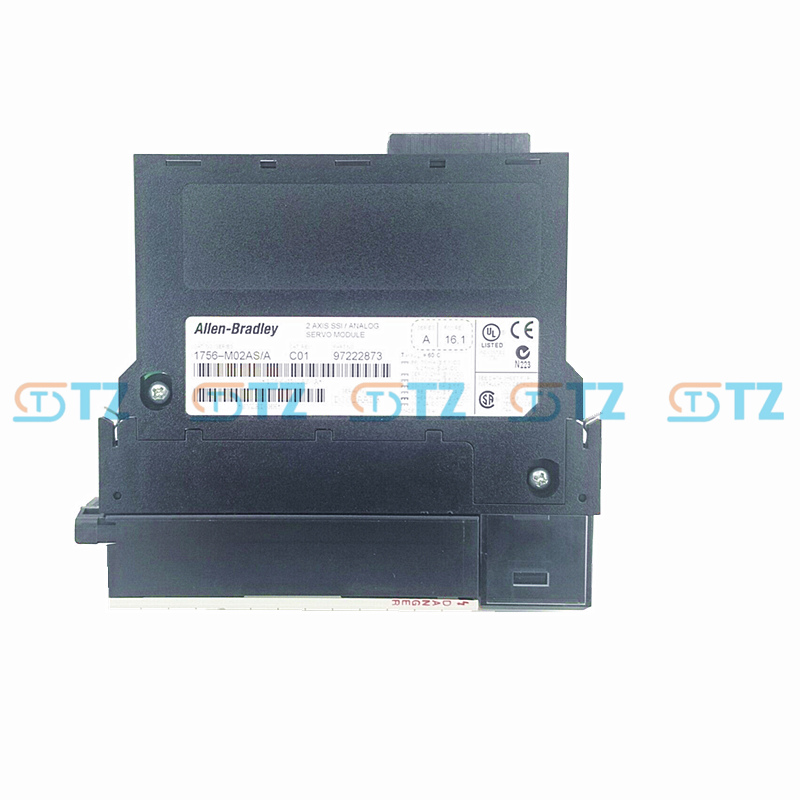

1756-M02AS Allen Bradley Rockwell ControlLogix Analog Motion Module

Product parameters

Product type: Allen-Bradley 1756-M02AS, ControlLogix 2-axis analog /SSI servo Module

Supported axes: 2 axes per module (up to 32 axes per controller)

Servo circuit type:

Position loop: Proportion + integral + derivative (PID) with velocity feedforward

Velocity loop: Proportional + integral (PI) with acceleration feedforward, supporting directional scaling and friction compensation

Position and Speed/Hydraulic Combination: PID with speed and acceleration feedforward, direction scaling and friction compensation

Gain resolution: 32-bit floating-point

Absolute position range: 4,294,967,296 sensor count

Servo loop rate: Selectable 500 Hz, 666.7 Hz, 1 kHz, 2 kHz, 4 kHz

Input:

Synchronous Serial Interface (SSI) : 8 to 31-bit resolution, binary or Gray code sensor

Clock frequency: 208 kHz or 625 kHz

Signal type: 5V differential (RS-422 signal)

Input voltage: Nominal 24V DC, on state 17-26.4V DC, off state up to 3V DC

Input impedance: 7.5 kΩ

Output:

Two analog outputs: ±10V DC (reference signal for speed or torque), minimum load impedance 100 Ω

Two drivers enable output (photoelectric isolation, current source type, 24V DC)

Backplane current

At 5.1V DC: 700 mA

At 24V DC: 2.5mA

Power consumption: Maximum 5.1W

Heat dissipation: 17.4 BTU/ hour

Isolation voltage: 30V (continuous) from user to system

Module Location: 1756 ControlLogix rack (any slot)

Terminal block: 36-pin detachable terminal block (RTB, 1756-TBCH or 1756-TBS6H)

Terminal screw torque: Maximum 0.5 Nm (4.4 inches - pounds)

Wire size: #22 to #14 AWG (0.324 to 2.08 square millimeters)

Operating temperature: 0 to 60°C (32 to 140°F)

Storage temperature: -40 to 85°C (-40 to 185°F)

Relative humidity: 5% to 95% (non-condensing)

Vibration resistance: 2g (10 to 500 Hz)

Operating impact: 30g

Non-operational impact: 50g

Certifications: CE, Australian RCM, UL, CSA, etc

Life cycle status: Discontinued

Function

Dual-axis servo control: Supports 2-axis open-loop or closed-loop motion control, suitable for drivers/actuators that require ±10V speed or torque reference.

SSI feedback support: It provides synchronous serial interface (SSI) feedback with a resolution of 8 to 31 bits, supports binary or Gray code sensors, and ensures high-precision position feedback.

Advanced control algorithm

Position loop: PID with speed feedforward.

Velocity loop: PI with acceleration feedforward, supporting directional scaling and friction compensation.

Position and speed/hydraulic combined control, suitable for hydraulic drive or speed control applications.

Flexible input/output:

Analog output (±10V) is used for speed or torque control.

Registration input, origin limit switch and driver fault input support rapid event detection.

The driver enables output for direct control of the servo driver.

Modular integration: It can be installed on a ControlLogix rack and work in conjunction with processor modules (such as 1756-L55), supporting multi-module configuration (up to 16 modules per controller).

Diagnosis and Monitoring: It provides LED indicator lights (OK, servo status, input/output status), supporting real-time fault diagnosis and status monitoring.

Programming support: Configured through Studio 5000 Logix Designer or RSLogix 5000, motion instructions (such as MAJ, MAM) are supported.

Application scenarios

Manufacturing industry

Automated assembly: Control servo-driven assembly lines or robot axes to achieve high-precision positioning.

Packaging machinery: Drive high-speed packaging equipment (such as cutting and sealing), ensuring shaft synchronization and efficiency.

CNC machine tools: Used for precise control of processing axes to improve processing quality.

Process industry

Food and Beverage: Control the servo axes of conveyor belts or filling equipment to ensure efficient production.

Pharmaceuticals: Used in pharmaceutical packaging equipment, it provides high-precision motion control to meet compliance requirements.

Logistics and Warehousing

Automated warehouse: Control the servo axes of stacker cranes or conveyor belts to optimize material handling.

AGV (Automated Guided Vehicle) : Achieves precise path control driven by servo.

Printing and Textile

Printing press: The servo shaft that controls the printing cylinder ensures high-quality printing.

Textile machinery: Servo control for spinning or weaving equipment to enhance production efficiency.

Energy and Infrastructure

Wind power generation: The servo system that controls the blade adjustment mechanism optimizes motion accuracy.

Water treatment: It is used for servo control in pumping stations or valves to enhance system stability.
