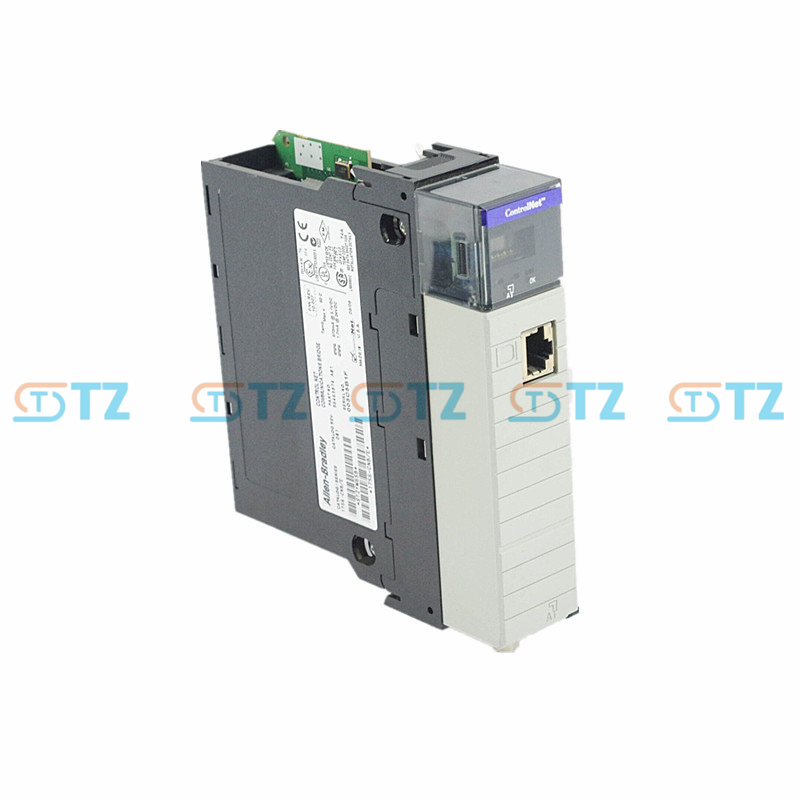

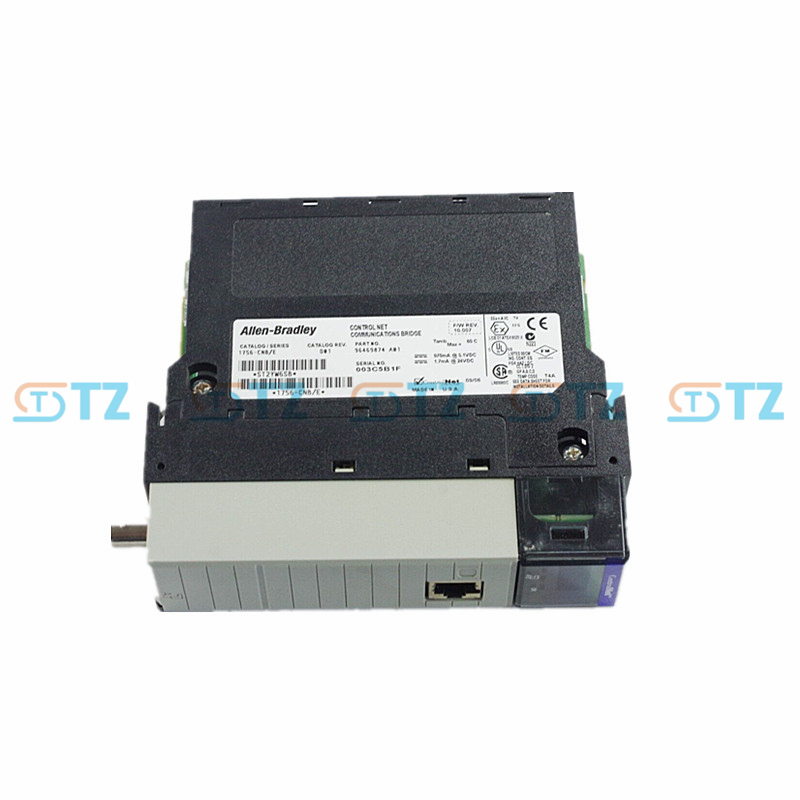

1756-CNB Allen Bradley Rockwell ControlNet Communication Interface Module

Product parameters

Product type: Allen-Bradley 1756-CNB, ControlLogix ControlNet Bridge Module

Communication protocol: ControlNet

Supported node count: up to 99 nodes

Communication rate: 5 Mbps

Number of communication connections: 40-48 Logix communication connections, with a maximum support of 64 bidirectional connections

Port:

1 BNC connector (for non-redundant ControlNet networks)

One NAP (RJ-45 8-pin with shielding, for network access)

Message buffer: Up to 20 unconnected message buffers are supported

Backplane current

At 5.1V DC: 970 mA

At 24V DC: 1.7mA

Power consumption: Maximum 5.14W

Heat dissipation: 17.4 BTU/ hour

Isolation voltage: 30V (from user to system, continuous)

Module Location: 1756 ControlLogix rack (any slot)

Terminal block: Use ControlNet coaxial cable (1786-RG6 four-shielded RG6 coaxial cable)

Operating temperature: 0 to 60°C (32 to 140°F)

Storage temperature: -40 to 85°C (-40 to 185°F)

Relative humidity: 5% to 95% (non-condensing)

Vibration resistance: 2g (10 to 500 Hz)

Operating impact: 30g

Non-operational impact: 50g

Shell type: Open type (no protection grade)

Certifications: CE, CSA, RCM, UL, etc

Life cycle status: Discontinued

Function

ControlNet network bridging: Provides an interface between the ControlLogix rack and the ControlNet network, supports non-redundant network configuration, and works in conjunction with the Logix5550 controller to control I/O data (planned and unplanned data).

Data bridging: Bridge the ControlLogix backplane data to the ControlNet network to support cross-network data exchange.

High-performance communication: Supports a communication rate of 5 Mbps, suitable for real-time data transmission, and compatible with other ControlNet modules of the Allen-Bradley platform (such as Flex I/O, POINT I/O, SLC, PLC5).

Distributed I/O support: It can be used in distributed I/O architectures, connecting multiple ControlLogix I/O racks to achieve large-scale system integration.

Multi-protocol bridging: Supports data bridging across different protocol networks (such as EtherNet/IP) to enhance system flexibility.

Diagnosis and Monitoring: Status monitoring and fault diagnosis are provided through RSLogix 5000 or Studio 5000 Logix Designer, with module LED display communication and module status.

Modular design: Single-slot module, which can be installed in any slot of the ControlLogix rack, compatible with both standard and redundant power supply configurations.

Application scenarios

Manufacturing industry

Automated production line: It is used for distributed I/O control, connecting multiple ControlLogix racks to achieve high-speed data exchange on the production line.

Packaging equipment: The I/O module that controls the packaging machine ensures real-time synchronization and precise operation.

Process industry

Food and Beverage: Used in distributed control systems, connecting sensors and actuators to optimize production processes.

Oil and gas: Achieve remote I/O monitoring and control to ensure high reliability and real-time data transmission.

Logistics and Warehousing

Automated warehouse: Connect distributed I/O modules to control conveyor belts and sorting systems, and improve logistics efficiency.

AGV system: Multi-device coordinated control is achieved through the ControlNet network.

Energy and Infrastructure

Power distribution: Connect distributed control devices to monitor and control the power system.

Water treatment: Used for distributed pumping stations and valve control to ensure system stability and data consistency.

Cross-network integration: It is used to bridge ControlNet with other networks (such as EtherNet/IP) to achieve seamless communication between devices of different protocols.
