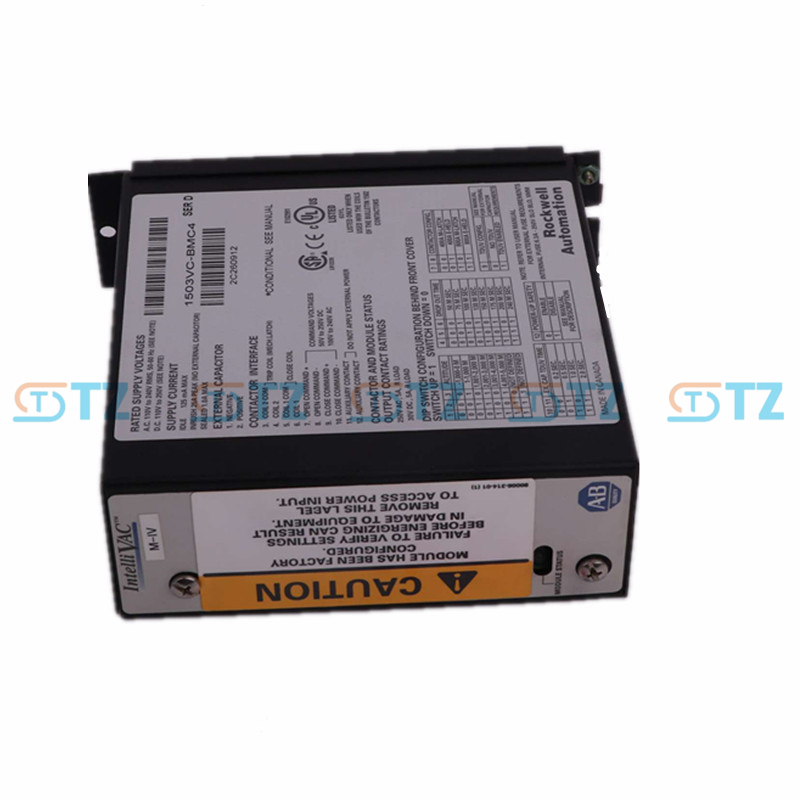

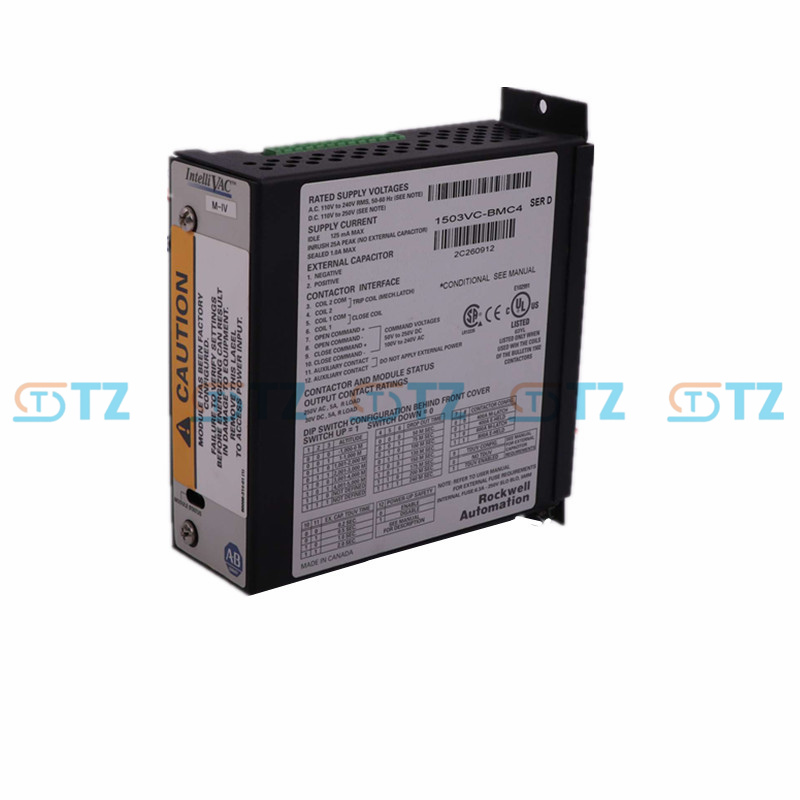

1503VC-BMC4 Allen Bradley Intellivac Contactor Control Module

Product parameters

Module type: IntelliVAC contactor control module

Compatible contactors: Bulletin 1502 Medium pressure vacuum contactors (400A and 800A, electrically held or mechanically held type)

Power supply requirements:

Input voltage: 110-240V AC (50/60 Hz) or 110-250V DC

Maximum current: 125 mA (idle state)

Control voltage:

Contactor closure: 3000 mA @ 110V DC (typical value)

Contactor holding: 100 mA @ 110V DC (typical value)

Output type: Solid-state output, used for controlling the contactor coil

Configuration method: DIP switch (used for setting the closing time, holding current, etc.)

Relay output: 2 auxiliary relays (for status feedback)

Rated value: 5A @ 250V AC or 30V DC

Communication interface: There is no built-in communication port. Network integration needs to be achieved through an external PLC (such as 1756-L65) or DeviceNet module (such as 20-750-DENC-1)

Operating temperature: 0°C to 60°C (32°F to 140°F)

Storage temperature: -40°C to 85°C (-40°F to 185°F)

Humidity: 5% to 95% (non-condensing)

Certification: UL, cULus, CE, in compliance with medium voltage control standards

Installation method: Integrated in the Bulletin 1500/1900 MCC cabinet and fixed to the contactor unit

Installation method: Installed in the Bulletin 1502 contactor unit as a component of the MCC cabinet

Function

Contactor control: Precisely control the closing and opening of the Bulletin 1502 medium-pressure vacuum contactor, supporting electrically held and mechanically held contactors.

Flexible configuration: Adjust the closing time, holding current and operating mode through the DIP switch to meet different motor control requirements.

Diagnosis and Protection: Provide contactor status feedback (such as closed/open status), support overload protection and fault diagnosis.

Relay output: 2 auxiliary relay outputs for feeding back the contactor status to the PLC or other devices.

High reliability: Designed for medium-voltage environments (2.4kV to 7.2kV), ensuring stable operation and long service life.

Modular integration: As part of the MCC cabinet, it is used in conjunction with other control modules (such as PLC or DeviceNet modules).

Application scenarios

Heavy industry: In the steel, mining or cement industries, it controls the start and stop of high-power motors (such as pumps, fans, compressors).

Petroleum and natural gas: In oil refineries or pipeline systems, manage the operation and protection of medium-voltage motors.

Power facilities: Contactors that control critical loads in power plants or substations.

Manufacturing industry: On large-scale production lines, integrate with PowerFlex drives (such as those equipped with 20-750-DENC-1) or ControlLogix PLCS (such as 1756-L65) to manage motor control.

MCC cabinet upgrade: For the maintenance or renovation of Bulletin 1500/1900 MCC, providing modern contactor control.
