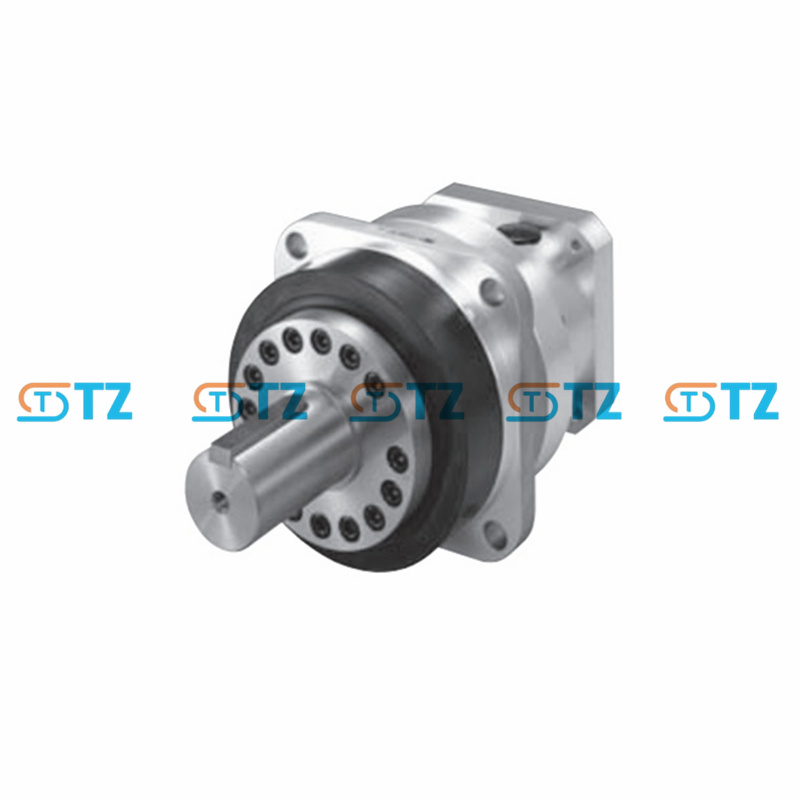

OMRON R88G-HPG32A211K0BJ Decelerator

Product parameters

Type: reducer (Decelerator for Cylindrical Servomotors)

Applicable motor power: 1-2 kW (nominal 1 kW, suitable for 3000 r/min servo motors)

Reduction ratio: 1/21

Backlash: Maximum 3 arc minutes (high precision)

Shaft type: Straight shaft, with keyway and threaded hole (model suffix "J")

Protection grade: IP65 (Standard, excluding the rotating part of the output shaft and the lead end)

Environmental conditions: Operating temperature: 0 to 40°C

Operating humidity: Maximum 85% RH (no condensation)

Storage temperature: -20 to 60°C

Storage humidity: Maximum 85% RH (no condensation)

Operating environment: No corrosive gases

Vibration resistance: 10 to 60 Hz, double amplitude 0.1 mm or maximum acceleration 5.88 m/s² (X, Y, Z directions)

Impact resistance: Maximum acceleration of 19.6 m/s², twice each in the X, Y, and Z directions

Insulation resistance: ≥ 0.5M Ω (500 VDC) between the power supply/power line terminal and the frame ground

Dielectric strength: Between the power supply/power line terminal and the frame ground, 1500 VAC, 1 minute (50/60 Hz)

Certification standards: EMC: EN 55011, EN 61000-6-2, EN 61800-3

Low voltage: EN 61800-5-1

UL: UL 508C

CSA: CSA C22.2 No.14

Korean Radio Regulations (KC) : Certified

Function

High-precision reduction: With a reduction ratio of 1/21, it provides high torque output and is suitable for applications that require high loads and precise control

Low backlash: Backlash ≤ 3 arc minutes, ensuring high positioning accuracy

Compatibility: Compatible with G5 series and 1S series servo motors and drivers, supporting incremental or absolute encoders

Durable design: IP65 protection rating, suitable for various industrial environments, with excellent vibration and shock resistance

Flexible installation: The straight shaft design with keyways and threaded holes facilitates connection with mechanical systems

High dynamic performance: Supports 3000 r/min servo motors, providing rapid response and stable operation

Application scenarios

Industrial automation: Used in CNC machine tools and automated assembly lines to perform high-precision positioning tasks

Robot technology: Applicable to robot joint drive, meeting the requirements of high torque and stability

Packaging machinery: Achieve smooth and efficient motion control of packaging equipment

Material handling: It is used in scenarios such as conveyor belts and handling robots that require high torque output

Semiconductor manufacturing: Providing high precision and high dynamic performance in wafer processing equipment

Printing equipment: Supports high-speed and precise motion control of printing machines.
