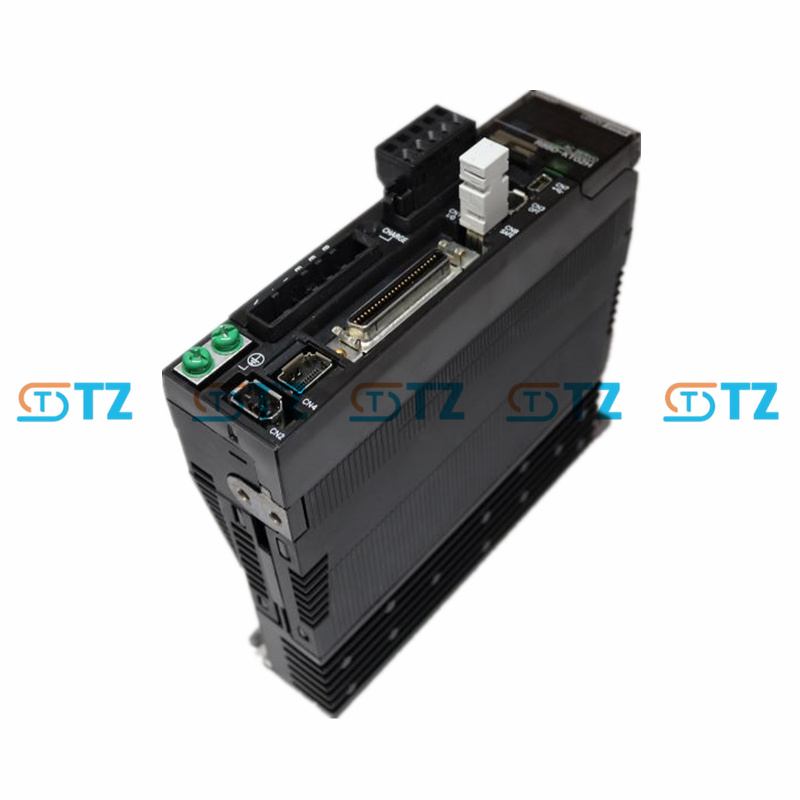

OMRON R88D-KT01L AC SERVO DRIVE G5 SERIES

Product parameters

Servo control mode: Pulse train or analog input

Rated output power: 100 W

Input power supply: Main circuit: Power capacity: 0.4 KVA

Power supply voltage: Single-phase 100-120 VAC (85-132 V), 50/60 Hz

Rated current: 2.6A

Calorific value: 16.6 W

Control circuit: Power supply voltage: Single-phase 100-120 VAC (85-132 V), 50/60 Hz

Calorific value: 4 W

Output current: Continuous output current (RMS) : 1.7 A

Maximum current: 3.6 Arms

Environmental conditions: Operating temperature: 0 to 55°C

Operating humidity: Maximum 85% RH (no condensation)

Storage temperature: -20 to 65°C

Storage humidity: Maximum 85% RH (no condensation)

Operating environment: No corrosive gases

Vibration resistance: 10 to 60 Hz, double amplitude 0.1 mm or maximum acceleration 5.88 m/s²

Impact resistance: Maximum acceleration of 19.6 m/s², twice each in the X, Y, and Z directions

Insulation resistance: ≥ 0.5M Ω (500 VDC) between the power supply/power line terminal and the frame ground

Dielectric strength: Between the power supply/power line terminal and the frame ground, 1500 VAC, 1 minute (50/60 Hz)

Protection level: Built-in on the panel (No specific IP level, please refer to the installation environment)

International standards: EMC: EN 55011, EN 61000-6-2, IEC 61800-3

Low voltage: EN 61800-5-1

Mechanical safety: EN 954-1 (Cat.3), EN ISO 13849-1 (PLc,d), EN 61508 (SIL2), EN 62061 (SIL2), EN 61800-5-2 (STO)

UL standard: UL 508C

CSA standard: CSA C22.2 No.14

Korean Radio Regulations (KC) : Certified

Function

Pulse/Analog control: Supports Pulse Train or analog input control, compatible with traditional PLCS or controllers, suitable for simple positioning applications

Control mode: Position control (pulse train input)

Speed control (analog input)

Torque control (analog input)

Built-in locator (Drive Programming function, needs to be configured through CX-Drive software)

Compatibility: Compatible with G5 series 3000 r/min servo motors, supporting incremental or absolute encoders

Safety features: Built-in safety torque turn-off (STO), in compliance with EN 61800-5-2 standard

Interface: Supports Serial and USB interfaces, facilitating configuration and debugging

High-precision control: Supports high-resolution feedback encoders (20 bits) to ensure precise positioning

Software support: Parameter setting and motion programming can be performed via CX-Drive or Sysmac Studio, which is suitable for simple positioning tasks

Application scenarios

Simple positioning applications: used in scenarios such as assembling machines, sorting devices, picking and placing devices, etc., where pulse or analog control is required

Industrial automation: Achieving high-precision positioning in small and medium-sized automated production lines

Packaging machinery: Supports the smooth motion control of packaging equipment

Material handling: Used for conveyor belts or small handling systems to provide stable operation

Small-scale automated equipment: Suitable for low-power (100W) scenarios, such as light machinery or small assembly equipment

Traditional control system: Suitable for traditional PLC control environments that do not use EtherCAT or MECHATROLINK-II
