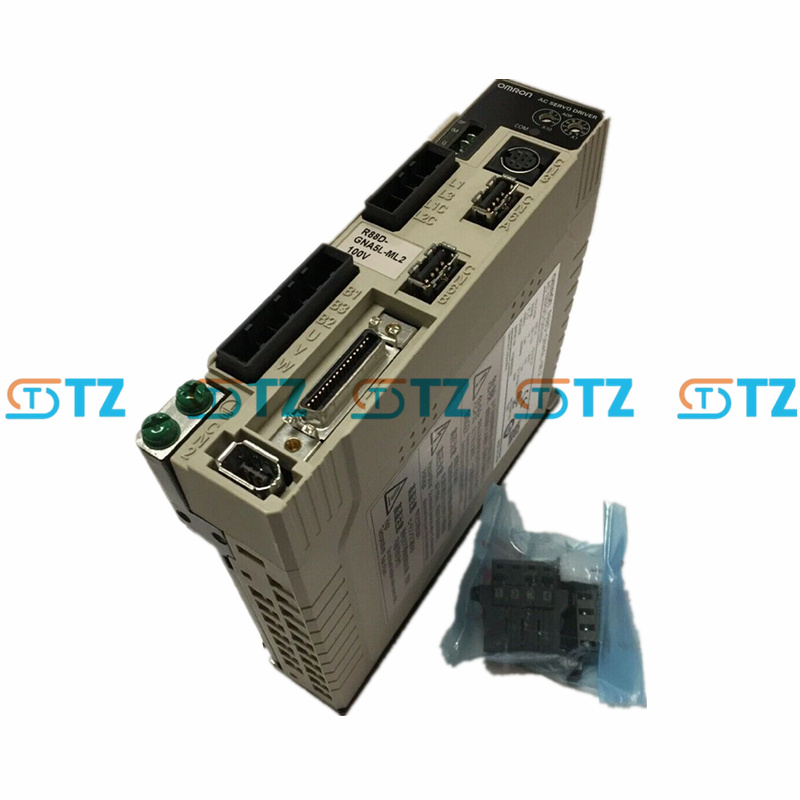

OMRON R88D-GNA5L-ML2 AC SERVO DRIVE G SERIES

Product parameters

Operating environment temperature and humidity: 0 to 55°C, maximum 90% RH (no condensation)

Storage environment temperature and humidity: -20 to 65°C, maximum 90% RH (no condensation)

Working and storage environment: No corrosive gases

Vibration resistance: 10 to 60 Hz, double amplitude 0.1 mm or maximum acceleration 5.88 m/s² (X, Y, Z directions)

Impact resistance: Maximum acceleration of 19.6 m/s², twice each in the X, Y, and Z directions

Insulation resistance: Minimum 0.5 MΩ (500 VDC) between the power supply/power line terminal and the frame ground

Dielectric strength: 1500 VAC between the power supply/power line terminal and the frame ground for 1 minute (50/60 Hz)

Protective structure: Built into the panel (IP10)

International standards: EU Directives and UK regulations: EMC, low voltage

UL standard: UL 508C

CSA standard: CSA C22.2 No.14

Korean Radio Regulations (KC) : Certified

Electrical characteristics (100 VAC input model) Continuous output current (rms) : 1.3A

Instantaneous maximum output current (rms) : 3.9A

Main circuit power supply: Power capacity: 0.4 KVA

Power supply voltage: Single-phase 100 to 115 VAC (85 to 127 V), 50/60 Hz

Rated current: 1.4A

Control circuit power supply: Power supply voltage: Single-phase 100 to 115 VAC (85 to 127 V), 50/60 Hz

Rated current: 0.09A

Heat output: Main circuit: 10.1W

Control circuit: 4.4W

Control method: All-digital servo

Inverter method: IGBT-driven PWM method

PWM frequency: 12.0 kHz

Maximum applicable motor capacity: 50 W

Applicable servo motor (R88M-) : 3000 r/min Servo motor (incremental type) : G05030H

3000 r/min servo motor (absolute type) : G05030T

Performance: Speed control range: 1:5000

Speed change rate: Load characteristic: 0% to 100% (at rated speed) ≤ 0.01%

Voltage characteristic: 0% at ±10% of rated voltage (at rated speed)

Temperature characteristic: ≤ ±0.1% at 0 to 50°C (at rated speed)

Torque control reproducibility: ±3%

Function

MECHATROLINK-II communication: Supports high-speed, real-time motion control, simplifies connection with the controller, and saves wiring space.

All-digital servo control: High-precision speed and position control is achieved through the PWM method driven by IGBT.

Real-time self-tuning: Supports automatic gain adjustment to optimize performance.

Absolute encoder support: It can be used in conjunction with absolute encoder servo motors.

Protective functions: including overload protection, overvoltage protection and electronic thermal function, to ensure the safe operation of the equipment.

Application scenarios

Small machinery: such as packaging machines, labeling machines, printing machines, etc., require precise position and speed control.

Automated production line: used for motion control of equipment such as conveyor belts and mechanical hands.

Electronic manufacturing: such as SMT equipment, dispensing machines, testing equipment, etc., requires high dynamic response.

Robot technology: Servo drives for small robots or mechanical arms, providing precise motion control.

Other precision applications: such as medical equipment, textile machinery, etc., require stable and efficient servo systems.
