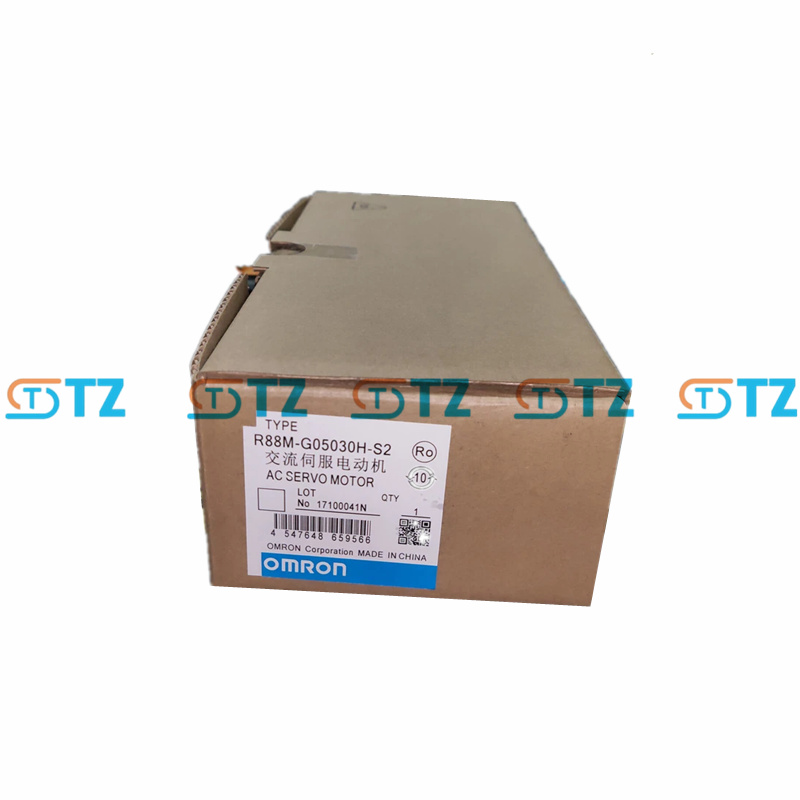

OMRON R88M-G05030H AC SERVO DRIVE G SERIES

Product parameters

Ambient operating temperature and humidity: 0 to 40°C, maximum 85% RH (no condensation)

Environmental storage temperature and humidity: -20 to 65°C, maximum 85% RH (no condensation)

Working and storage environment: No corrosive gases

Vibration resistance: 10 to 2500 Hz, with maximum acceleration of 49 m/s² in the X, Y, and Z directions

Impact resistance: The maximum acceleration in the X, Y, and Z directions is 98 m/s², three times

Insulation resistance: Minimum 20 MΩ (500 VDC) between the power terminal and the frame ground

Dielectric strength: 1500 VAC between the power terminal and the frame ground for 1 minute (50/60 Hz)

Protection grade: IP65 (excluding the rotating part of the output shaft and the lead end)

Insulation class: Type B

Structure: Fully enclosed self-cooling

Installation method: Flange installation

International standard: EU Directive and UK Regulation: Low Voltage (IEC 60034-1/-5)

UL standard: UL1004-1

CSA standard: CSA 22.2 No.100

Electrical and mechanical characteristics: Rated output power: 50 W

Rated speed: 3000 r/min

Rated torque: 0.16 Nm

Peak torque: 0.45 Nm

Power supply voltage: 200 VAC single-phase

Encoder type: Incremental

Encoder resolution: 13 bits (10,000 steps per revolution)

Shaft diameter: 8mm

Shaft features: With keyway, no oil seal

Whether the motor has a brake: No brake

Peak performance torque: 300% of the rated torque, sustainable for 3 seconds or longer

Speed control range: 1:5000

Speed change rate: Load characteristic: 0% to 100% (at rated speed) ≤ 0.01%

Voltage characteristic: 0% at ±10% of rated voltage (at rated speed)

Temperature characteristic: ≤ ±0.1% at 0 to 50°C (at rated speed)

Torque control reproducibility: ±3%

Function

High-precision control: The 13-bit incremental encoder offers high-resolution feedback, making it suitable for precise position and speed control.

Compact design: Small-sized flanges and low weight, suitable for equipment with limited space.

High dynamic response: Peak torque up to 300% of the rated torque, suitable for rapid acceleration/deceleration scenarios.

Multi-control mode compatibility: Supports position control, speed control and torque control.

Protection performance: IP65 protection grade, suitable for various industrial environments.

Simple integration: Supports MECHATROLINK-II, analog or pulse input, compatible with multiple servo drives, facilitating system integration.

Application scenarios

Small-scale automated equipment, such as packaging machines, labeling machines, and printing machines, requires precise motion control.

Electronic manufacturing: SMT equipment, dispensing machines, and testing equipment require high dynamic response and stability.

Lightweight robots: Small mechanical arms or robot joints that require compact and efficient servo systems.

Transmission system: Small conveyor belts or logistics equipment, requiring smooth speed control.

Textile and medical equipment: such as textile machinery or medical testing equipment, which require low noise and high precision.
