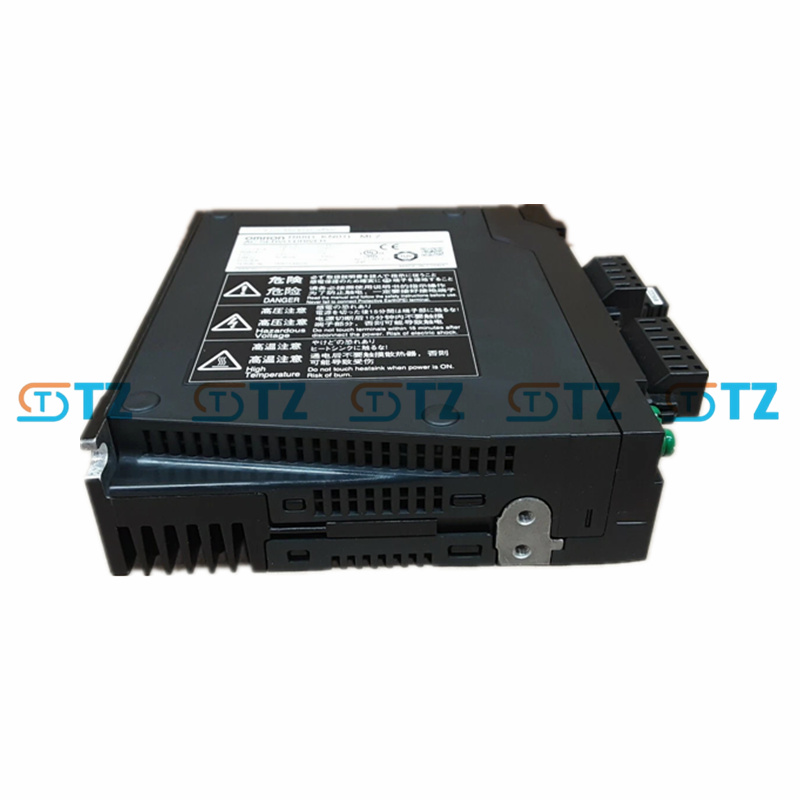

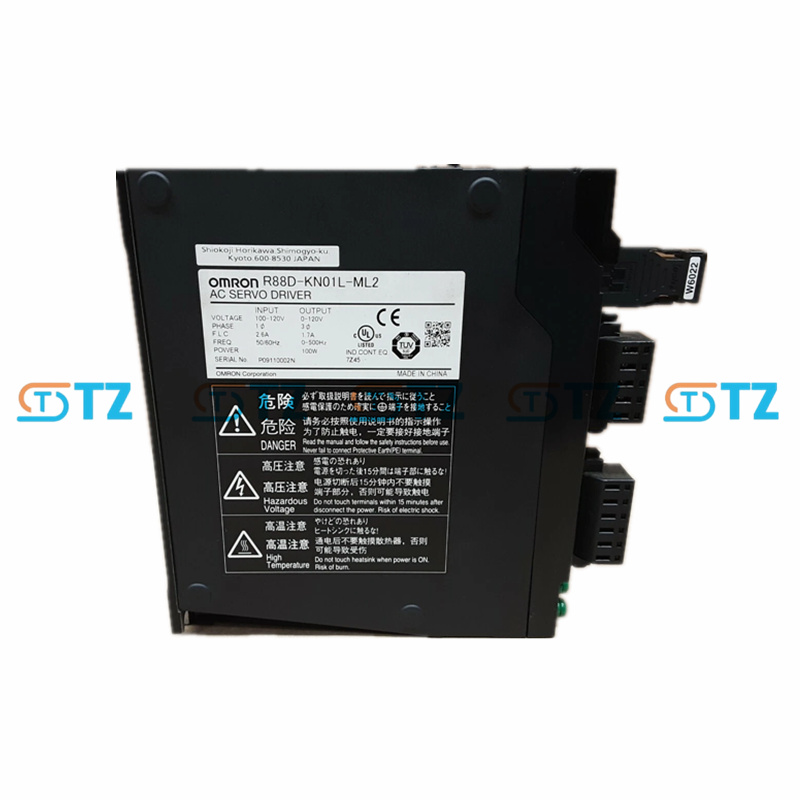

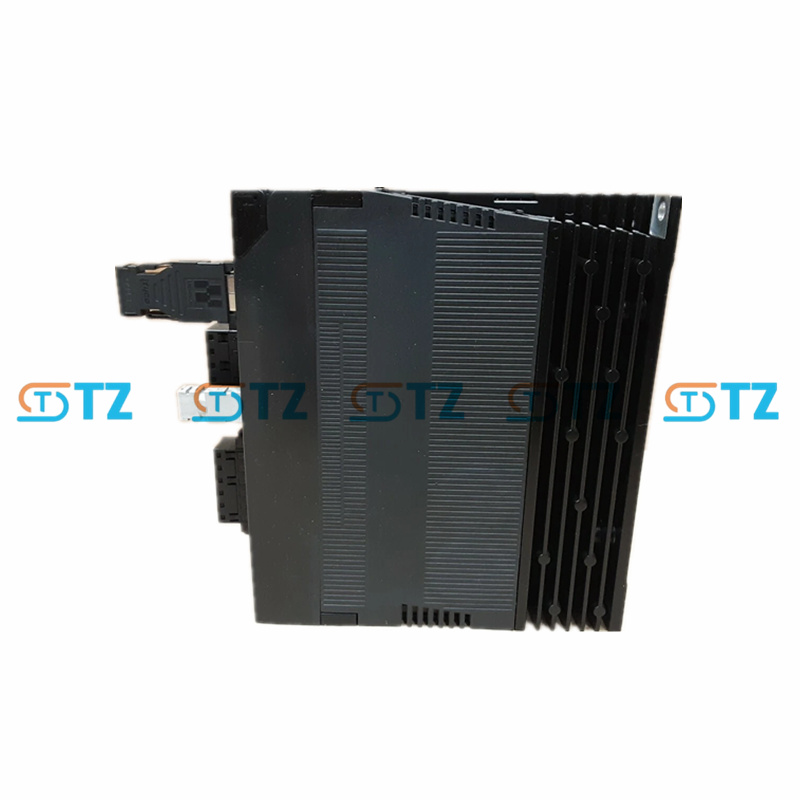

OMRON R88D-KN01L-ML2 AC SERVO DRIVER G5 SERIES

Product parameters

Servo control mode: MECHATROLINK-II

Rated output power: 100 W

Input power supply: Main circuit: Power capacity: 0.5 KVA

Power supply voltage: Single-phase 100-120 VAC (85-132 V), 50/60 Hz

Rated current: 2.6A

Calorific value: approximately 14W

Control circuit: Power supply voltage: Single-phase 100-120 VAC (85-132 V), 50/60 Hz

Calorific value: approximately 4 watts

Output current: Continuous output current (RMS) : 1.7 A

Maximum current: 3.6 Arms

Environmental conditions: Operating temperature: 0 to 55°C

Operating humidity: Maximum 90% RH (no condensation)

Storage temperature: -20 to 65°C

Storage humidity: Maximum 90% RH (no condensation)

Operating environment: No corrosive gases

Vibration resistance: 10 to 60 Hz, double amplitude 0.1 mm or maximum acceleration 5.88 m/s² (X, Y, Z directions)

Impact resistance: Maximum acceleration of 19.6 m/s², twice each in the X, Y, and Z directions

Insulation resistance: ≥ 0.5M Ω (500 VDC) between the power supply/power line terminal and the frame ground

Dielectric strength: Between the power supply/power line terminal and the frame ground, 1500 VAC, 1 minute (50/60 Hz)

Protection grade: Built into the panel

International standards: EMC: EN 55011, EN 61000-6-2, EN 61800-3

Low voltage: EN 61800-5-1

Mechanical safety: EN 954-1 (Cat.3), EN ISO 13849-1 (PLc,d), EN 61508 (SIL2), EN 62061 (SIL2), EN 61800-5-2 (STO)

UL standard: UL 508C

CSA standard: CSA C22.2 No.14

Korean Radio Regulations (KC) : Certified

Installation method: Chassis Mount

Function

MECHATROLINK-II communication: Supports MECHATROLINK-II network (IEC 61158), providing high-speed and deterministic motion control, suitable for multi-axis synchronous applications

Control mode: Position control

Speed control

Torque control

Contour position pattern

Return mode

Touch detection function

Compatibility: Compatible with G5 series 3000 r/min servo motors, supporting incremental or absolute encoders

Safety features: Built-in safety torque turn-off (STO), in compliance with EN 61800-5-2 standard

Interface: MECHATROLINK-II and USB interface, convenient for configuration and debugging

High-precision control: Supports high-resolution feedback encoders (20 bits) to ensure precise positioning and motion control

Dynamic performance: Suitable for applications with high response speeds and medium to small loads

Application scenarios

Industrial automation: Used in CNC machine tools and automated production lines to perform high-precision positioning tasks

Robot technology: Applicable to robot joint drive, meeting the requirements of high response speed and stability

Packaging machinery: Achieve rapid and smooth motion control of packaging equipment

Material handling: Used in conveyor belts and automated handling systems to ensure efficient and stable operation

Printing equipment: Supports high-speed and precise motion control of printing machines

Small-scale automated equipment: Suitable for low-power (100W) scenarios, such as small assembly equipment or light machinery
