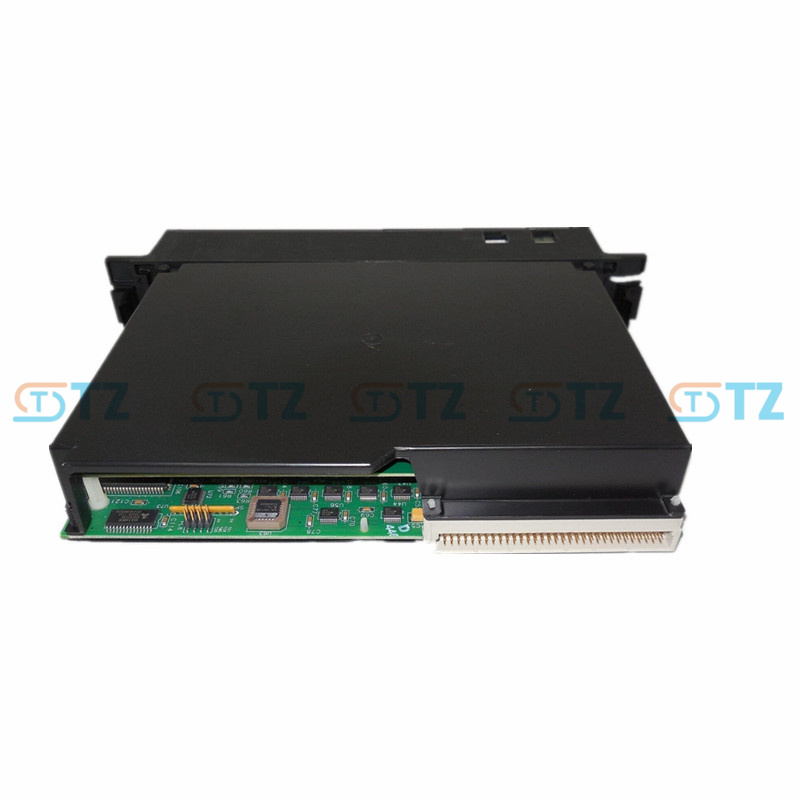

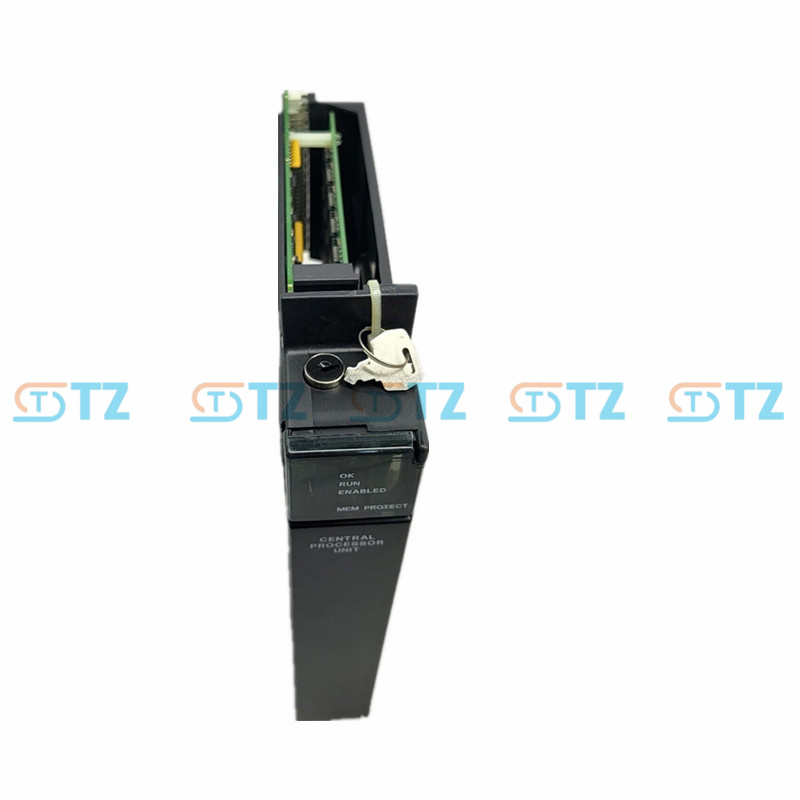

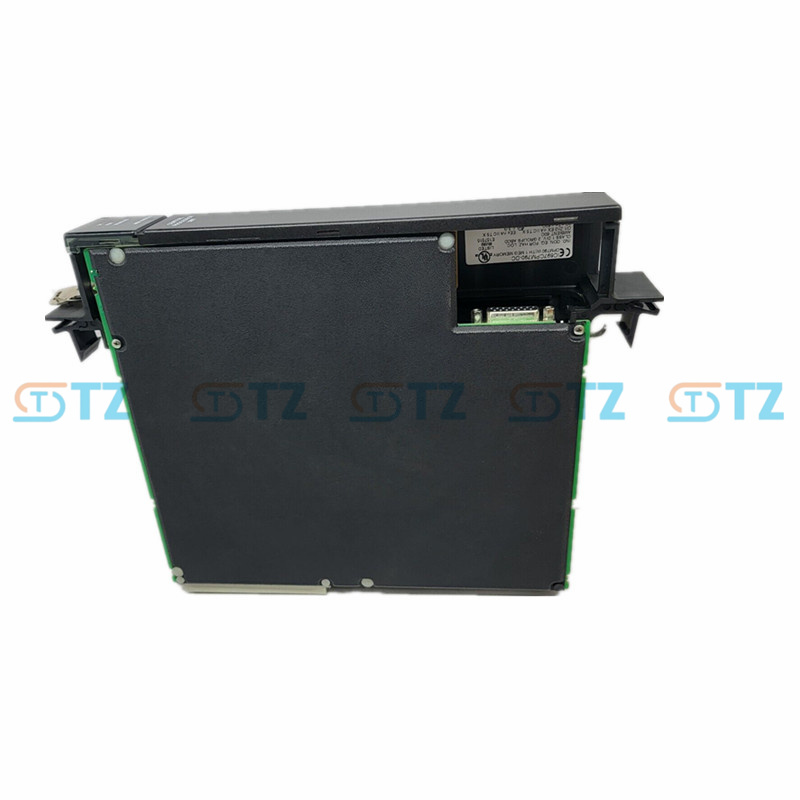

IC697CPM790 GE Fanuc Series 90-70 Floating Point Central Processing Unit

Product parameters

Core specifications: 32-bit high-performance microprocessor, supporting real-time multi-task scheduling; It is equipped with 4MB of user program memory and 8MB of data memory. Redundant architecture design

Computing performance: Boolean instruction execution time ≤0.08μs per instruction, integer operation time ≤0.2μs per instruction, floating-point operation time ≤2μs per instruction

Maximum supported I/O points: 2048 local points, with no limit on remote I/O

The communication interface is equipped with one 10/100Mbps Ethernet interface, one PROFIBUS DP master station interface, and one programming and debugging interface. Support redundant communication link configuration

Redundancy feature: Supports CPU hot standby redundancy, with a switching time of ≤10ms; Supports automatic program synchronization, real-time data mirroring, and disturbance-free switching in case of faults

Expansion capability: Compatible with all Series 90-70 I/O modules, with a maximum expansion of 16 modules on a single backplane. Support multi-backplane remote expansion

Working power supply: 5V DC, typical power consumption ≤25W; Supports dual redundant power module power supply to ensure uninterrupted switching in case of power failure

Operating temperature: 0°C to 60°C, storage temperature: -40 °C to +85°C; Humidity: 5%-95% RH (no condensation)

Certification and Standards: Compliant with CE, UL, CSA, IECEx, and ATEX certifications; Supports the IEC 61131-3 programming standard and is compatible with the GE Fanuc redundant system specification

Software support: Compatible with GE Fanuc VersaPro and Logicmaster 90-70 programming software; Supports redundant system configuration, online monitoring, fault diagnosis and program synchronization functions

Function

High-end redundancy fault-tolerant control: Supports hot standby redundancy architecture. When configured in pairs, it can achieve real-time synchronization of programs and data. Faulty cpus can be automatically switched without disturbance to avoid system downtime and meet the "zero interruption" control requirements in critical scenarios.

Ultimate computing and processing performance: A 32-bit high-performance core combined with a high-speed computing unit can quickly execute complex logic control, multi-variable closed-loop control, high-level mathematical operations, and massive data processing, meeting the real-time control requirements of large-scale automation systems.

Multi-protocol high-reliability communication: Equipped with dual-core communication interfaces of Ethernet and PROFIBUS DP, it supports redundant communication link design, enabling the construction of distributed control networks. It can stably connect remote I/O, intelligent instruments, frequency converters, SCADA systems, etc., ensuring no packet loss and low latency in data transmission.

Comprehensive expansion and compatibility: Compatible with all Series 90-70 modules, supports multi-backplane expansion and cross-regional distributed deployment, can be flexibly expanded according to project scale, and is adaptable to various scenarios ranging from large single equipment to cross-factory collaborative control.

Comprehensive fault diagnosis and protection: It is equipped with self-diagnosis functions for faults in all dimensions such as CPU status, communication links, I/O modules, and power supplies, and provides intuitive feedback of fault information through LED indicator lights and software logs. Supports program backup/recovery, password access control, and memory key switch protection to ensure system security and data integrity.

Information integration capability: Supports communication with MES/ERP systems, capable of uploading production data, equipment status, fault records and other information, achieving production process traceability, remote monitoring and operation and maintenance management, and meeting the information requirements of Industry 4.0.

Application scenarios

Petrochemical and oil and gas industry: Core control systems for large oil refineries, long-distance oil and gas pipelines, and offshore drilling platforms, responsible for process control of reaction vessels, interlocking of pipeline transportation, and control of emergency shutdown systems (ESD). Redundant design ensures uninterrupted operation of the system under extreme working conditions.

The power and energy industry: main control systems of thermal power plants and nuclear power stations, smart grid dispatching centers, and core control units of large-scale energy storage power stations, ensuring the continuous and stable production and transmission of energy and avoiding significant losses caused by shutdowns.

Metallurgical and steel industry: Main controllers for blast furnaces, converters, and continuous casting and rolling production lines in large steel plants, coordinating key processes such as smelting, rolling, and refining, handling a large number of high-speed I/O signals and complex operations, with redundant features ensuring continuous production rhythms and stable product quality.

Chemical and pharmaceutical industries: The core of process control systems in large-scale chemical industrial parks and pharmaceutical production lines, controlling key links such as reaction processes, batching accuracy, and aseptic production environments, meeting the industry's strict requirements for production continuity and product consistency.

Water treatment and environmental protection industry: Main controllers for urban core sewage treatment plants, industrial wastewater treatment systems, and drinking water purification plants, controlling key processes such as aeration, dosing, and disinfection. Redundant design ensures that the water treatment process is not interrupted and avoids environmental pollution risks.

High-end manufacturing: Main control units for semiconductor wafer production lines and core automotive component production lines, coordinating the collaborative operation of high-precision processing equipment, robots, and inspection systems to ensure the stability and yield of high-end manufacturing.
