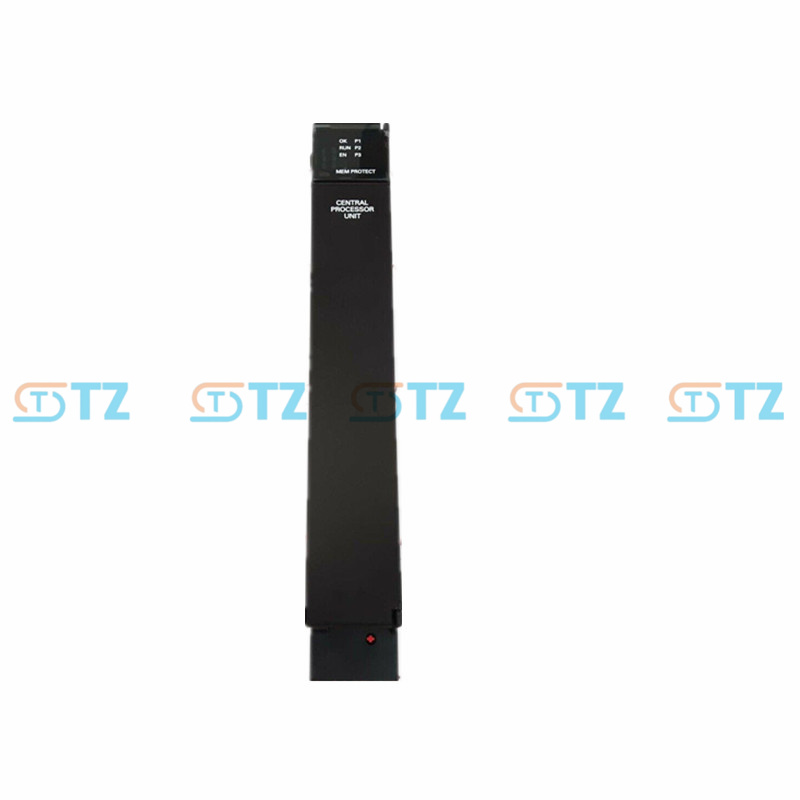

IC697CGR935 GE Fanuc Series 90-70 Central Processing Unit

Product parameters

Module type: Single-slot CPU

Processor: 96MHz 80486DX4 microprocessor

Memory: 1MB CMOS RAM, backed up by battery

Discrete I/O capacity: Supports 12K discrete input/output (arbitrary mix)

Analog I/O capacity: Up to 8K analog I/O

Serial ports: 3, among which port 1 is RS-232 compatible, port 2 is RS-485 compatible (with optocoupler isolation), and port 3 is RS-485 compatible (non-isolated)

Communication interface: Equipped with 1 RJ45 port

Operating temperature: 0 to 50 degrees Celsius

Power supply voltage: 5 volts

Rated current: 3.1 amperes

Function

Redundant control: Supports CPU redundant applications. By installing a pair of IC697CGR935, one serves as the master controller and the other as the slave controller, seamless switching can be achieved when the master CPU fails. It supports two redundant control methods: GHS (Global Hot Standby) and GDB (Global Database).

Operation mode: It can be operated remotely or locally through a three-digit RUN/STOP switch.

Status indication: The front panel is equipped with LED status indicator lights, which can display CPU status, diagnostic information, memory protection status, etc. The LED in the middle left indicates the function of the processor, and the LED at the bottom shows I/O activities.

Floating-point computing: Possessing floating-point computing capabilities, it can efficiently handle complex control tasks.

Communication function: Equipped with 2 ports, the AS693232SNP cable can be connected to either port. It also comes with an RJ45 port for network and communication connections.

Application scenarios

Industrial automated production lines: such as in the automotive manufacturing, electronic manufacturing, food processing and other industries, can achieve control over production equipment. By collecting sensor signals, they can adjust the operating parameters of the equipment in real time to ensure production stability and consistency of product quality.

Energy management: It is applied in fields such as power distribution and energy usage optimization. It collects real-time operation data of power equipment, analyzes energy consumption and makes optimization adjustments to improve energy utilization efficiency.

Logistics and transportation: It can be used to monitor vehicles, goods and traffic flow. By connecting with on-board sensors and traffic monitoring devices, it can obtain real-time information such as vehicle location and speed, and achieve vehicle dispatching and route planning.

Water treatment and environmental protection: In water treatment facilities, water quality, sewage discharge, etc. can be monitored and controlled. Water quality indicators can be monitored in real time and the operation parameters of treatment equipment can be automatically adjusted to ensure that the water quality meets the discharge standards.

Building automation: It can control lighting, HVAC, safety systems, etc. in buildings and facilities, achieve intelligent energy management, and automatically adjust the operating status of equipment according to environmental conditions and usage requirements.
