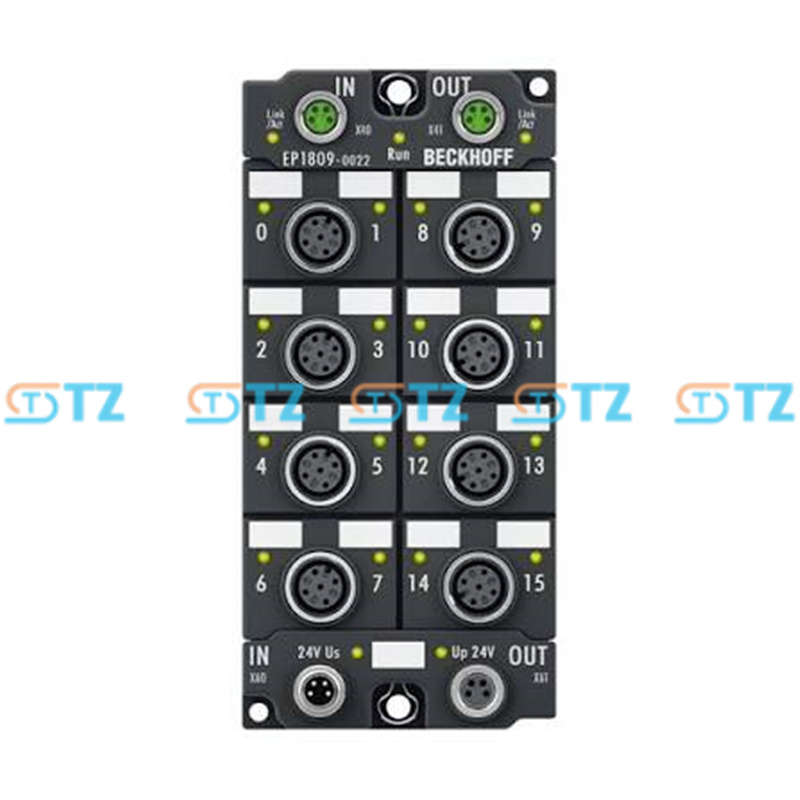

Beckhoff EP1809-0022 EtherCAT Box 16-Channel Digital Input 24 V DC 3 ms M12

It accepts 24 V DC digital input signals according to EN 61131-2, Type 1/3. The nominal input voltage is 24 V DC with an allowable supply range of -15%/+20%. A logical LOW signal is recognized within -3 to +5 V, while a logical HIGH signal is recognized from 11 to 30 V. Typical input current is approximately 3 mA.

The eight M12 input connectors provide a total of 16 digital channels. The integrated 3 ms input filter helps suppress short-duration signal disturbances and provides additional debouncing for mechanical switches and similar input devices.

The module communicates with the higher-level controller through EtherCAT, using two shielded 4-pin M8 connectors for EtherCAT input and forwarding. The connected sensors are supplied from the module's control voltage, with a total short-circuit-protected sensor supply capacity of 0.5 A.

Main Features

• 16 digital inputs
• 24 V DC input signals
• EN 61131-2 Type 1/3 compatible
• 3.0 ms input filter
• Additional signal debouncing
• Suitable for electronic and mechanical inputs
• 8 × M12 input connectors
• 5-pin, A-coded M12 connections
• 2 × M8 EtherCAT interfaces
• EtherCAT communication
• Electrically isolated signal transmission
• 500 V electrical isolation
• LED status indication for input channels
• Short-circuit-protected sensor supply
• Total sensor supply current up to 0.5 A
• IP65/IP66/IP67 protection
• Compact field-mountable housing
• Operating temperature -25…+60 °C
• CE and UL approvals

Application Scope

The EP1809-0022 is suitable for:

• Industrial automation
• PLC control systems
• Factory automation
• Machine control
• Conveyor and material-handling systems
• Sensor signal acquisition
• Limit-switch monitoring
• Proximity-switch monitoring
• Pushbutton and selector-switch monitoring
• Mechanical switch inputs
• Electronic 24 V sensors
• Decentralized EtherCAT I/O systems
• Field-level digital signal acquisition

The 3 ms filter makes this version particularly suitable where mechanical contacts or electronic signals require additional debouncing.
