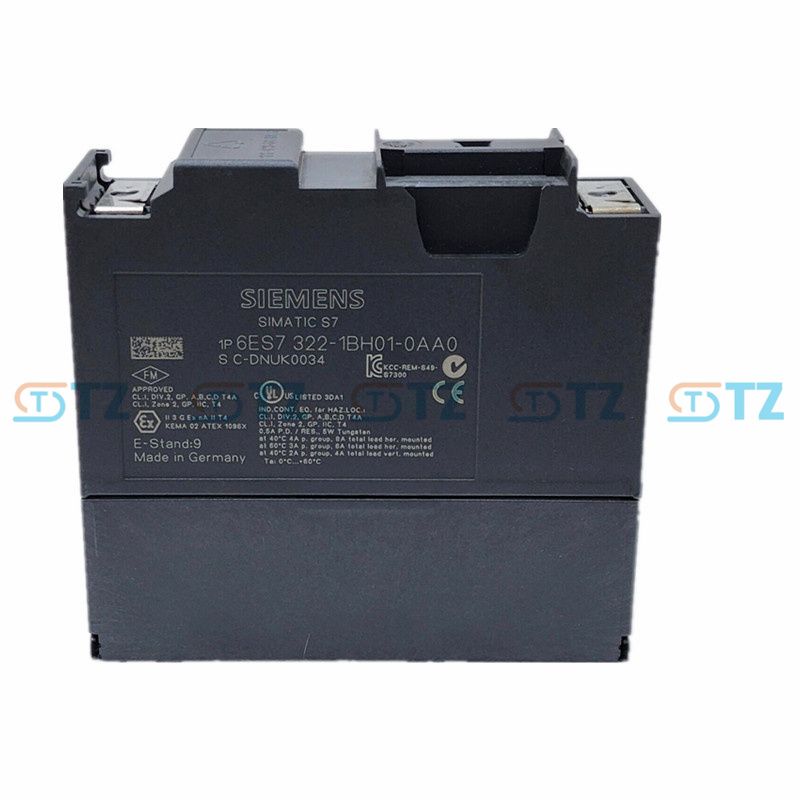

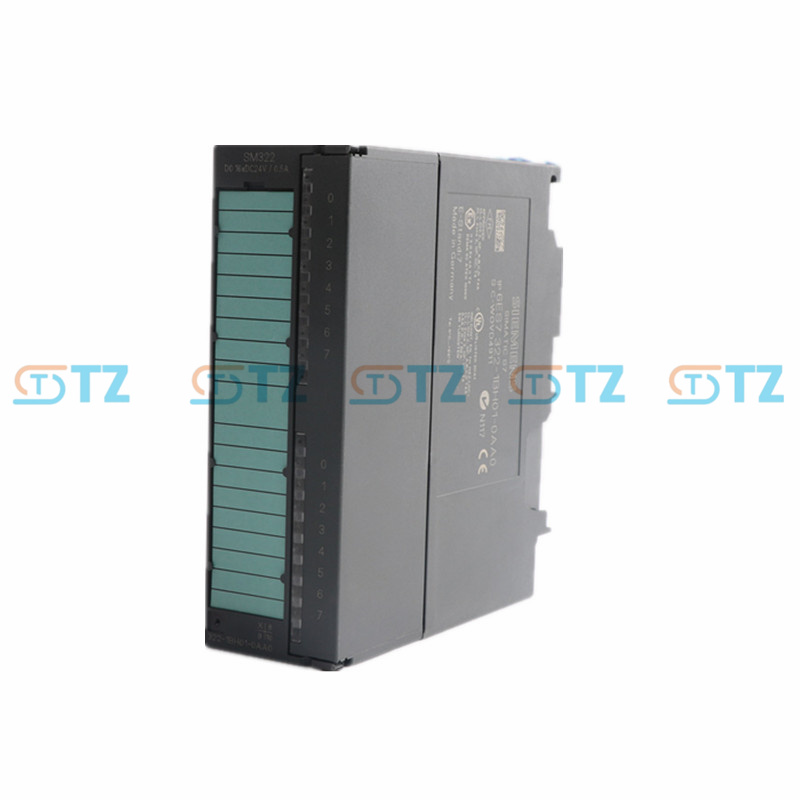

6ES7322-1BH01-0AA0 Siemens Simatic S7-300 Digital I/O Module

Product parameters

Output channel quantity: 16 points.

Output type: Relay output.

Load voltage: AC load is 250V AC, DC load is 30V DC.

Rated current: 2A rated current per point (for resistive loads).

Group design: 16 output points are divided into 2 groups, with 8 points in each group sharing a common terminal (COM).

Mechanical life: The mechanical life of the relay contacts is approximately 100,000 times (under rated load).

Power supply voltage: DC 24V, allowable range: DC 20.4-28.8V.

Isolation: Isolation is achieved through an optocoupler, with an isolation test voltage of DC 500V.

Function

Flexible load driving capability: With relay output, it can drive both AC and DC loads and adapt to various types of field actuators, such as solenoid valves, contactors, indicator lights, etc.

The group design is convenient: The group design allows users to connect two groups of output points to power supplies of different voltage levels respectively, meeting diverse load requirements.

The diagnostic and indication functions are reliable: The module integrates a power indicator light (PWR) and a fault indicator light (SF). Each output point is also equipped with an LED status light, which is convenient for users to determine the communication and output status of the module and quickly diagnose faults.

Good compatibility: It has excellent compatibility with other modules of the S7-300 series PLC and can be conveniently used in conjunction with CPU modules, power modules, and other signal modules.

Application scenarios

Manufacturing industry: It can be used in production lines, assembly lines and other scenarios to expand the output channels of the S7-300 CPU and achieve precise control of production equipment.

Power industry: It is used for the control of switchgear and the display of indicator lights in the power system. Through the cooperation with S7-300 PLC, it realizes the automatic monitoring and management of the power system.

In the chemical industry: During the chemical production process, it can control the opening and closing of various valves, the start and stop of pumps, etc., precisely controlling the chemical production process.

Water treatment industry: It can be used to control solenoid valves, electric valves, etc. in water treatment equipment, achieving automatic control of the water quality treatment process.
