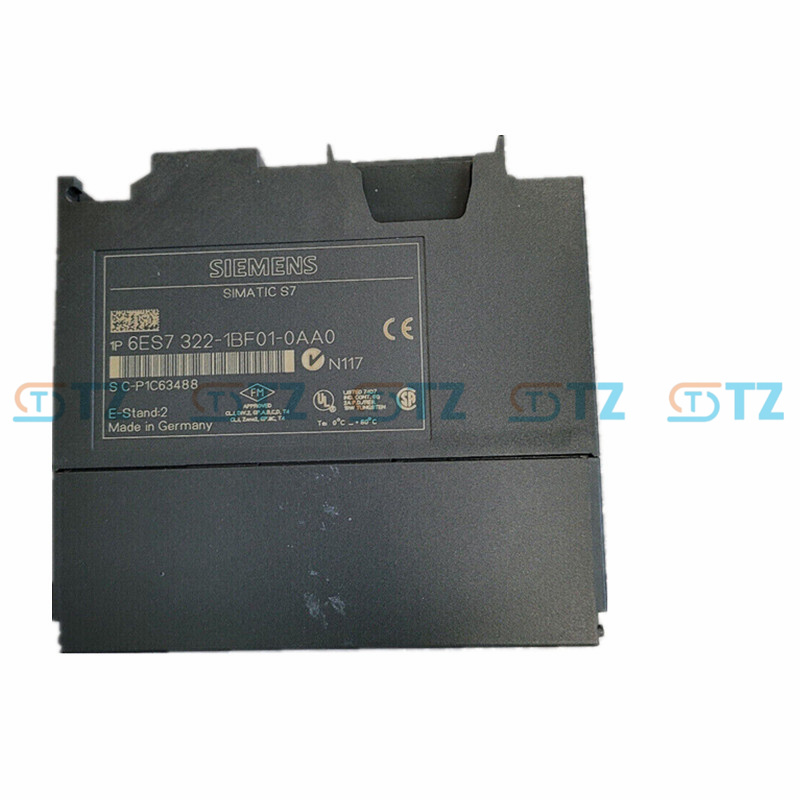

6ES7322-1BF01-0AA0 Siemens Simatic S7-300 Digital I/O Module

Product parameters

Power supply voltage: Rated value is DC 24V, allowable range is DC 20.4-28.8V.

Number of digital output terminals: 16.

Output current: The rated value for signal "1" is 0.5A. At 0-40℃, the maximum allowable range is 0.6A, and the minimum load current is 5mA. The maximum residual current for the signal "0" is 0.5mA.

Load resistance range: lower limit is 48Ω, upper limit is 4kΩ.

Short-circuit protection: Equipped with electronic short-circuit protection function.

Function

High-speed output: It has the capability of high-speed digital output. The switching frequency of some channels can reach 2.5kHz, which can quickly respond to control signals and achieve timely control of external devices.

Electrical isolation: Potential isolation can effectively prevent electrical interference and enhance the stability and reliability of the system.

Rich integrated functions: It integrates 3 counters (up to 30kHz), with a directional comparator, and can be directly connected to a 24V incremental encoder. It also features 3 frequency measurement channels (up to 30 KHZ) and 3 periodic measurement channels (counting frequency up to 1kHz). In addition, the 3-point output can be used for pulse width modulation to directly control valves, heating equipment, etc.

Diagnosis and Indication: It is equipped with status and fault indication functions. The LED can indicate hardware, programming, time, I/O errors, and working status, etc., facilitating users to troubleshoot and monitor the system.

Application scenarios

Manufacturing industry: It can be used in scenarios such as production line control and mechanical arm signal output. For instance, in the automotive manufacturing industry, it is often employed in the control system of welding robots to ensure efficient and precise production rhythms.

Energy management: It is applicable to the switch control of power distribution systems, such as in the new energy fields like wind power and solar energy, and can be used to monitor and control the operating status of power generation equipment.

Infrastructure: It can be applied in scenarios such as building automation and traffic signal control. In sewage treatment plants, it can be used to control the start and stop of pumps and valves, achieving automated process management.
