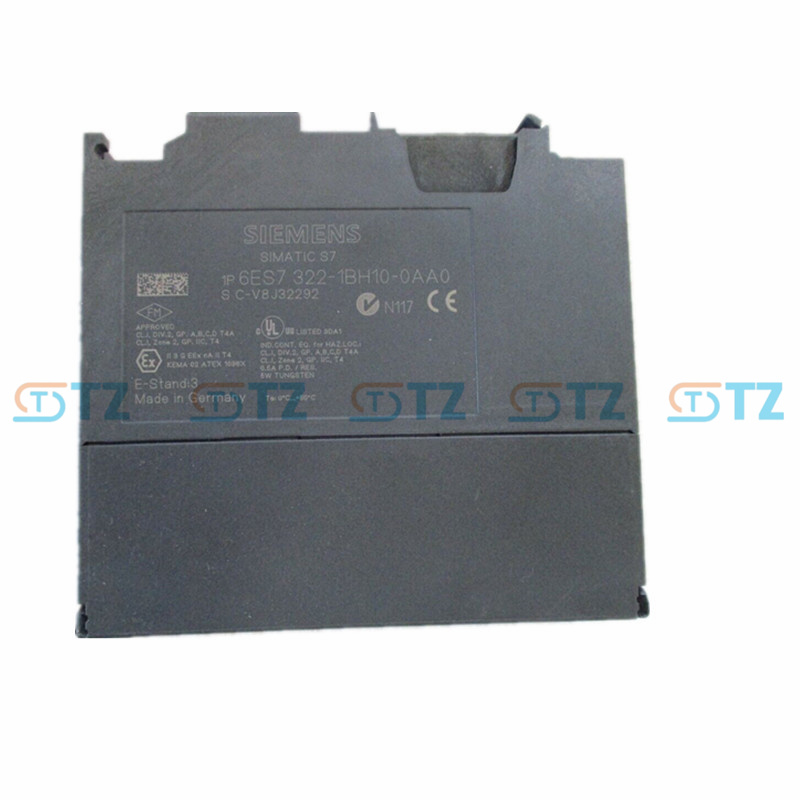

6ES7322-1BH10-0AA0 Siemens Simatic S7-300 Digital I/O Module

Product parameters

Power supply voltage: Rated value is DC 24V, allowable range is DC 20.4-28.8V.

Number of digital output terminals: 16.

Output current: The rated value for signal "1" is 0.5A. At 0-40℃, the maximum allowable range is 0.6A, and the minimum load current is 5mA. The maximum residual current for the signal "0" is 0.5mA.

Load resistance range: lower limit is 48Ω, upper limit is 4kΩ.

Switching frequency: The maximum value is 1000Hz under resistive load, 0.5Hz under inductive load, and 10Hz under lighting load.

Potential isolation: Digital output potential isolation, with 8 packet points between channels, and isolation between channels and backplane buses through optocouplers.

Function

High-speed output: It features a high-speed digital output function, capable of quickly responding to control signals and enabling timely control of external devices.

Electrical isolation: There is electrical isolation between channels and between channels and the backplane bus, which can effectively prevent electrical interference and enhance the stability and reliability of the system.

Load driving capability: Each output terminal can provide a rated current of 0.5A, capable of driving various loads such as solenoid valves, DC contactors and signal lights.

Application scenarios

In the field of chemical engineering: It can be used for various valve control and motor start-stop control in the chemical production process, ensuring precise control and stable operation of chemical production.

In the petroleum field: It is used in the processes of oil extraction and refining to control the operation of equipment such as pumps and compressors, as well as the output of various monitoring signals.

In the field of electronics/batteries: It is applicable to the automation control of electronic equipment production lines, such as equipment control in the assembly and inspection of products, as well as charging and discharging control during the battery production process.

In the automotive and auto parts field: It can be used for robot control on automotive production lines, conveyor line control, etc., to enhance the degree of automation and production efficiency in automotive manufacturing.

In the electrical field: As a digital output module in electrical control systems, it realizes the switch control of various electrical equipment, such as the switch control in distribution boxes and the control of lighting systems, etc.
