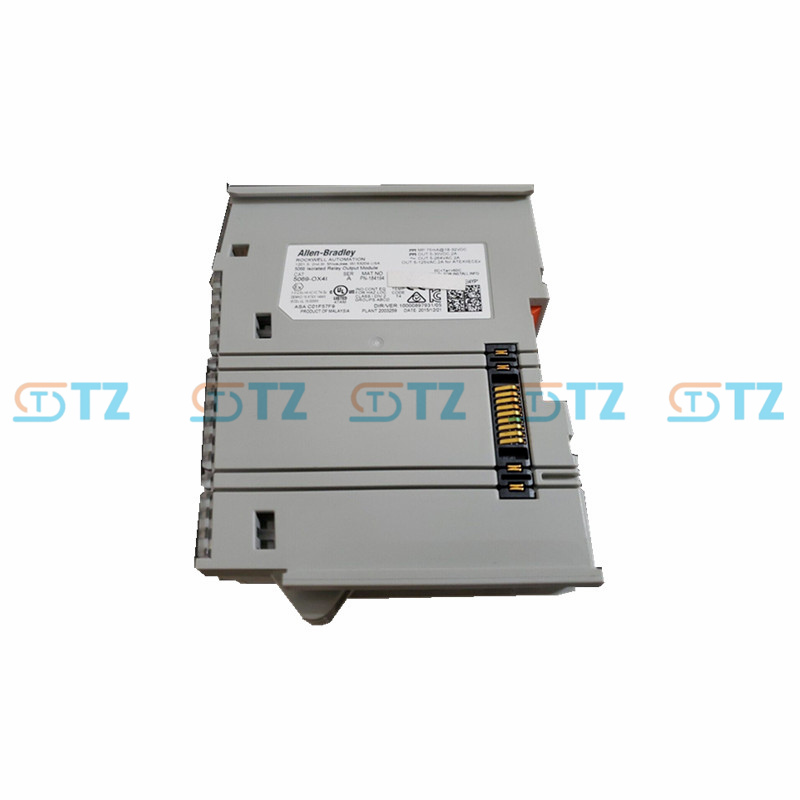

5069-OX4I Allen Bradley Rockwell Compact I/O 4 Channel Relay Output Module

Home

Allen Bradley

5069-OX4I Allen Bradley Rockwell Compact I/O 4 Channel Relay Output Module

5069-OX4I Allen Bradley Rockwell Compact I/O 4 Channel Relay Output Module

5069-OX4I is a Compact 5000 Isolated Relay Output Module.

HS CODE : 8538909200

  • Product No :

    5069-OX4I 5069OX4I
  • Manufacture :

    Allen Bradley
  • Size (cm) :

    18 * 14 * 5
  • Weight (kg) :

    0.25
  • Origin :

    USA
  • Warranty :

    12 Month
  • Lead Time :

    Ready Stock
  • Description :

    I/O Module

Product Parameters Module Type: Compact 5000 Isolated Relay Output Module (Form C, SPDT, N.O./N.C.) Output Channels: 4 channels (individually isolated, Form C, N.O./N.C.) Voltage Range: 5–125 V DC or 5–264 V AC (50/60 Hz) Output Current: 2 A per channel (resistive, max), 8 A per module (max) Relay Ratings: 2 A resistive @ 5–30 V DC 2 A resistive @ 5–264 V AC, 50/60 Hz 2 A general use @ 5–250 V AC, 50/60 Hz 2 A @ 5–125 V AC (ATEX/IECEx) Pilot Duty Rating: C300 (AC), R150 (DC) Switching Frequency: 1 operation every 3 s (0.3 Hz at rated load) Contact Life: 300,000 cycles (resistive), 100,000 cycles (inductive) Initial Contact Resistance: 30 mΩ max Mean Bounce Time: 500 µs Switching Times: OFF to ON: ≤15 ms (max) ON to OFF: ≤15 ms (max) Power: Module Power (MOD Power): 18–32 V DC (SELV/PELV), 75 mA max current Sensor/Actuator (SA) Power: 9.95 A max pass-through (no field power provided) Power Dissipation: 2.2 W (4 channels @ 2 A) Thermal Dissipation: 7.5 BTU/hr Indicators: 4 channel status LEDs (yellow for active outputs) 1 module status LED (green/red for operational status) Terminal Block: Compatible RTBs: 5069-RTB18-SPRING, 5069-RTB18-SCREW (not included) Wiring: 0.5–1.5 mm² (22–16 AWG) solid or stranded shielded copper wire, insulation rating 105°C (221°F), max diameter 2.9 mm (spring RTB) or 3.5 mm (screw RTB) Insulation Stripping Length: 12 mm (0.47 in.) for spring RTB, 10 mm (0.39 in.) for screw RTB One wire per terminal (spring RTB), one or two wires per terminal (screw RTB) Installation: DIN Rail: Zinc-plated chromate-passivated steel (EN50022, 35 x 7.5 mm) Latching Mechanism: Integrated for secure mounting End Cap: Required (included with module or adapter) Environmental Conditions: Operating Temperature: 0°C to 60°C (32°F to 140°F) Storage Temperature: -40°C to 85°C (-40°F to 185°F) Relative Humidity: 5% to 95% (non-condensing) Vibration: 5 g @ 10–500 Hz Shock: 15 g operating (3 pulses, 11 ms), 30 g non-operating (3 pulses, 11 ms) Altitude: Up to 2000 m without derating Pollution Degree: 2 (per EN/IEC60664-1) Temperature Code: T4 Enclosure: Open-style (requires protective cabinet, Zone 2 environment) Insulation: Basic Insulation: 300 V Between Channels: 240 V AC (continuous), 1500 V AC (1 min dielectric strength) Certifications:UL, cULus, CE, RCM, ATEX, IECEx, KC, China CCC, American Bureau of Shipping Maximum Modules: Controller-dependent (e.g., 24 for 5069-L330ERM, 16 for 5069-L320ERS2), up to 31 per adapter Programming Software: Studio 5000 Logix Designer (version 31 or higher) UPC/GTIN: 00885630530130 UNSPSC: 32151705

Functions

Isolated Form C Relay Output Control:

Drives AC or DC devices with 4 individually isolated Form C (SPDT) relay outputs, up to 2 A per channel (8 A total).

Simultaneous use of N.O. and N.C. contacts enables complex control.

Supports mixed voltages (5–125 V DC, 5–264 V AC) due to individual channel isolation.

Configurable Output States:

Programmable fault states per channel (Hold Last State, On, Off [default]) for Fault, Program, or Communication Failure modes.

Fault mode duration options: 1 s, 2 s, 5 s, 10 s, or Forever (default).

Switching times ≤15 ms for reliable relay operation.

Flexible I/O Integration:

Functions as local I/O for CompactLogix 5380, Compact GuardLogix 5380, or CompactLogix 5480 controllers .

Supports distributed I/O via 5069-AEN2TR or 5069-AENTR for CompactLogix 5380, ControlLogix 5580, or GuardLogix 5580, up to 31 modules per adapter.

Uses producer/consumer communication model for efficient data exchange over Ethernet/IP.

Network Compatibility:

Integrates with Ethernet/IP networks (1 Gbps, Linear/Star/DLR topologies) via controller or adapter.

No field power provided;   SA power bus passes through up to 9.95 A.

Diagnostics and Monitoring:

4 yellow channel LEDs indicate active outputs;   1 green/red module LED shows operational status.

Supports diagnostic reporting via Studio 5000 for troubleshooting.

Environmental Reliability:

DIN-rail mounting with latching mechanism ensures secure installation.

Open-style enclosure requires a protective cabinet for dust/corrosive environments.

Withstands vibration (5 g), shock (15 g operating), and operation at 2000 m altitude.

Limitations: Not a safety module (unlike 5069-OBV8S).   Fewer channels (4) than 5069-OW16 (16).   Slower switching (≤15 ms) than 5069-OB16F (≤10 µs).   Requires RTB (not included) and external fusing.

Application Scenarios

Complex Automation Control:

Controls devices requiring dual-state outputs (e.g., energize one load via N.O., de-energize another via N.C.) in production lines.

Compatible with 5069-L330ERM (24 I/O) or 5069-L320ERS2 (16 I/O).

Material Handling:

Drives relays for conveyor motors or sorting actuators with mixed AC/DC loads.

DLR topology ensures reliable network communication.

Process Control:

Actuates valves, pumps, or alarms in chemical, pharmaceutical, or food industries.

Wide voltage range (5–264 V AC, 5–125 V DC) and isolation support diverse field devices.

Building Automation:

Controls HVAC relays, lighting, or mixed AC/DC equipment with simultaneous N.O./N.C.   operation.

Isolated channels allow flexible integration of different voltage levels.

Distributed Control Systems:

Functions as distributed I/O via 5069-AEN2TR/AENTR for factory-wide control.

Integrates with 5069-series controllers for scalable automation.

OEM Equipment Integration:

Provides Form C relay output control for OEM machinery requiring complex switching.



Compact design (0.87 in.   width) fits space-constrained applications.
