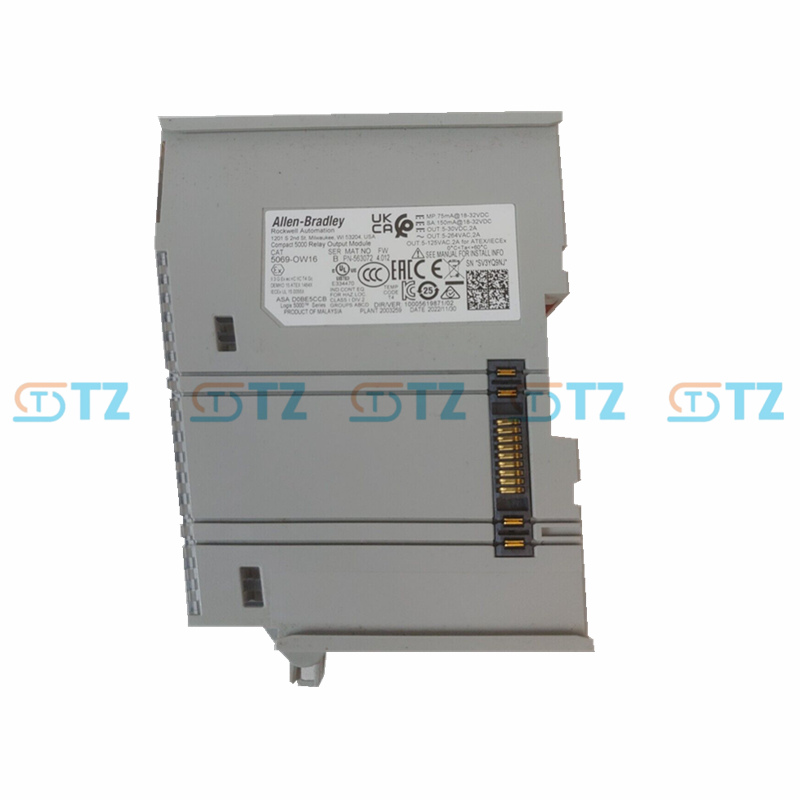

5069-OW16 Allen Bradley Rockwell Compact I/O 16 channels Relay Output Module

5069-OW16 Allen Bradley Rockwell Compact I/O 16 channels Relay Output Module

5069-OW16 is a Compact 5000 Digital 16-point Relay Output Module.

HS CODE : 8538909200

  • Product No :

    5069-OW16 5069OW16
  • Manufacture :

    Allen Bradley
  • Size (cm) :

    18 * 14 * 5
  • Weight (kg) :

    0.25
  • Origin :

    USA
  • Warranty :

    12 Month
  • Lead Time :

    Ready Stock
  • Description :

    I/O Module

Product Parameters

Module Type: Compact 5000 Relay Output Module (Form A, Normally Open, non-isolated)

Output Channels:

16 channels (2 groups of 8, non-isolated, Form A, N.O.)

Voltage Range: 5–125 V DC or 5–264 V AC (50/60 Hz)

Output Current: 2 A per channel (resistive, max), 8 A per group, 16 A per module

Relay Ratings:

2 A resistive @ 5–30 V DC

2 A resistive @ 5–264 V AC, 50/60 Hz

2 A general use @ 5–250 V AC, 50/60 Hz

2 A @ 5–125 V AC (ATEX/IECEx)

Pilot Duty Rating:

5–240 V AC, 50/60 Hz, C300 pilot duty per channel

5–125 V DC, R150 pilot duty per channel

Switching Frequency: 1 operation every 3 s (0.3 Hz at rated load)

Contact Life: 300,000 cycles (resistive), 100,000 cycles (inductive)

Initial Contact Resistance: 30 mΩ max

Mean Bounce Time: 500 µs

Switching Times:

OFF to ON: ≤10 ms

ON to OFF: ≤10 ms

Power:

Module Power (MOD Power): 18–32 V DC (SELV/PELV), 500 mA max current

Sensor/Actuator (SA) Power: 9.95 A max pass-through (no field power provided)

Power Dissipation: 3.0 W max

Thermal Dissipation: 10.24 BTU/hr

Indicators:

16 channel status LEDs (yellow for active outputs)

1 module status LED (green/red for operational status)

Terminal Block:

Compatible RTBs: 5069-RTB18-SPRING, 5069-RTB18-SCREW (not included)

Wiring: 0.5–1.5 mm² (22–16 AWG) solid or stranded copper wire, insulation rating 105°C (221°F), max diameter 2.9 mm (spring RTB) or 3.5 mm (screw RTB)

One wire per terminal (spring RTB), one or two wires per terminal (screw RTB)

Installation:

DIN Rail: Zinc-plated chromate-passivated steel (EN50022, 35 x 7.5 mm)

Latching Mechanism: Integrated for secure mounting

Environmental Conditions:

Operating Temperature: 0°C to 60°C (32°F to 140°F)

Storage Temperature: -40°C to +185°F (-185°F to)

Relative Humidity: 5% to 95% (non-condensing)

Vibration: 5 g @ 10–500 Hz

Shock: 15 g operating (3 pulses, 11 ms), 30 g non-operating (3 pulses, 11 ms)

Altitude: Up to 2000 m without derating

Radiated RF Immunity: 10 V/m @ 30–2000 MHz, 1 kHz sine-wave 80% AM;        1 V/m @ 2000–2700 MHz

Enclosure: Open-style

Certifications:UL, cULus, CE, RCM, ATEX, IECEx, KC, China CCC

Temperature Code: T4

Maximum Modules: Controller-dependent , up to 31 per adapter

Programming Software: Studio 5000 Logix Designer (version 31 or higher)

UPC/GTIN: 889508141633,

UNSPSC: 32151705

Functions

Relay Output Control:

Drives AC or DC devices with 16 non-isolated Form A (N.O.) relay outputs, up to 2 A per channel (8 A per group, 16 A total).

Supports mixed AC/DC voltages (5–125 V DC, 5–264 V AC) within groups, ideal for diverse field devices.

Configurable Operations:

Configurable fault states per channel (Hold Last State, On, Off [default]) for Fault, Program, or Communication Failure modes.

Switching times ≤10 ms for reliable relay operation.

Switching frequency: 0.3 Hz (1 operation every 3 s) at rated load.

Flexible I/O Integration:

Functions as local I/O for CompactLogix 5380, Compact GuardLogix 5380, or CompactLogix 5480 controllers.

Supports distributed I/O via 5069-AEN2TR or 5069-AENTR for CompactLogix 5380, ControlLogix 5580, or GuardLogix 5580, up to 31 modules per adapter,.

Uses producer/consumer communication model for efficient data exchange over Ethernet/IP.

Network Compatibility:

Integrates with Ethernet/IP networks (1 Gbps, Linear/Star/DLR topologies) via controller or adapter.

No field power provided;       SA power bus passes through up to 9.95 A.

Diagnostics and Monitoring:

16 yellow channel LEDs indicate active outputs;       1 green/red module LED shows operational status.

Supports diagnostic reporting via Studio 5000 for troubleshooting.

Environmental Reliability:

DIN-rail mounting with latching mechanism ensures secure installation.

Open-style enclosure requires a protective cabinet for dust/corrosive environments.

Withstands vibration (5 g), shock (15 g operating), and operation at 2000 m altitude.

Limitations: Not a safety module (unlike 5069-OBV8S).       Non-isolated outputs (unlike 5069-OW4I).       Slower switching (≤10 ms) than 5069-OB16F (≤10 µs).       Requires RTB (not included) and external fusing.

Application Scenarios

Manufacturing Automation:

Controls AC/DC devices in production lines.

Compatible with 5069-L330ERM (24 I/O) or 5069-L320ERS2 (16 I/O) for mid-sized systems.

Material Handling:

Drives relays for conveyor motors, sorting actuators, or signaling devices.

DLR topology ensures reliable network communication.

Process Control:

Actuates valves, pumps, or indicators in chemical, pharmaceutical, or food industries.

Wide voltage range (5–264 V AC, 5–125 V DC) supports diverse field devices.

Building Automation:

Controls HVAC relays, lighting, or mixed AC/DC equipment in facility systems.

Non-isolated groups simplify wiring for common voltage applications.

Distributed Control Systems:

Functions as distributed I/O via 5069-AEN2TR/AENTR for factory-wide control.

Integrates with 5069-series controllers for scalable automation.

OEM Equipment Integration:

Provides relay output control for OEM machinery with AC/DC flexibility.



Compact design (0.87 in. width) fits space-constrained applications.
