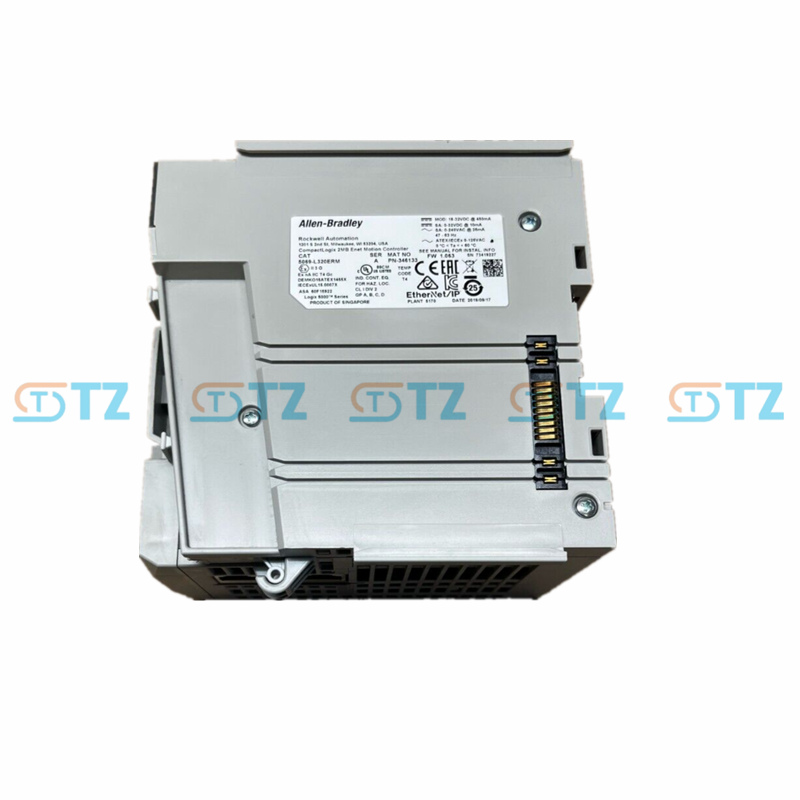

5069-L320ERM Allen Bradley Rockwell CompactLogix Controller

Product parameters

Controller type: CompactLogix 5380 Motion Controller (Supports motion control, no safety functions)

User memory: 2 MB

Maximum number of tasks: 32 (standard tasks)

Number of programs per task: up to 1000

Motion control

Maximum number of Motion axes: 8 (via the CIP Motion protocol of Ethernet /IP)

Supported instructions: Motion instruction set based on Studio 5000 (such as motion instructions in ladder diagrams)

Communication interface:

2 Ethernet /IP ports (supporting 10 Mbps, 100 Mbps, 1 Gbps, full-duplex)

One USB 2.0 port (for programming and configuration, 12 Mbps)

Network support

Maximum Ethernet /IP node: 40

Maximum socket interface: 32

Supported network topologies: Linear, Star, Device-level Loop (DLR)

Ethernet mode: Dual IP mode (independent IP address per port) or linear /DLR mode (shared IP address)

I/O support:

Maximum local I/O modules: 16 (Compatible with Allen-Bradley 5069 Compact I/O modules)

Distributed I/O: Access the Ethernet /IP network via 5069-AEN2TR or 5069-AENTR

I/O capacity: 128,000 data packets per second

Power supply:

Module Power supply (MOD Power) : 18-32 V DC (SELV/PELV), maximum current 475 mA, surge current 850 mA (lasting for 125 ms)

Maximum power supply current: 9.55A (DC)

Sensor/Actuator (SA) power supply:

Voltage range: 0-32 V DC or 0-240 V AC (47-63 Hz, ATEX/IECEx maximum 125 V AC)

Maximum current: 9.975A (AC), 9.95A (DC)

On-site power supply current: 25 mA (AC), 10 mA (DC)

Power consumption:

Maximum power consumption: 8.5 W

Maximum heat dissipation: 29 BTU/hr

Installation: DIN rail installation

Grounding requirements: A DIN rail with good electrical conductivity is required to ensure reliable grounding

Environmental conditions:

Operating temperature: 0°C to 60°C (32°F to 140°F)

Storage temperature: -40°C to 85°C (-40°F to 185°F)

Relative humidity: 5% to 95% (no condensation)

Vibration: 5 g (10-500 Hz)

Impact: 30 g during operation (3 pulses, 11 ms), 50 g during non-operation

Enclosure: Open type (needs to be installed in a cabinet with an appropriate protection level, dust-proof and resistant to corrosive gases)

Programming language: Supports IEC-61131-3 standard, including ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), and Sequential Function Diagram (SFC).

Certification:

Comply with EMC standards (EN 50081-2, EN 50082-2)

Certifications: China CCC, Australian RCM, ATEX, IECEx Scheme, Eurasian Economic Community

Type test: 50 V or 300 V isolation voltage (depending on the insulation type)

Function

Integrated motion control

Supports the CIP Motion protocol via Ethernet /IP to control up to 8 motion axes, and is suitable for servo drives, motors and robot applications.

Provide precise motion control functions through the motion instruction set of Studio 5000.

High-performance task processing

Supports up to 32 standard tasks, with each task capable of containing 1000 programs, making it suitable for complex control logic.

It provides 2 MB of user memory to meet the storage requirements of small and medium-sized automation and motion control applications.

Flexible network connection

The dual Ethernet /IP ports support 10/100 Mbps and 1 Gbps full-duplex communication, and support linear, star and DLR topologies, providing network redundancy and fault tolerance.

Supports up to 40 Ethernet /IP nodes and 32 socket interfaces, suitable for distributed control systems.

The USB 2.0 port is used for programming, configuration and debugging, and the communication rate reaches 12 Mbps.

Modular I/O expansion

Supports up to 16 local I/O modules (5069 Compact I/O), including digital input/output, analog input/output, relay output, etc.

Expand distributed I/O through 5069-AEN2TR or 5069-AENTR adapters, supporting up to 31 I/O modules/adapters.

The I/O capacity reaches 128,000 data packets per second, supporting high-throughput data processing.

Programming and Configuration

Programming is carried out using Studio 5000 Logix Designer software (version 31 or higher), supporting ladder diagram (LD), Function Block Diagram (FBD), Structured text (ST), and Sequential Function Diagram (SFC).

Support all event triggering to ensure flexible task scheduling and motion control.

Reliability and environmental adaptability:

The open shell design requires installation in a protective cabinet to adapt to industrial environments (dust-proof and resistant to corrosive gases).

Supports DIN rail installation. It is recommended to use zinc-chrome-plated steel rails with good electrical conductivity to ensure grounding reliability.

Withstand vibration (5 g) and shock (30 g during operation and 50 g during non-operation).

Diagnosis and Monitoring

Provide a status indicator to display the operating status of the controller in real time.

It supports fault reporting, module suppression and electronic key functions, facilitating system diagnosis and maintenance.

Application scenarios

Manufacturing Automation

It is used to control servo drives, robots and CNC equipment in the production line, and supports precise motion control (such as positioning and synchronization).

Suitable for small and medium-sized factories, it meets the requirements of 8 motion axes and 16 local I/O modules.

Material handling

It is applied to conveyor belts, automated sorting systems and warehousing equipment, supporting high-performance motion control and real-time data transmission.

Dual Ethernet ports and DLR topology ensure network reliability, making it suitable for dynamic material handling scenarios.

Packaging and Assembly

In packaging machinery and assembly lines, controlling multi-axis movements (such as packaging machines and labeling machines) provides high precision and rapid response.

2 MB of memory supports complex motion logic and standard control tasks.

Distributed control system

Distributed I/O control is achieved through Ethernet /IP networks, which is suitable for factory workshops or cross-regional equipment management.

When used in conjunction with the 5069-AEN2TR or 5069-AENTR adapter, it provides flexible remote I/O expansion.

OEM equipment integration

Provide compact and high-performance motion control solutions for original equipment manufacturers (Oems), integrated into custom machinery or systems.

Supports multiple programming languages to simplify device development and debugging.

General Industrial Control

It is suitable for HVAC systems, pumping stations or other automation tasks that require motion control, and supports direct communication with SCADA and HMI systems.

Forty Ethernet /IP nodes support a medium-scale control network.
