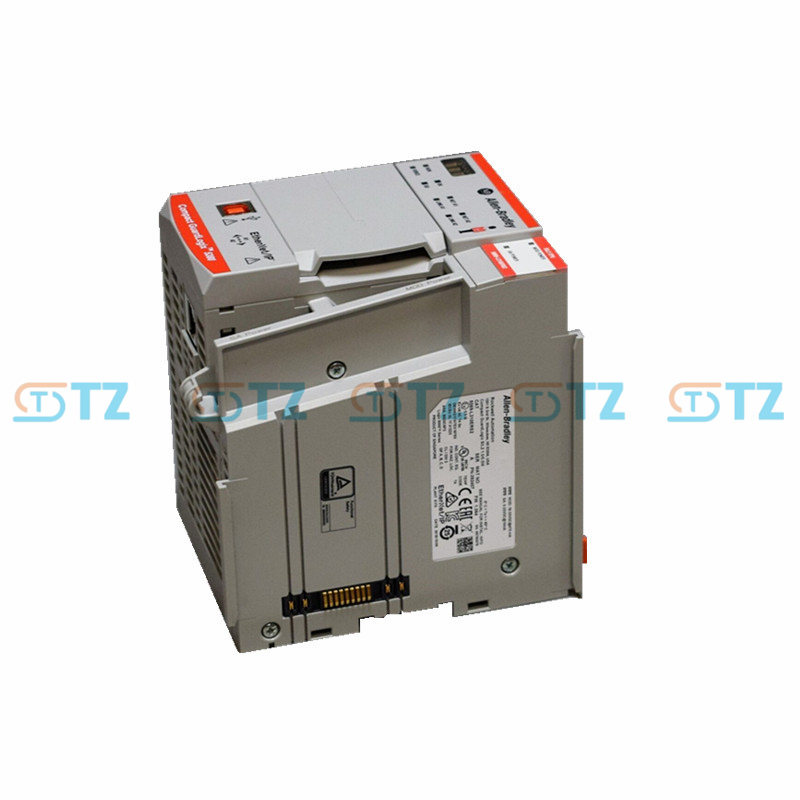

5069-L310ERS2 Allen Bradley Rockwell CompactLogix Controller

Product parameters

Controller type: Compact GuardLogix 5380 Safety controller, SIL 2/PLd grade

Memory:

Standard user memory: 1 MB

Safe memory: 0.5MB

Non-volatile storage: 2 GB (standard with 1784-SD2 SD card), supports expansion to 8 GB (1784-SDHC8), 32 GB (1784-SDHC32) or 4 GB (9509-CMSDCD4 CodeMeter CmCard)

Task support:

Maximum number of tasks: 32 (31 standard tasks + 1 security task)

Number of programs per task: up to 1000

Communication interface:

2 Ethernet /IP ports (supporting 10/100 Mbps and 1 Gbps, full-duplex)

One USB 2.0 port (programming and configuration, 12 Mbps)

Network support

Maximum Ethernet /IP node: 24

Supported network topologies: Linear, Star, Device-level Loop (DLR)

I/O support:

Maximum local I/O modules: 8 (Compatible with Allen-Bradley 5069 Compact I/O modules)

Distributed I/O: Access the Ethernet /IP network via 5069-AEN2TR or 5069-AENTR

Power supply:

Module Power supply (MOD Power) : 18-32 V DC, maximum current 475 mA, surge current 1200 mA (lasting for 125 ms)

Maximum power supply current: 5 A

Sensor/Actuator (SA) power supply: Up to 10 A (DC), 0-32 V DC or 0-240 V AC (47-63 Hz, ATEX/IECEx up to 125 V AC)

Power consumption:

Maximum power consumption: 9 W

Maximum heat dissipation: 30.9 BTU/hr

Installation:

DIN rail installation (Recommended zinc-chrome-plated steel EN50022 rail, 35 x 7.5mm)

Only horizontal installation is supported

Environmental conditions:

Operating temperature: 0°C to 60°C (32°F to 140°F)

Storage temperature: -40°C to 85°C (-40°F to 185°F)

Relative humidity: 5% to 95% (no condensation)

Vibration: 5 g (10-500 Hz)

Impact: 30 g during operation, 50 g during non-operation

Shell: Open type (needs to be installed in a cabinet with an appropriate protection level, dust-proof, anti-corrosive gas, etc.)

Certification:

Comply with EMC standards (EN 50081-2, EN 50082-2)

Type test: 1500 V (60 seconds)

Function

Integrated security control

Supports SIL 2/PLd level safety applications and is suitable for safety control scenarios without fault tolerance.

Provide 0.5MB of dedicated secure memory for running security tasks, isolated from standard tasks, to ensure the independence and reliability of security logic.

High-performance task processing

Supports up to 32 tasks (31 standard tasks + 1 security task), and each task can contain up to 1,000 programs.

It is suitable for complex control systems and can handle multi-threaded and high-concurrency tasks.

Flexible network connection

The dual Ethernet /IP ports support linear, star and device-level ring (DLR) topologies, providing network redundancy and fault tolerance capabilities.

Supports up to 24 Ethernet /IP nodes and is suitable for distributed control systems.

The USB port is used for programming and configuration, simplifying debugging and maintenance.

Modular I/O expansion

Supports up to 8 local I/O modules (5069 Compact I/O), and the distributed I/O can be expanded through 5069-AEN2TR or 5069-AENTR.

It offers high flexibility and is compatible with multiple I/O types (digital input/output, analog input/output, relay output, etc.).

Programming and Configuration

Program using the Studio 5000 Logix Designer software (version 31 or higher), integrate standard and security logic, and simplify the development process.

Supports multiple programming languages (LD, FBD, ST, SFC) to meet different development needs.

Reliability and environmental adaptability:

The open shell design requires installation in a protective cabinet to adapt to industrial environments (dust-proof and resistant to corrosive gases).

Supports DIN rail installation. It is recommended to use zinc-chrome-plated steel rails with good electrical conductivity to ensure grounding reliability.

Withstand vibration (5 g) and shock (30 g during operation and 50 g during non-operation).

Diagnosis and Monitoring

Provide a status indicator to display the operating status of the controller in real time.

It supports functions such as fault and status reporting, module suppression, and electronic keys, facilitating system diagnosis and maintenance.

Application scenarios

Manufacturing Automation

It is used to control production lines, assembly lines and packaging equipment, and supports standard control and safety control (such as emergency stop, safety door monitoring).

Suitable for small and medium-sized factories, it meets the requirements of low-axis movement and a limited number of I/O points.

Process control

It is applied in industries such as chemical engineering, pharmaceuticals, food and beverages, etc., to ensure the safe operation of process equipment (such as pumps, valves, sensor control).

SIL level 2 is applicable to non-fault-tolerant process safety scenarios.

Distributed control system

Distributed I/O control is achieved through Ethernet /IP network (supporting DLR topology), which is suitable for factory workshops or cross-regional equipment management.

When used in conjunction with the 5069-AEN2TR or 5069-AENTR adapter, it provides flexible remote I/O expansion.

Material handling

It is used for conveyor belts, robot sorting systems and warehouse automation, supporting high-performance task processing and safety functions.

The dual Ethernet ports support real-time data transmission, ensuring the system response speed.

Energy and Public Utilities

Control key equipment and ensure safety and compliance in water treatment, power distribution or renewable energy systems.

It can adapt to harsh environments (such as high temperatures and vibrations) and is suitable for outdoor or industrial site applications.

OEM equipment integration

Provide compact and high-performance control solutions for original equipment manufacturers (Oems), integrated into custom machinery or systems.

Supports multiple programming languages to simplify device development and debugging.
