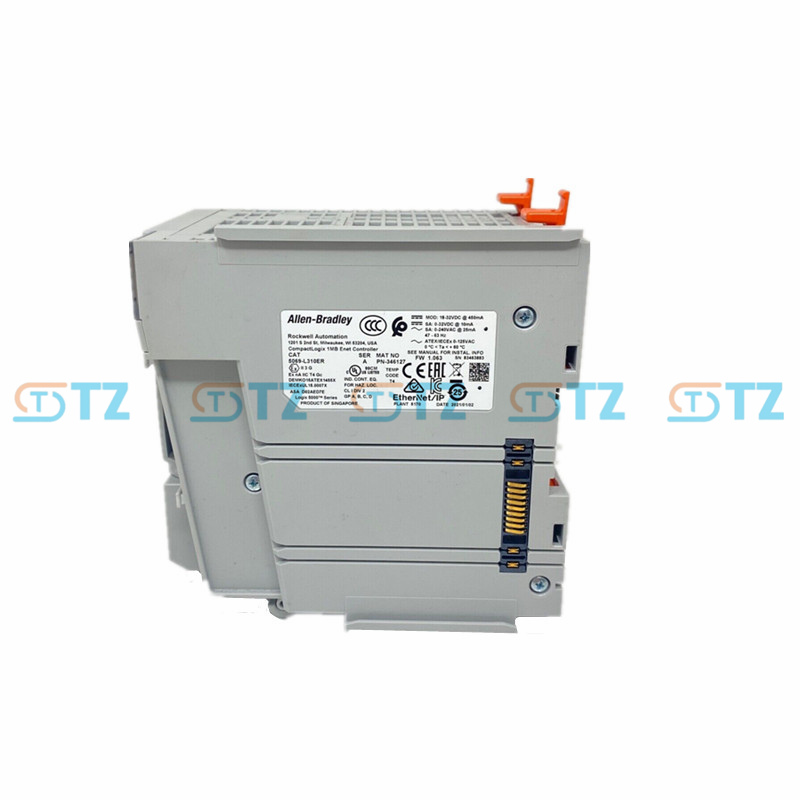

5069-L310ER Allen Bradley Rockwell CompactLogix Controller

Product parameters

Product type: Allen-Bradley 5069-L310ER, CompactLogix 5380 Controller

User memory: 1 MB (Standard memory)

Number of supported tasks: 32 tasks, with each task supporting 1000 programs

Support for I/O modules: Up to 16 local Compact 5000 I/O modules

EtherNet nodes: Up to 40 EtherNet/IP nodes

Socket interface: up to 32

Communication port:

2 Ethernet ports (supporting 10/100 Mbps and 1 Gbps, full-duplex)

One USB 2.0 port (with a transmission rate up to 12 Mbps)

Network topology: Supports linear, star and device-level ring networks (DLR)

Backplane current

At 5V DC: 450 mA

At 24V DC: 225 mA

Power consumption: Maximum 10 W

Heat dissipation: Maximum 34.1 BTU/ hour

Module power supply (MOD power supply) : 18-32V DC, maximum 800 mA

Sensor/Actuator power supply (SA power supply) : 18-32V DC, maximum 10 A

Installation method: DIN rail installation

Operating temperature: 0 to 60°C (32 to 140°F)

Storage temperature: -40 to 85°C (-40 to 185°F)

Relative humidity: 5% to 95% (non-condensing)

Vibration resistance: 2g (10 to 500 Hz)

Operating impact: 30g

Non-operational impact: 50g

Environmental requirements: Comply with ATEX/IECEx Zone 2 certification. It needs to be installed in a cabinet with at least IP54 grade, and the pollution level does not exceed 2 (EN/IEC 60664-1).

Certifications: CE, UL, CSA, RCM, ATEX, IECEx, ODVA, Korean KC, etc

Function

High-performance control: Provides 1 MB of standard memory, supports complex programs and medium-scale I/O processing, and is suitable for standard automation tasks.

Programming support: Studio 5000 Logix Designer is used, supporting ladder diagram (LD), Structured Text (ST), Function Block Diagram (FBD), and Sequential Function Diagram (SFC).

EtherNet communication: Dual Ethernet ports support EtherNet/IP, providing 1 Gbps high-speed communication, supporting CIP Security (Studio 5000 v34 or higher version), and compatible with linear, star and DLR topologies.

Local and distributed I/O

Support up to 16 local Compact 5000 I/O modules.

Support distributed I/O through 5069-AEN2TR or 5069-AENTR Ethernet adapters.

Non-volatile storage: Equipped with a 2GB standard SD card (1784-SD2), and supports optional 8GB (1784-SDHC8), 32GB (1784-SDHC32) or 4GB CodeMeter CmCard (9509-CMSDCD4).

Diagnosis and Monitoring: Provide controller status display, fault diagnosis, and enhanced security features (such as role-based access control and change detection).

Modular design: Supports hot plugging and is compatible with the Compact 5000 I/O module, simplifying system expansion and maintenance.

Application scenarios

Manufacturing industry

Automated production line: Control robots, conveyor belts and assembly equipment to optimize production efficiency.

Packaging machinery: Drive high-speed packaging equipment to ensure precise control.

Process industry

Food and Beverage: Achieve data collection and process control to enhance production consistency.

Pharmaceuticals: Control production equipment to meet compliance requirements.

Logistics and Warehousing

Automated warehouse: Controls the sorting system and conveyor belts, supporting distributed I/O.

AGV system: It realizes navigation and motion control, enhancing logistics efficiency.

Energy and Infrastructure

Power distribution: Monitor and control distribution equipment to ensure system stability.

Water treatment: Control pumping stations and valves, supporting real-time communication.

General Automation: Suitable for small and medium-sized automation systems, it requires high-performance Ethernet communication and medium-scale I/O processing.
