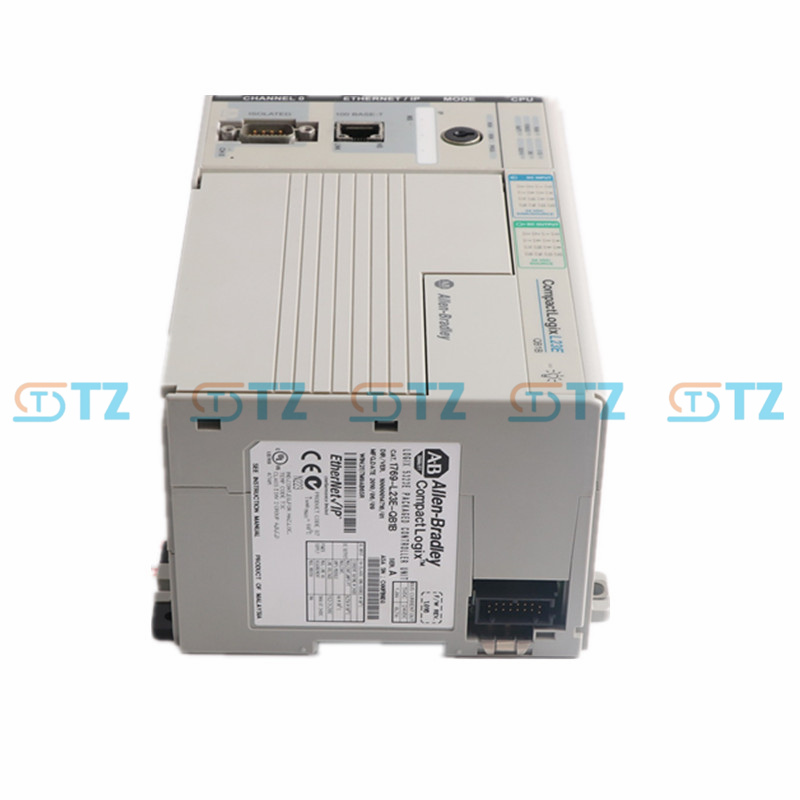

1769-L23E-QB1B Allen-Bradley CompactLogix 5370 L2 Packaged Controller

Product parameters

Module Type: CompactLogix 5370 L2 Packaged Programmable Automation Controller (PAC)

User memory: 512 KB (Embedded user memory)

Non-volatile memory

Standard configuration: 1 GB SD card (1784-SD1)

Supports up to 2 GB SD cards (1784-SD2)

Communication port:

1 EtherNet port (supporting Ethernet /IP, 10/100 Mbps)

One RS-232 serial port (supporting DF1, DH485, ASCII)

One USB port (for temporary connection, programming and debugging)

Embedded I/O

16 24VDC digital inputs (submerged/source-out type, 10-30VDC)

16 24VDC digital outputs (source-output type, 10-30VDC)

I/O expansion capability:

Support up to 3 1769 Compact I/O modules

It supports up to 8 Ethernet /IP nodes at most

Supports up to 120 TCP connections at most

Tasks and procedures:

Supports up to 32 controller tasks

Each task supports up to 100 periodic or continuous programs

Power supply:

Embedded power supply: 24 VDC (Only for Class 2 power supply, range 10-30 VDC)

Current consumption: 700 mA (at 24 VDC)

Backplane current: 1000 mA (5 VDC)

Power dissipation: 7 W

Input characteristics:

Input impedance: 3 kΩ

Maximum surge current: 250 mA

Off-state voltage: Maximum 5 VDC

Off-state current: Maximum 1.5 mA

Open-state current: minimum 2 mA (24 VDC), maximum 5 mA (24 VDC)

Output characteristics:

Output quantity: 16

Output delay time: 0.1 ms

Maximum leakage current: 1.0 mA (26.4 VDC)

Open-state voltage drop: Maximum 1 VDC (at 1 A)

Battery: Allen-Bradley 1769-BA replaceable battery

Installation method: DIN rail or panel installation

Operating temperature: 0 to 60°C (32 to 140°F)

Storage temperature: -40 to 85°C (-40 to 185°F)

Relative humidity: 5% to 95% (no condensation)

Wiring:

Wire specifications: 22-16 AWG (stranded), 22-14 AWG (solid), copper wire, 90°C insulation

Supports Allen-Bradley 1756-CP3 or 1747-CP3 serial cables

Certifications: UL, CSA, CE, C-TICK, ATEX, China CCC, Korean KC, Australian RCM, Registro Italiano Navale

Status indication: LED indicator lights (power, operation, fault, Ethernet status, etc.)

Component Number: 10612598350763

Function

High-performance control

The 512 KB user memory supports 32 tasks, with a maximum of 100 programs per task, making it suitable for real-time control of multiple tasks.

A 1 GB SD card (expandable to 2 GB) is used for non-volatile storage to save programs and data.

Embedded I/O

It is equipped with 16 built-in 24VDC digital inputs (sink/source output) and 16 24VDC digital outputs (source output), enabling it to handle basic control tasks without the need for additional I/O modules.

Support point-to-point diagnosis for convenient troubleshooting.

Communication capability:

The single EtherNet port supports Ethernet /IP (10/100 Mbps) and is compatible with linear or star topologies.

The RS-232 serial port supports DF1, DH485 and ASCII protocols, and is suitable for communication with traditional devices.

The USB port is used for programming and debugging.

Expansion capability:

Support up to 3 1769 Compact I/O modules, and expand digital, analog or special modules.

Supports 8 Ethernet /IP nodes and 120 TCP connections, suitable for small distributed systems.

Programming and Integration

Program using Studio 5000 Logix Designer and share consistent network protocols and information functions with other Logix controllers.

Supports online editing and forced operation, suitable for dynamic adjustment.

Battery support:

Equipped with a 1769-BA battery, it retains clock and memory data (after power failure).

Compact design

Integrated power supply, processor and I/O, suitable for space-constrained applications.

Application scenarios

Manufacturing industry: Control conveyor belts, robots or packaging equipment in automotive, food processing or electronic assembly production lines, and handle discrete I/O tasks.

Process control: In small chemical or pharmaceutical factories, valves, pumps or sensors are monitored to support PID regulation and data acquisition.

Material handling: In a warehousing or logistics system, manage automated sorting, conveyors or stackers.

Energy management: In renewable energy or power distribution systems, controlling load regulators or monitoring the status of equipment.

HVAC and Environmental Control: In building automation, control dampers, pumps or heaters, and integrate Ethernet and SCADA systems.

OEM equipment: Embedded control solutions, suitable for OEM equipment such as packaging machines and injection molding machines.

System upgrade: Replace the old PLC-5 system (such as the 1771 series module) to provide Ethernet communication and higher performance.
