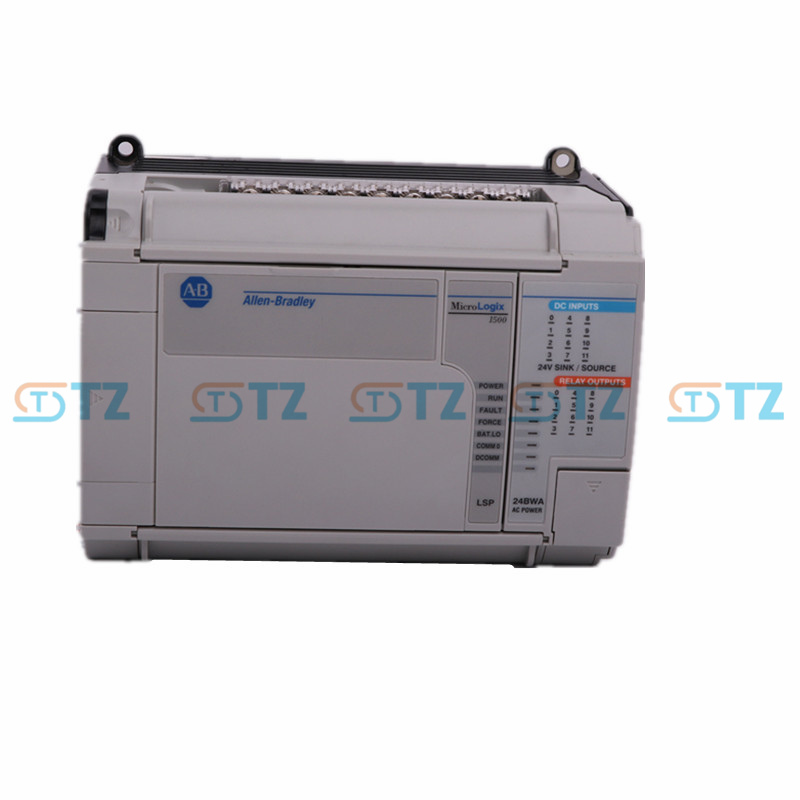

1764-24BWA Allen-Bradley MicroLogix 1500 24 Point Controller

Product parameters

Type: MicroLogix 1500 Base Unit.

I/O channel

Input: 8 standard 24 V DC sink/source inputs, 4 20 kHz high-speed 24 V DC inputs.

Output: 12 relay outputs (2 isolated), maximum 8 A per group, total load 1440 VA.

Power supply:

Input voltage: 85-265 V AC (47-63 Hz).

Power consumption: 88 VA.

Maximum load power: 22 W.

Sensor power supply: 24 V DC, 400 mA or 400 µF (maximum).

Communication port:

One 9-pin RS-232 port (Channel 0, supporting DF1 full/half duplex, DH-485, Modbus master/slave, ASCII).

Extension

Supports Compact I/O expansion (up to 8 local modules, up to 16 expansion libraries, with a total of 512 I/O points).

Environmental requirements:

Operating temperature: 0°C to 55°C.

Storage temperature: -40°C to 85°C.

Relative humidity: 5% to 95% (non-condensing).

Vibration: 5 g (10-500 Hz).

Impact: 30 g (in operation), 50 g (not in operation).

Isolation

Power supply to the backplane: 1836 V AC (1 second).

Input group to backplane: 1200 V AC (1 second).

Installation: DIN rail or panel installation, horizontal installation, requires 50mm ventilation space.

Certification: UL, C-UL, CE, C-Tick, Class I Div.2 (Group A/B/C/D, T4).

Function

Modular design

A basic unit that provides power supply, communication ports and embedded I/O, compatible with 1764-LSP (7.6 KB memory) or 1764-LRP (14 KB memory) processors.

Support the data access tool (1764-DAT) and the memory/real-time clock module.

High-performance I/O

High-speed input (20 kHz) supports counting or metering applications.

The relay output is suitable for various load controls (up to 1440 VA).

Flexible communication

The RS-232 port supports DF1, Modbus, DH-485 and ASCII protocols.

EtherNet/IP or DH-485 networks can be accessed via 1761-NET-ENI or 1761-NET-AIC.

Expansion capability: Supports the 1769 Compact I/O module, which can be expanded to 512 I/O points to meet the requirements of medium-sized automation.

Programming and Diagnosis

Program using RSLogix 500 or Studio 5000.

The I/O status LED indication is convenient for monitoring and troubleshooting.

Sensor support: Built-in 24 V DC sensor power supply (400 mA), simplifying wiring.

Application scenarios

Manufacturing industry: Control small production lines (such as packaging and assembly), manage sensors, actuators and conveyor belts.

Water treatment: Control pumps, valves and flow meters, supporting high-speed counting and remote monitoring.

Food and beverage: Used in filling and packaging equipment to optimize production efficiency.

Building automation: Manage HVAC and lighting systems, and integrate Ethernet communication.

Oil and Gas: Control process equipment in hazardous environments (Class I Div.2) and support reliable relay output.

Material handling: Control the conveyor belt and sorting system, and utilize high-speed input to process encoder signals.

Typical applications:

Small to medium-sized automation systems require high-density I/O and network expansion.

High-speed counting (such as flow measurement) or relay control scenarios.
