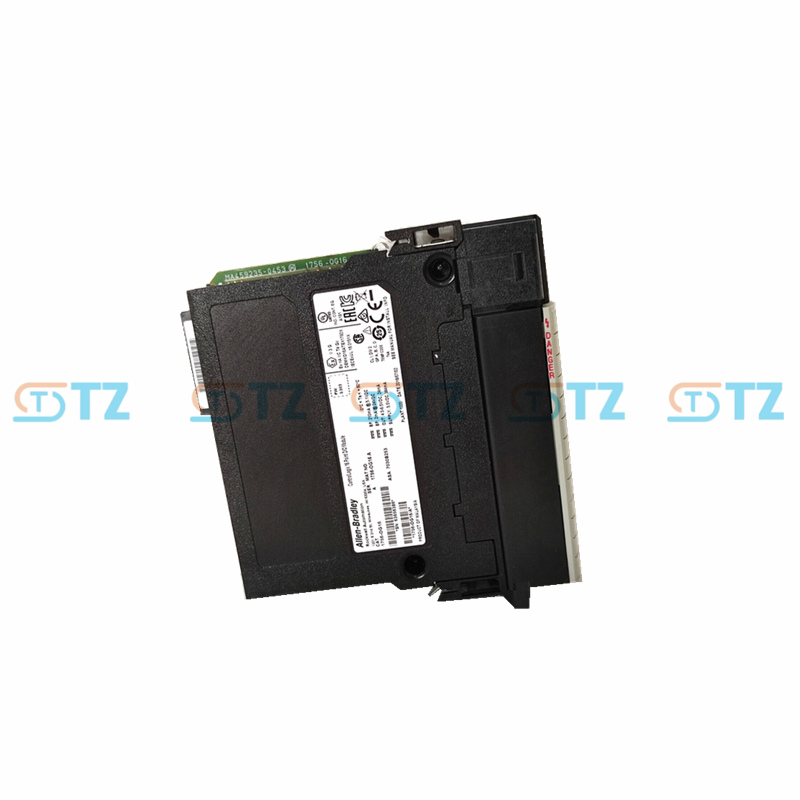

1756-OG16 Allen Bradley Rockwell Digital DC Output Module

Product parameters

Product Model: 1756-OG16

Type: Digital Output Module (Transistor-Transistor Logic, TTL)

Output points: 16 points (8 points per group, a total of 2 groups)

Output type: 5V DC, Low level effective (Low/True TTL output)

Working voltage range: 4.5-5.5V DC

Output signal: 0-5V DC

Maximum current load:

Each point: 24 mA

Total module: 384 mA

Maximum off-state leakage current: 0.1 mA per point

Voltage drop in the conduction state: 0.4V

Maximum scheduling time: 16.7 seconds

Power dissipation: 1.5W

Heat dissipation: 5.2 BTU/hr (at 60°C)

Operating temperature range: 0-60°C (32-140°F)

Working humidity: 5-95% (no condensation)

Impact rating: 30G

Vibration level: 2.0G (10-500 Hz)

Installation method: Install on the ControlLogix Chassis

Connector: 20-pin removable terminal block (RTB, such as 1756-TBNH or 1756-TBSH)

Certification: CE, UL, CSA, KC, MARINE, RCM, in compliance with CISPR 11 Class A emission standards

Temperature code: T5 (North American and European standards)

UPC: 612598299195

GTIN: 00612598299195

Function

Digital output control

It provides 16 5V DC TTL outputs, supports low-level valid signals, and is suitable for interaction with TTL compatible devices.

Each output point can be independently controlled and is suitable for high-precision and low-voltage digital signal output.

Status indication:

The module has the display functions of output status, communication status and module health status, which is convenient for monitoring and diagnosis.

High reliability

It supports operation in harsh industrial environments and has the ability to withstand 30G shock and 2G vibration.

It has a wide operating temperature range (0-60°C) and is suitable for various industrial scenarios.

Flexibility

It can be connected to the ControlLogix controller via ControlNet or EtherNet/IP network, and supports local or remote rack installation.

Supports Removal and Insertion Under Power (RIUP), facilitating maintenance and replacement.

Software configuration:

Comprehensive software configuration is carried out through RSLogix 5000 (now Studio 5000) to simplify setup and debugging.

Low power consumption design

The power dissipation is only 1.5W and the heat dissipation is 5.2BTU /hr. It is suitable for long-term operation and energy-saving.

Application scenarios

Industrial automation control

It is used in PLC (Programmable Logic Controller) systems to control small actuators, relays, indicator lights or other low-voltage devices.

It is suitable for automated production lines that require high-precision signal output, such as semiconductor manufacturing and electronic assembly.

Data Acquisition and Control

In the data acquisition system, it is used to send control signals to TTL compatible devices, such as sensor triggers or data recording devices.

It is suitable for real-time control systems that require rapid response, such as robot control or high-speed mechanical operation.

Test and measurement equipment:

In a laboratory or testing environment, it is used to control TTL signal-driven test instruments or equipment.

It is often used in electronic test platforms to ensure low latency and high reliability of signals.

Distributed control system: Through ControlNet or EtherNet/IP networks, the module can be integrated into the distributed control system, which is suitable for large factories or complex automation networks.

Special industrial environments: Due to its high durability and wide temperature range, it is suitable for use in harsh environments, such as petrochemical, power or heavy industrial plants.
