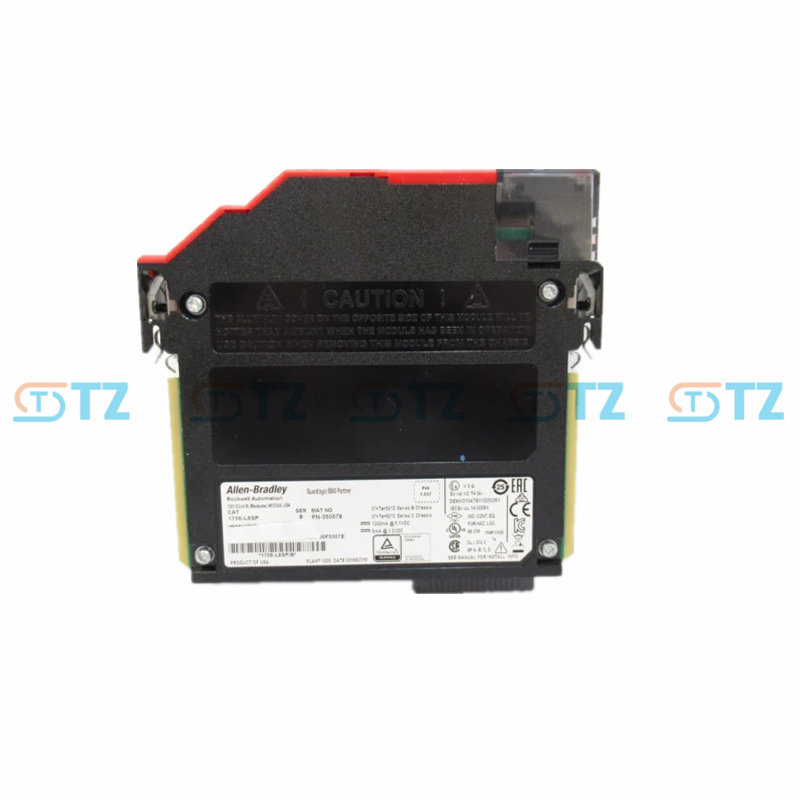

1756-L8SP Allen Bradley Rockwell ControlLogix GuardLogix Safety Partner Processor

Product parameters

Memory:

User memory: There is no independent user memory, and it relies on the memory of the main controller paired with it.

Non-volatile storage: Non-volatile storage using the main controller for storing programs and diagnostic data.

Communication interface:

Built-in port: 1 USB 2.0 full-speed port (12 Mbps), for programming, configuration, firmware update and online editing.

Supported communication protocols:

EtherNet/IP

ControlNet

DeviceNet

Data Highway Plus

Remote I/O

SynchLink

Third-party process and equipment networks

Controller connection count: Supports up to 500 controller connections, consistent with the main controller.

Power supply and energy consumption:

Current consumption

5.1V DC: 700 mA

1.2V DC: 5 mA

Power consumption: 3.5W

Heat dissipation: 11.9 BTU/ hour

Isolation voltage: 30V (continuous), basic insulation type, USB port to system, type test lasts for 60 seconds at 707V DC.

Energy storage module

Equipped with capacitive energy storage module:

1756-SPESMNSE (Detachable Capacitor Energy Storage Module)

1756-SPESMNRM (Non-detachable capacitor energy storage module, used to prevent unauthorized USB connections)

It does not require traditional batteries and supports the preservation of RAM content.

Environmental conditions:

Operating temperature: 0°C to 60°C

Storage temperature: -40°C to 85°C

Relative humidity: 5% to 95% (non-condensing)

Vibration: 2G (10-500 Hz)

Operating impact: 30G

Non-operational impact: 50G

Temperature codes: North American T4, ATEX and IECEx T4

Physical properties:

Enclosure type: Open type (IP20 protection grade)

Installation method: Rack-mounted, compatible with ControlLogix racks

Occupied slots: Dual slot width (occupying 2 rack slots), which needs to be installed in the slot next to the main controller

Display screen: 4-character alphanumeric display screen, used for runtime information and controller diagnosis

Certification:

Compliant standards: CCC, CE, CSA, C-Tick, KC, MARINE, RCM, ATEX, IECEx

Safety certification: Supports up to SIL 3 and PL e safety levels.

Programming and Configuration

Compatible software: Studio 5000 Logix Designer (formerly RSLogix 5000), used for programming, configuration and diagnosis.

Supported programming languages: Relay Ladder, Function Block Diagram, Sequential Function Chart, Structured Text.

Compatibility

Main controllers: 1756-L81S, 1756-L81SK, 1756-L82S, 1756-L82SK, 1756-L83S, 1756-L83SK, 1756-L84S, 1756-L84SK

Power supply: Compatible with the standard power supplies of 1756-PA50, 1756-PA72, 1756-PA75, 1756-PB50, 1756-PB72, 1756-PB75, 1756-PC75 and 1756-PH75. And 1756-PA75R, 1756-PB75R, 1756-PSCA2 redundant power supplies.

Reset function: Equipped with a reset button, it is only effective when the device is turned on or restarted. Attempting to reset at other times will not damage the controller or cause data loss, but it is ineffective.

Function

Security Partner Controller

1756-L8SP, as the safety partner controller in the GuardLogix 5580 system, pairs with the main safety controller to form a 1002 safety architecture, providing safety functions up to SIL 3 and PL e, and meeting global safety standards (such as IEC 61508, EN ISO 13849-1).

Maintain safety functions when the main controller fails to ensure system reliability.

High-reliability design

Ensure the integrity of data and programs in case of power failure or malfunction through independent isolation and capacitive energy storage modules (without battery required).

Supports live plug and unplug (RIUP), which is convenient for maintenance and replacement.

Communication flexibility

Programming and configuration can be carried out through the USB port, supporting multiple industrial communication protocols and adapting to different network environments.

Supports integrated motion control on EtherNet/IP and CIP secure network connection, allowing security data to be shared among GuardLogix controllers.

Support Producer/Consumer technology to optimize data transmission efficiency.

Status monitoring and diagnosis

It is equipped with a built-in 4-character alphanumeric display screen, showing the operating status, fault codes and diagnostic information, which is convenient for on-site fault investigation.

The SD card stores diagnostic data for analysis by Rockwell Automation.

Modularization and scalability

Installed in the ControlLogix rack, it can be seamlessly integrated with other modules such as I/O modules and communication modules.

Support multi-controller configuration and adapt to distributed control systems (DCS) or high-availability systems.

Programming support:

Programming is carried out using Studio 5000 Logix Designer, which supports multiple programming languages and simplifies the development of security logic and standard logic.

Support event-triggered tasks and state change (COS) functions to optimize response speed.

Integration of safety and standard control: Used in conjunction with the main controller, it provides a single software platform (Studio 5000) for safety and standard control, simplifying system design and maintenance.

Application scenarios

Safety-critical applications: Widely used in scenarios requiring high safety levels (SIL 3, PL e), such as safety interlock systems in the chemical, oil and gas, pharmaceutical, and food and beverage industries.

Manufacturing industry: It is used for safety control on production lines, such as robot systems, conveyor belts or automated assembly lines, to ensure the safety of personnel and equipment.

Process control: Applied to complex processes that require redundant control, such as oil refineries, power plants or water treatment facilities, to ensure safe operation when the main controller fails.

Integration of motion and safety: Integrated motion and safety control supporting Kinetix 5700 and PowerFlex 755 drivers, suitable for single-controller or multi-controller motion safety configurations.

Distributed control system: Integrated into the distributed I/O system via EtherNet/IP or ControlNet network, it is suitable for large factories or remote monitoring applications, such as the PlantPAx DCS platform.

Traditional system maintenance: 1756-L8SP is used for the maintenance or upgrade of the existing GuardLogix 5580 system, and is particularly suitable for scenarios that require high security and redundancy.
