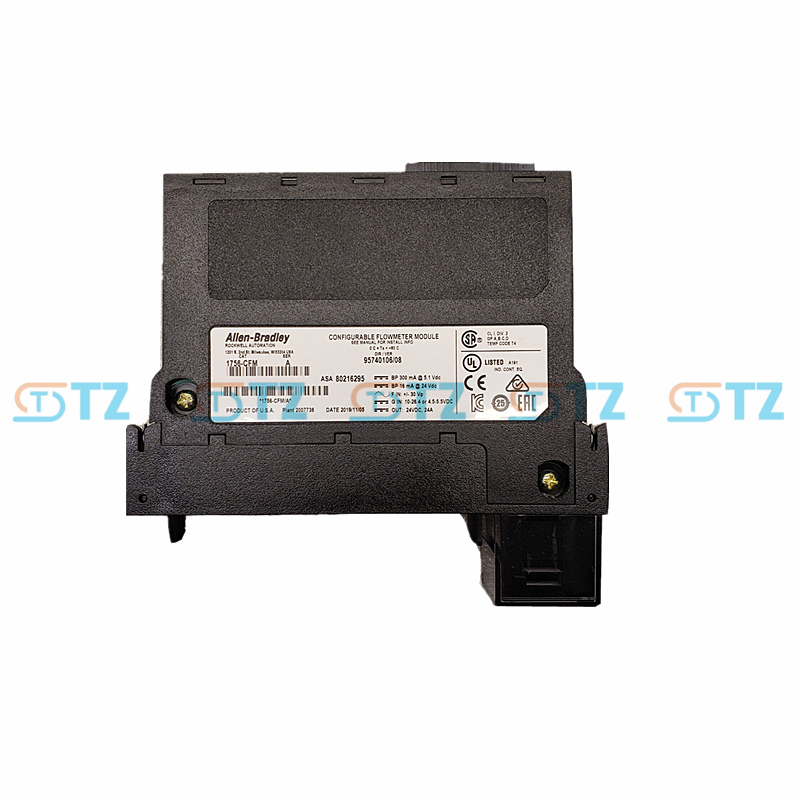

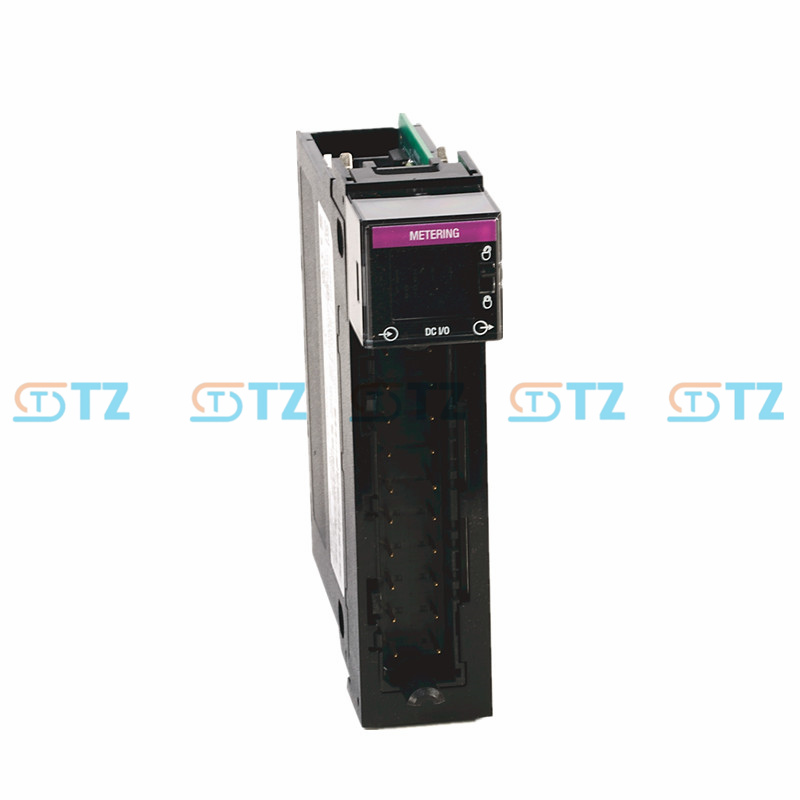

1756-CFM Allen Bradley Rockwell Configurable Flowmeter Module

Product parameters

Input/Output:

Input:

Two Flowmeter Inputs (Flowmeter Inputs), supporting various types of flowmeters (such as magnetic induction, TTL, preamplifier).

Two Gate Inputs are used for calibration/storage counts in Totalizer Mode.

Input voltage range: 5-24V DC.

Input frequency: Up to 100 kHz (16-bit resolution).

Output:

Two Current-Sourcing Outputs (IEC 1A, 24V DC).

Output voltage range:

4.5-5.5V DC (3-20 mA load/point).

10-31.2V DC (40 mA to 1 A load per point).

Surge current: 2 A (lasting for 50 ms, repeating every 2 seconds).

Off-state leakage current: <300 µA @ 31.2V.

Output switching time: 1 ms.

Overload current: 4 A (with short-circuit protection).

Backplane current

5.1V DC: 300 mA.

24V DC: 6 mA.

Power and heat dissipation

Maximum power dissipation: 6 W.

Heat dissipation: 20.4 BTU/ hour.

Environmental conditions:

Operating temperature: 0°C to 60°C (32°F to 140°F).

Storage temperature: -40°C to 85°C (-40°F to 185°F).

Relative humidity: 5% to 95% (non-condensing).

Vibration: 2G (10-500 Hz).

Operating impact: 30G.

Non-operational impact: 50G.

Physical properties:

Installation method: Rack-mounted, compatible with ControlLogix racks.

Occupied slot: Single slot.

Terminal block: Use a detachable terminal block (RTB), such as 1756-TBNH (20-pin screw terminal) or 1756-TBSH (20-pin spring clip terminal), or connect to the IFM with a 1492 interface module cable.

Enclosure type: Open type (IP20 protection grade).

Display: LED status indicator lights (fault, input, output and communication status, module health status).

Certification:

Compliant standards: UL Listed, ATEX, IECEx, China CCC, Australian RCM, CE, Korean KC, American Bureau of Shipping.

Safety certifications (such as SIL/PL levels) are not supported.

Programming and Configuration

Compatible software: Studio 5000 Logix Designer (original RSLogix 5000, recommended version 29 or higher).

Supports multiple traffic modes: Totalizer, Batch, Rate, and Ratio.

Support AGA 7 compensation (for gas flow calculation).

Support firmware update.

Compatibility

Controller: It needs to be used in conjunction with the Logix 5550 series or other ControlLogix controllers (such as 1756-L55, 1756-L71), and the module needs to be "owned" for normal operation.

Power supply: Compatible with the standard power supplies of 1756-PA50, 1756-PA72, 1756-PA75, 1756-PB50, 1756-PB72, 1756-PB75, 1756-PC75 and 1756-PH75. Or 1756-PA75R, 1756-PB75R, 1756-PSCA2 redundant power supplies.

Function

High-performance flow measurement

It provides 2 flowmeter inputs (up to 100 kHz, 16-bit resolution) and 2 gate inputs, supporting high-precision flow measurement.

Supports multiple types of flowmeters (magnetic induction, TTL, preamplifier, pulse, frequency, analog, encoder).

It offers multiple flow modes: total volume, batch processing, rate and ratio, to meet different industrial demands.

Flexible output control

Two current source outputs (4.5-5.5V DC or 10-31.2V DC), with a fast response time (1 ms), suitable for rapid adjustment and control.

Supports short-circuit protection and overload protection to ensure system reliability.

Communication and Integration

The interface between the ControlLogix rack and the Logix controller supports direct connection or listening-only mode.

Compatible with networks such as EtherNet/IP and ControlNet (additional communication modules are required, such as 1756-ENBT and 1756-CNB).

Support Producer/Consumer technology to optimize data transmission efficiency.

Status monitoring and diagnosis

It is equipped with LED indicator lights to display faults, input, output and communication status, facilitating on-site fault detection.

Detailed diagnostic information (such as flowmeter status and error codes) is provided and can be viewed through Studio 5000.

Support Module Fault Reporting to help users quickly identify problems.

Modular design

Supports RIUP, Removal and Insertion Under Power, which is convenient for maintenance and replacement.

Simplify on-site wiring by using RTB (1756-TBNH or 1756-TBSH) or 1492 interface module cables.

AGA 7 Compensation:

Built-in AGA 7 compensation algorithm optimizes gas flow measurement and is suitable for the oil and gas industry.

High reliability

The design meets the requirements of industrial environments and is resistant to high temperatures, high humidity and vibration.

Supports multiple types and modes of flowmeters to adapt to diverse applications.

Application scenarios

Chemical and process industries: Used for flow measurement of liquids, gases and slurries, such as raw material flow monitoring in chemical reaction processes.

Water and wastewater treatment: Monitor water flow and flow parameters during the treatment process to optimize water treatment techniques.

Oil and gas industry: Used for flow measurement in pipelines, storage tanks and production processes, supports AGA 7 compensation, and is suitable for gas flow applications.

Food and beverage production: Monitor the flow of raw materials and finished products to ensure production consistency and quality.

Power generation industry: Measure fuel flow and other key process parameters to support efficient energy management.

Traditional system maintenance: 1756-CFM is suitable for the maintenance or expansion of existing ControlLogix systems, and is particularly suitable for scenarios that require high-precision flow measurement
