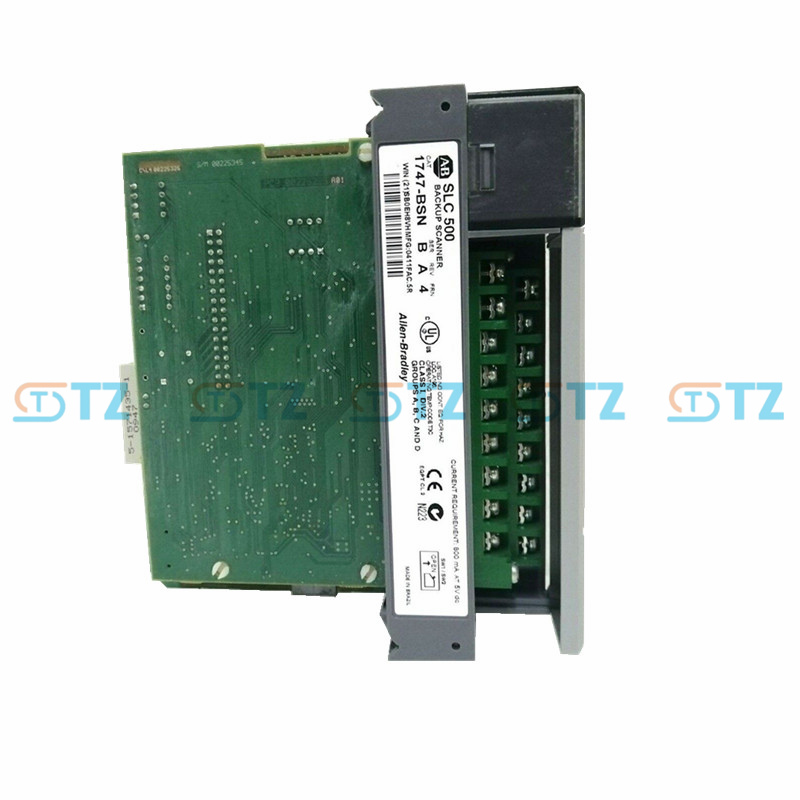

1747-BSN Allen-Bradley SLC 500 Backup Scanner Module

Product parameters

Module type: Backup Scanner Module, used for redundant communication of SLC 500 series PLCS.

Communication interface:

Supports Remote I/O (RIO) network, with one RJ-45 port for connecting RIO links.

Supports DH+ (Data Highway Plus) network, with one port for high-speed communication between PLCS.

One RS-232 serial port (9-pin D-type connector), for local configuration or communication.

Communication rate:

RIO: 57.6 kbps, 115.2 kbps or 230.4 kbps.

DH+ : 57.6 kbps.

Backplane current consumption

At 5V: 800 mA.

At 24V: 0mA (no 24V backplane requirement).

Supported I/O modules: It can control the 1746 series I/O modules (such as 1746-NO4V) in the SLC 500 rack, supporting up to 3 racks and 30 I/O slots.

Backup function:

Supports master/slave redundancy configuration. Two 1747-BSN modules can be paired to achieve high availability.

Switching time: less than 100 ms (from the failure of the main module to the takeover by the slave module).

Environmental adaptability

Operating temperature: 0°C to 60°C (32°F to 140°F).

Storage temperature: -40°C to 85°C (-40°F to 185°F).

Relative humidity: 5% to 95% (non-condensing).

Status indication: Equipped with multiple LED indicator lights to display module status, communication status (RIO/DH+), backup status and error diagnosis.

Installation position: The module is installed in slot 0 of the SLC 500 rack (fixed position).

Certification: Complies with industrial standards such as UL, CSA, and CE.

Function

Redundant communication: The 1747-BSN provides master/slave backup functionality to ensure seamless takeover by the slave scanner in the event of a primary scanner failure, enhancing system reliability.

High-speed network communication

Through the RIO network, manage remote I/O modules (such as 1746-NO4V) to achieve distributed I/O control.

Through the DH+ network, high-speed data exchange between SLC 500 processors is supported.

Modular expansion: Supports control of up to 30 I/O modules, suitable for medium and large-scale automation systems.

Local configuration: The RS-232 port allows for module configuration and diagnosis through a terminal or programming software (such as RSLogix 500).

Status monitoring and diagnosis: LED indicator lights provide real-time feedback on the module's operating status, network communication status, and redundant switching status, facilitating fault detection.

Compatible with SLC 500: Compatible with SLC 5/02 and above processors, and supports programming and I/O mapping through RSLogix 500 software.

Application scenarios

High availability industrial control: It is used in industrial scenarios that require high reliability, such as power, petrochemicals or water treatment, ensuring continuous system operation through master/slave redundancy configuration.

Distributed I/O system: In manufacturing production lines (such as automotive manufacturing and food processing), multiple I/O modules (such as 1746-NO4V) of SLC 500 racks are managed through the RIO network to achieve the control of remote sensors and actuators.

Complex process control: It is suitable for scenarios where multiple controllers need to be coordinated, and data sharing among PLCS is achieved through the DH+ network, such as multi-point temperature or pressure regulation in chemical processes.

Factory automation Network: In large factories, the 1747-BSN can serve as a communication hub, connecting multiple SLC 500 racks and integrating with HMI or SCADA systems to achieve factory-level monitoring.
