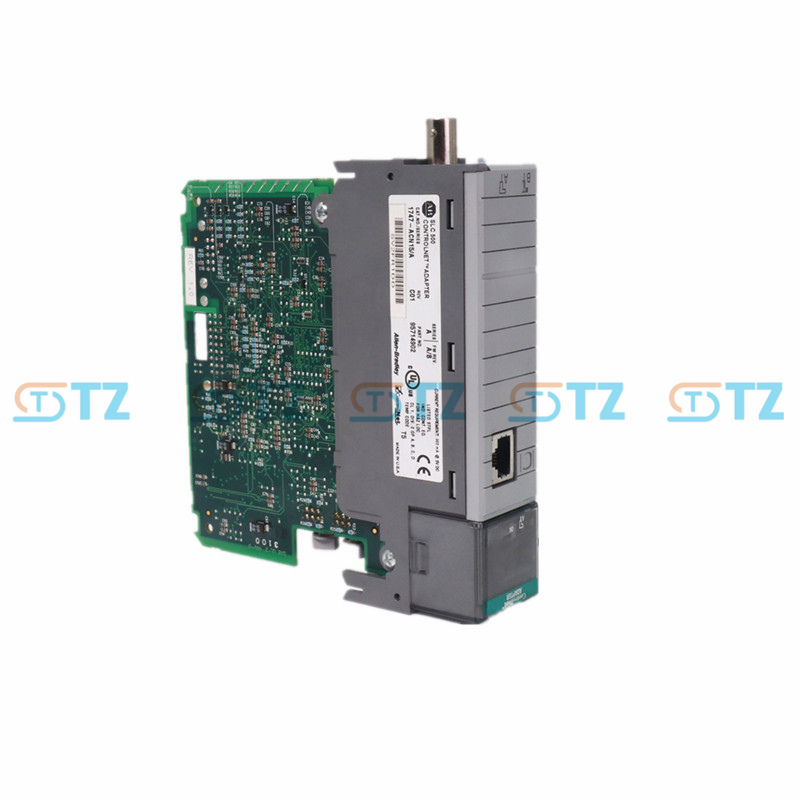

1747-ACN15 Allen-Bradley SLC 500 Controlnet Adapter

Product parameters

Module type: ControlNet I/O adapter module, belonging to the Allen-Bradley SLC 500 series.

Communication interface:

One BNC connector for ControlNet coaxial cable communication.

One NAP (Network Access Port) RJ-45 8-pin shielded connector for temporary network access.

Communication rate: Supports the standard rate of ControlNet network (5 Mbps).

Backplane current consumption

At 5V: 900 mA.

At 24V: 0mA (no 24V backplane requirement).

Supported I/O modules: It can control the 1746 series I/O modules in the SLC 500 rack, supporting up to 3 racks and 30 I/O slots at most.

Isolation: There is electrical isolation between the ControlNet port and the backplane.

Environmental adaptability

Operating temperature: 0°C to 60°C

Storage temperature: -40°C to 85°C.

Suitable for industrial environments, resistant to vibration and electrical noise interference.

Physical properties:

The module is installed in slot 0 (fixed position) of the SLC 500 rack.

Connect to the ControlNet network using a detachable terminal block (RTB).

Status indication: Equipped with LED indicator lights to display the module status, network communication status and error diagnosis.

Certification: Complies with industrial standards such as UL, CSA, CE, etc.

Function

ControlNet Network adaptation: 1747-ACN15 connects the 1746 I/O module in the SLC 500 rack to the ControlNet network, allowing the PLC to perform remote I/O control through the high-speed network.

High-speed communication: Supports 5 Mbps ControlNet communication, suitable for industrial automation applications that require rapid data exchange.

Distributed I/O control: Through the ControlNet network, the I/O modules of multiple SLC 500 racks can be integrated into a unified control system, supporting a distributed control architecture.

Modular expansion: Supports control of up to 30 I/O modules, suitable for medium and large-scale automation systems.

Diagnosis and Monitoring: LED indicator lights provide network connection status, module operation status and fault information, facilitating rapid diagnosis.

Compatibility: Seamlessly integrated with SLC 500 series processors (such as 1747-L551, L552, etc.), and configured and programmed through RSLogix 500 software.

Application scenarios

Distributed control system: It is used in scenarios requiring distributed I/O control in factory automation, such as automotive manufacturing, food processing or packaging production lines. 1747-ACN15 connects multiple SLC 500 racks to the main controller through the ControlNet network.

High-speed data exchange: Suitable for applications that require real-time data transmission, such as data acquisition from sensors and actuators on production lines, or coordinated control of multiple devices.

Large-scale industrial automation: In industries such as steel, power, and petrochemicals, it is used to manage complex I/O points and integrate digital and analog modules (such as 1746-NO4V) across multiple racks.

Process control: It is used in conjunction with analog modules (such as 1746-NO4V) to precisely control parameters such as flow rate, pressure, and temperature, and is suitable for the chemical or water treatment industries.

Networked chemical plant: Communicate with the upper computer, HMI or other PLCS through the ControlNet network to achieve factory-level data sharing and monitoring.
