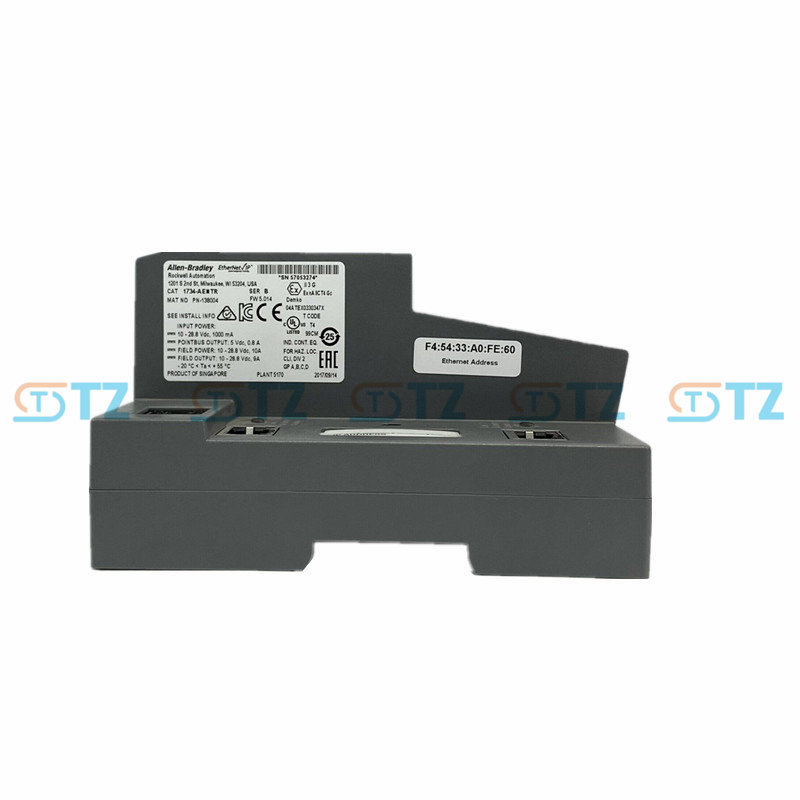

1734-AENTR Allen Bradley Rockwell CompactLogix Network Adaptor Module

Product parameters

Model :1734-AENTR

Type: Ethernet /IP Adapter Module

Input voltage :24V DC (Working voltage)

Input voltage range :10V DC to 28.8V DC

POINTBus current :1000 mA

Maximum power consumption :10.4 W (DC 28.8V)

Operating temperature :-20°C to 60°C

Supported network protocols :EtherNet/IP, TCP/IP, DeviceNet, ControlNet

Communication rate :10/100 Mbit/s, half-duplex or full-duplex

Maximum expandable I/O capacity :63 modules, 31 direct connections

Installation method: Install vertically on the DIN rail and support plug and unplug while powered on

Supported topological structures: star, tree, ring

Power supply requirements :24V DC, inrush current 6A (10ms)

Isolation voltage :50V (continuous)

Certification: China CCC Certification, Registered with the Italian Navy

Product function

Ethernet /IP communication

1734-AENTR is an Ethernet /IP adapter module used to connect POINT I/O racks to Ethernet /IP networks to achieve remote control and data exchange.

It supports a transmission rate of 10/100 Mbit/s and is suitable for real-time data communication in industrial automation systems.

Multi-controller support: This module supports the connection of multiple controllers without the need for network scheduling and routing tables, simplifying the configuration and maintenance process.

Automatic negotiation function: It supports the automatic negotiation function, eliminating the need for manual setting of transmission rates and enhancing the flexibility and ease of use of the system.

Redundancy and high availability: Supports redundant network connections and achieves high availability through dual Ethernet ports, making it suitable for industrial environments with high requirements for system reliability.

Diagnosis and Monitoring: The module is equipped with LED status indicator lights to display the module status, network activity, point-to-point status, system power supply and on-site power supply status, facilitating real-time monitoring and fault diagnosis for users.

Compatibility: This module is compatible with ControlLogix, FlexLogix and SoftLogix systems, and supports configuration and programming with RSLogix 5000 software.

Scalability: Supports up to 63 POINT I/O modules and provides 504 input/output points, suitable for the expansion requirements of complex industrial automation systems.

Application scenarios

Industrial automation systems: Applicable to industrial automation systems, they are widely used in manufacturing, process control, discrete manufacturing, automotive industry, food and beverage, and other fields.

Remote monitoring and control: Through Ethernet /IP networks, remote monitoring and control can be achieved, enhancing the flexibility and maintainability of the system.

Data acquisition and communication: This module supports real-time data acquisition and communication, and is suitable for the integration of data acquisition systems and industrial automation systems.

High availability network: Due to its redundant network connections and high availability, it is suitable for critical industrial control systems such as CNC machine tools, robots, conveyor belt systems, etc., ensuring the continuous operation of the system.

Flexible configuration: Supports modular design, allowing for independent selection of I/O, terminal types, and network interfaces, suitable for industrial automation systems of different scales.
