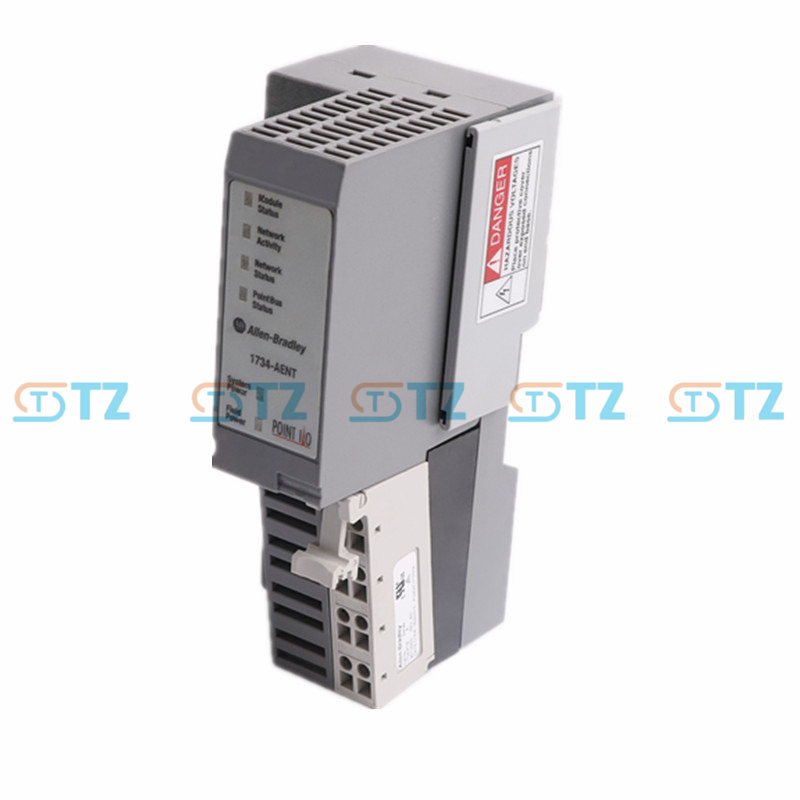

1734-AENT Allen-Bradley EtherNet/IP Twisted Pair Media I/O Adapter

Product parameters

Product type: POINT I/O EtherNet/IP Communication adapter module

Communication interface:

One Ethernet port (RJ45, Category 5)

Supported Protocol: EtherNet/IP (Based on CIP, Common Industrial Protocol)

Transmission rate: 10/100 Mbps, half-duplex or full-duplex (automatic negotiation supported)

Module capacity: Supports up to 63 POINT I/O modules (single node)

Power supply:

Input voltage: 10-28.8V DC (nominal 24V DC)

Surge current: Maximum 6 A, lasting for 10 ms

Power consumption: Maximum 10.4 W @ 24V DC

Backplane current: 425 mA @ 24V DC, 1000 mA @ 5V DC

Network topology

Supports Linear, Star and Tree topologies

Redundant ring topology is not supported

IP address allocation: Allocated via BootP or DHCP tools

Connection support: Supports up to 20 direct connections and 5 rack-optimized connections

Status indication:

Module status LED

Network status LED

POINTBus status LED

Ethernet connection status LED

Environmental Specification:

Operating temperature: -20°C to 55°C (-4°F to 131°F)

Storage temperature: -40°C to 85°C (-40°F to 185°F)

Relative humidity: 5-95%, non-condensing

Maximum working altitude: 2,000 meters

Protection grade: IP20 (Open type, needs to be installed in the control cabinet)

Installation method: DIN rail installation (35mm)

Terminal Block: Removable Terminal Block (RTB, compatible with 1734-TB or 1734-TBS)

Certifications: UL, cUL, CE, RCM, KC, ATEX

Installation method:

Install vertically on the DIN rail (35mm), ensure that the rail lock is in a horizontal position, and press to fix.

It is suitable for installation in the control cabinet and complies with the NEMA/UL Type 1 protection requirements.

Function

Ethernet communication

It provides an EtherNet/IP network interface, supporting real-time I/O data exchange and message passing.

Use standard Category 5 Ethernet cables (shielded or unshielded, with RJ45 connectors).

Modular I/O integration

Supports up to 63 POINT I/O modules, allowing for flexible expansion of I/O points.

Support hybrid standard I/O and secure I/O to reduce system costs and complexity.

Diagnostic function:

Provide diagnostic information of network status, module status and POINTBus status to facilitate fault detection.

LED indicator lights are used for real-time monitoring of the module and network operation status.

Multi-controller connection

Supports simultaneous connection of multiple controllers and is suitable for distributed control systems.

Automatic Negotiation: Built-in automatic negotiation function, automatically ADAPTS to 10/100 Mbps transmission rate and duplex mode, simplifying configuration.

Software support:

Compatible with Studio 5000 Logix Designer and FactoryTalk software for configuration and monitoring.

Support AOP (Add On Profiles, version 40.14.77 or higher).

Application scenarios

Factory Automation

It is used in production lines (such as automotive manufacturing, food and beverage, packaging) to connect sensors, actuators and other I/O devices to the EtherNet/IP network.

Realize the real-time data exchange between the PLC (such as ControlLogix, CompactLogix) and the POINT I/O module.

Distributed Control System (DCS)

In large factories or cross-regional systems, it serves as a communication interface for distributed I/O, connecting remote I/O modules to the main controller.

It is applicable to the chemical, petroleum and natural gas or water treatment industries.

Material handling: Sensors and actuators that control conveyor belts, elevators or storage systems, supporting high-precision and real-time control.

IT/OT Integration

Bridge IT (Information Technology) and OT (Operational Technology) networks to support factory management, data collection and control.

Provide HMI (Human-Machine Interface) information processing and configuration functions to optimize production monitoring.

Modular system design

By taking advantage of the modular feature of POINT I/O, the system design and installation costs can be reduced, making it suitable for scenarios that require flexible expansion.

Support local and remote I/O configuration to simplify engineering design.
