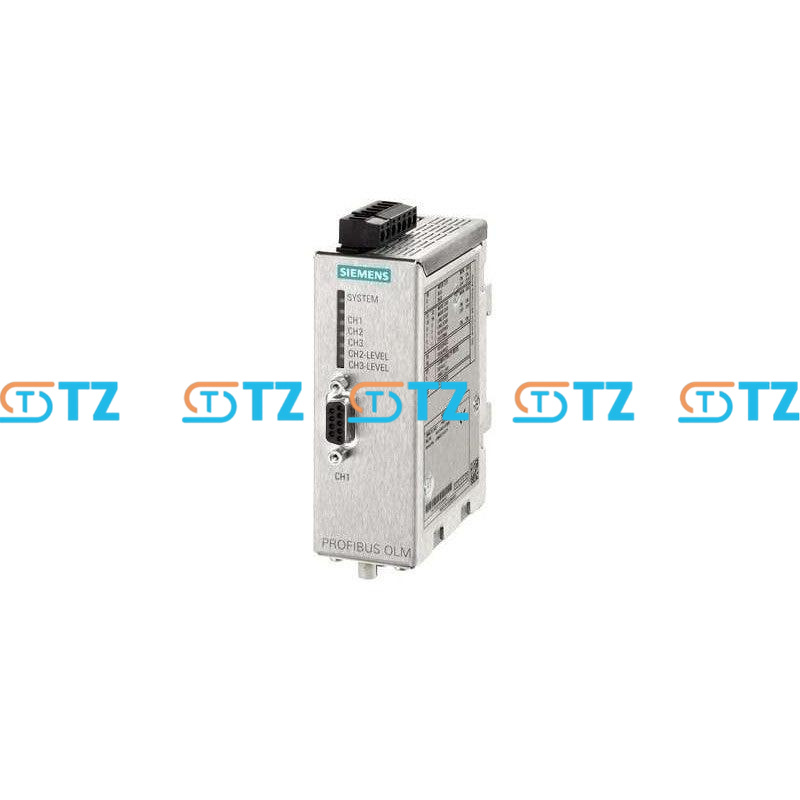

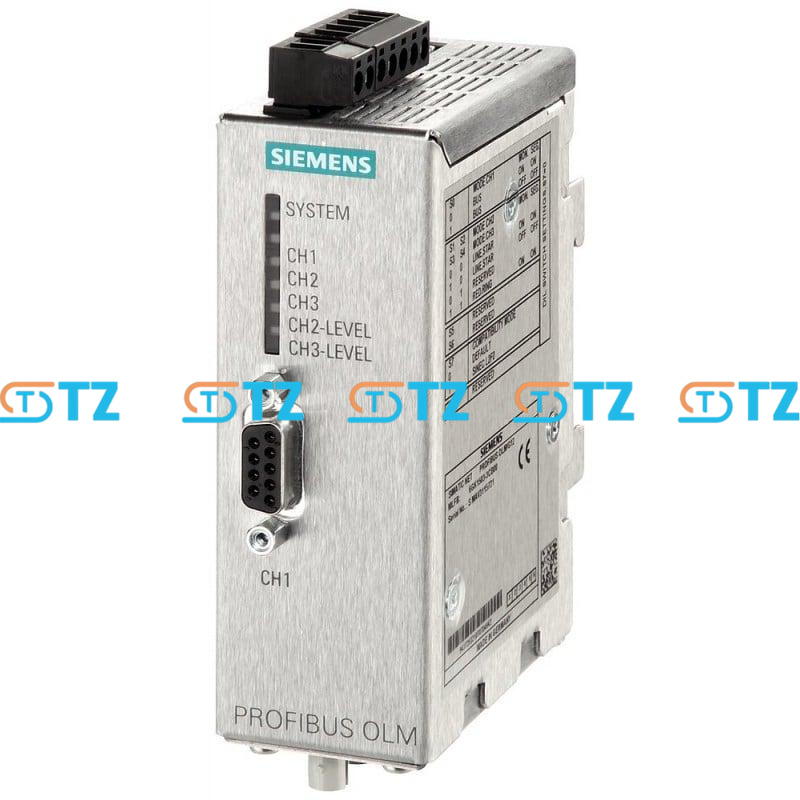

Siemens SIMATIC NET PROFIBUS OLM/G11-1300 V4.0 Optical Link Module, 1 RS-485 + 1 Glass Fiber Interface

The 6GK1503-2CC00 is an industrial PROFIBUS Optical Link Module (OLM) from Siemens SIMATIC NET. It converts PROFIBUS electrical signals to optical signals, allowing PROFIBUS networks to be extended over long distances while improving resistance to electromagnetic interference.

The module supports PROFIBUS transmission rates from 9.6 kbit/s to 12 Mbit/s and PROFIBUS PA at 45.45 kbit/s. Its optical interface operates at 1300 nm and supports glass-fiber links up to approximately 15 km, depending on the fiber and link conditions.

It also provides a signaling contact and measurement/test output for network diagnostics. The module can be installed on a DIN rail or wall-mounted and operates from a 24 V DC power supply.

Key Features

• Siemens SIMATIC NET
• PROFIBUS OLM/G11-1300 V4.0
• 1 × RS-485 electrical interface
• 1 × glass-fiber optical interface
• 2 × BFOC optical sockets
• 1300 nm optical wavelength
• PROFIBUS transmission rate up to 12 Mbit/s
• Glass-fiber transmission distance up to 15 km
• 24 V DC power supply
• Signaling contact
• Measurement/test output
• IP40 protection
• DIN-rail or wall mounting
• Compact industrial design

Main Applications

• PROFIBUS network extension
• Industrial Ethernet/fieldbus infrastructure
• Factory automation
• Process automation
• Industrial networking
• Long-distance PROFIBUS communication
• Electromagnetically harsh environments
• Distributed automation systems
• Siemens SIMATIC PLC networks
• PROFIBUS DP/PA network integration

Product Status: Active / Current
