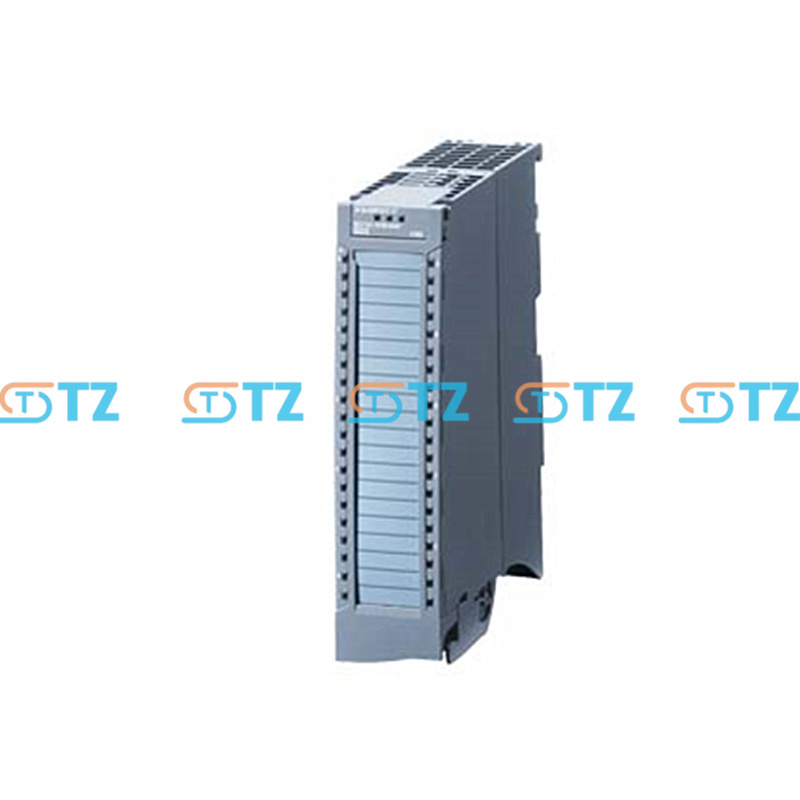

Siemens 6ES7531-7NF10-0AB0 SIMATIC S7-1500 SM 531 AI 8xU/I HS 16-bit High-Speed Analog Input Module

The Siemens 6ES7531-7NF10-0AB0 is designed for high-speed acquisition of analog voltage and current signals in S7-1500 automation systems. Each of its eight channels can be configured for voltage or current measurement, while the 16-bit resolution provides detailed measurement values for industrial control and monitoring applications.

Compared with standard S7-1500 analog input modules, the AI 8xU/I HS emphasizes fast measurement acquisition. Siemens specifies oversampling of up to eight channels with a minimum cycle of 0.0625 ms, together with configurable diagnostics and hardware interrupts. The module is therefore suitable for machinery and processes requiring rapid analog signal acquisition.

The module is supplied with the infeed element, shield bracket and shield terminal. The 40-pole front connector is not included and must be ordered separately as either a screw-terminal or push-in version.

 Main Features

• 8 analog input channels
• Voltage and current measurement
• 16-bit resolution including sign
• Accuracy: 0.3%
• High-speed analog acquisition
• Oversampling down to 0.0625 ms
• Channel-by-channel measurement configuration
• Configurable diagnostics
• Hardware interrupt capability
• Common-mode voltage up to 10 V
• Short-circuit protection
• S7-1500 backplane communication
• Infeed element included
• Shield bracket and shield terminal included
• 40-pole front connector ordered separately

Application Scope

• High-speed industrial automation
• Machine control
• Fast process monitoring
• Analog sensor acquisition
• Dynamic measurement systems
• Motion-related measurement applications
• Factory automation
• Process automation
• S7-1500 high-speed analog signal acquisition

Active Product — Not Discontinued
