Introduction

The oil and gas industry operates some of the most demanding industrial automation environments on earth. Offshore platforms face salt air corrosion and constant vibration. Pipeline compressor stations span thousands of miles with minimal on-site personnel. Refineries run continuous processes where a single hour of unplanned downtime costs more than most PLC systems do in a lifetime.

PLCs are the workhorse controllers in this industry, selected not for their computational power but for their reliability, redundancy, and certifications. Understanding how PLCs function across the oil and gas value chain reveals why the industry makes specific automation choices.

Upstream: Drilling and Production

Upstream operations extract crude oil and natural gas from subsurface reservoirs. PLCs control the drilling process itself, as well as the surface production facilities that separate oil, gas, and water.

Drilling Control

Modern drilling rigs run PLC-controlled top drives, mud pump systems, and pipe handling robots. The PLC's role in drilling centers on:

· Managing mud circulation rates and pressure to prevent blowouts

· Controlling top drive rotation speed and torque during casing runs

· Monitoring weight on bit and detecting drill string sticking

· Coordinating pipe makeup and breakout sequences

Drilling PLCs must handle high vibration, salt air environments, and the need for real-time safety responses. Safety PLCs (Allen Bradley GuardLogix, Siemens F-CPU) are mandatory on most rigs to meet regulatory requirements.

Artificial Lift Systems

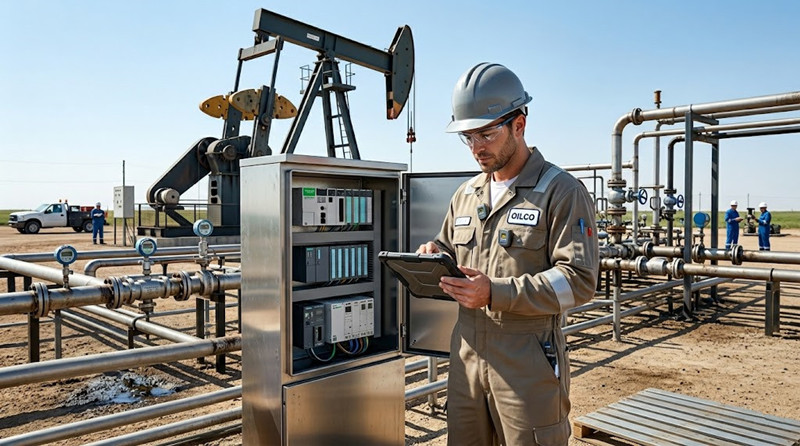

Many reservoirs require artificial lift to produce at economic rates. PLCs control electrical submersible pumps (ESPs), rod pumps (pumpjack units), and gas lift systems.

· ESP control: PLCs vary pump speed via VFD commands based on wellhead pressure and production rate signals

· Rod pump optimization: PLCs analyze dynacard data (load and position curves) to detect pump fillage problems and optimize stroking speed

· Gas lift monitoring: PLCs control gas lift valve sequencing to maximize production from gas-lifted wells

Offshore Platform Automation

Offshore platforms host some of the most complex PLC installations in any industry. Space constraints, weight limits, and the cost of helicopter transport for personnel demand highly reliable, self-contained automation.

Common offshore PLC applications:

· Platform process control (separator trains, dehydration, compression)

· Fire and gas detection systems

· Emergency shutdown (ESD) systems

· HVAC control for hazardous areas

· Ballast control for floating production storage and offloading (FPSO) vessels

Offshore automation demands ATEX/IECEx or similar hazardous area certifications for all field devices and many PLC modules.

Midstream: Pipeline and Transportation

Midstream operations move oil and gas from production fields to refineries and distribution points. This involves pipelines, compressor stations, storage terminals, and truck/rail loading facilities.

Pipeline SCADA and PLC Control

Long-distance pipelines rely on PLC-based remote terminal units (RTUs) at each pump/compressor station. The PLC monitors:

· Suction and discharge pressures at each station

· Flow rates through custody transfer meters

· Valve positions (manual, auto, or SCADA-commanded)

· Pump/compressor status and vibration data

PLCs at each station communicate with a central SCADA master via satellite, microwave, or fiber optic links. The SCADA system issues setpoint commands—pump speed, discharge pressure limits—and the PLC executes local control.

Pipeline PLCs commonly use:

· Schneider Electric Quantum or M580 for large pipeline operators

· Siemens S7-400H for hot-redundant configurations at critical stations

· ABB 800xA DCS at major terminal and storage facilities

Compressor Station Control

Gas pipelines use compressor units (gas turbines or electric motors) to maintain pipeline pressure. PLCs manage:

· Compressor startup/shutdown sequencing

· Anti-surge control to prevent compressor damage

· Station inlet/outlet pressure control

· Fuel gas system management

· Emissions monitoring and reporting

Anti-surge control is particularly demanding—it requires PLC response faster than the main scan cycle, typically handled via dedicated interrupt routines or dedicated hardware.

Pipeline Leak Detection

While leak detection systems run on SCADA or specialized servers, PLCs feed the critical data:

· Pressure and flow measurements at each segment

· Valve status (any unplanned closure triggers leak evaluation)

· Batch tracking for multi-product pipelines (diesel, gasoline, jet fuel in sequence)

Downstream: Refining and Petrochemical

Downstream operations convert crude oil and natural gas into usable products. Refineries and petrochemical plants run continuous processes where tight temperature, pressure, and composition control directly affect yield and safety.

Distillation Unit Control

The crude distillation unit (CDU) separates crude oil into fractions based on boiling points. PLCs typically handle:

· Furnace temperature control (multiple heating zones)

· Column level and pressure control

· Product draw rates and quality indicators

· Preflash column and main fractionation control

For tight regulatory control, refineries often use a DCS rather than standalone PLCs for primary process loops, with PLCs handling discrete functions like pump control and valve sequencing.

Catalytic Cracking Unit (FCCU)

Fluid catalytic cracking breaks heavy hydrocarbon molecules into lighter, more valuable products. This process demands precise coordination:

· Air blower control for fluidization

· Catalyst circulation rate

· Reactor temperature monitoring and override

· Slurry and gasoline draw control

FCCU PLCs must handle extremely harsh conditions—high temperatures, abrasive catalyst particles, and continuous operation with minimal turnaround access.

Tank Farm Automation

Refinery tank farms store crude, intermediates, and refined products. PLCs control:

· Tank gauging (radar or servo level transmitters)

· In-tank agitators and heating coils

· Receiving and dispatch pump control

· Vapor recovery system monitoring

Tank farm PLCs interface with load-rack computers for truck loading validation and with pipeline dispatch systems for custody transfer.

Why Oil and Gas Chooses Specific PLC Platforms

The oil and gas industry's PLC preferences differ from discrete manufacturing:

Reliability over features: Oil and gas operators prioritize proven reliability over cutting-edge capabilities. A platform that has operated successfully in offshore environments for 15 years is preferred over a newer platform with marginal feature advantages.

Redundancy: Critical applications— ESD systems, platform power management, fire and gas—almost always run on redundant (dual) PLC configurations.

Hazardous area certification: Every field device and many PLC modules require hazardous area certifications (ATEX, IECEx, UL classified for Class 1 Div 1/2). This restricts the available hardware ecosystem significantly.

Long lifecycle support: Refineries operate for 30-40 years. Automation investments must be supportable across decades, including during plant turnarounds when major upgrades occur.

Conclusion

PLCs in oil and gas are chosen for certification, redundancy, and proven reliability rather than raw performance metrics. Understanding where PLCs sit in the upstream-midstream-downstream framework helps engineers specify the right platform for each application—and recognize why certain choices that seem overpriced in discrete manufacturing are entirely rational in process industries.

Frequently Asked Questions

Q: Why does the oil and gas industry still use older PLC platforms?

A: Certification cycles in oil and gas are long—typically 3-7 years from platform selection to first deployment. Once certified for hazardous areas and approved by operations, changing platforms requires a full re-certification process. This creates strong inertia toward established platforms.

Q: What is the difference between a PLC and an RTU in pipeline applications?

A: An RTU (Remote Terminal Unit) is a specialized PLC variant optimized for SCADA integration—typically better for long-distance telemetry, lower power consumption, and wider environmental operating ranges. Many modern RTUs are essentially ruggedized PLCs running SCADA protocols like DNP3 or IEC 61850.

Q: Why is anti-surge control so critical for compressor PLCs?

A: Compressor surge is a rapid flow reversal that can destroy impellers in seconds. Anti-surge requires response times faster than a standard PLC scan—typically handled by dedicated firmware or high-priority interrupt routines. Failure to respond fast enough results in catastrophic equipment damage.

Q: What hazardous area certifications do offshore PLC modules require?

A: Offshore platforms typically require ATEX/IECEx Zone 1 or Zone 2 certification for electronic equipment. In the US, UL Class 1 Division 1 or Division 2 certifications apply. Every module installed in a hazardous area—input cards, output cards, communication modules—must carry the appropriate certification.

Q: How do refineries handle PLC cybersecurity?

A: Refineries increasingly implement IEC 62443 industrial cybersecurity standards. PLCs are isolated from business networks via DMZs, and industrial firewalls control SCADA access. Many operators are now implementing deep packet inspection on PLC communication to detect unauthorized commands.
